CRL 66" Matte Black Shower Door Header Kit – Sliding Glass Hardware

• Fits 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass

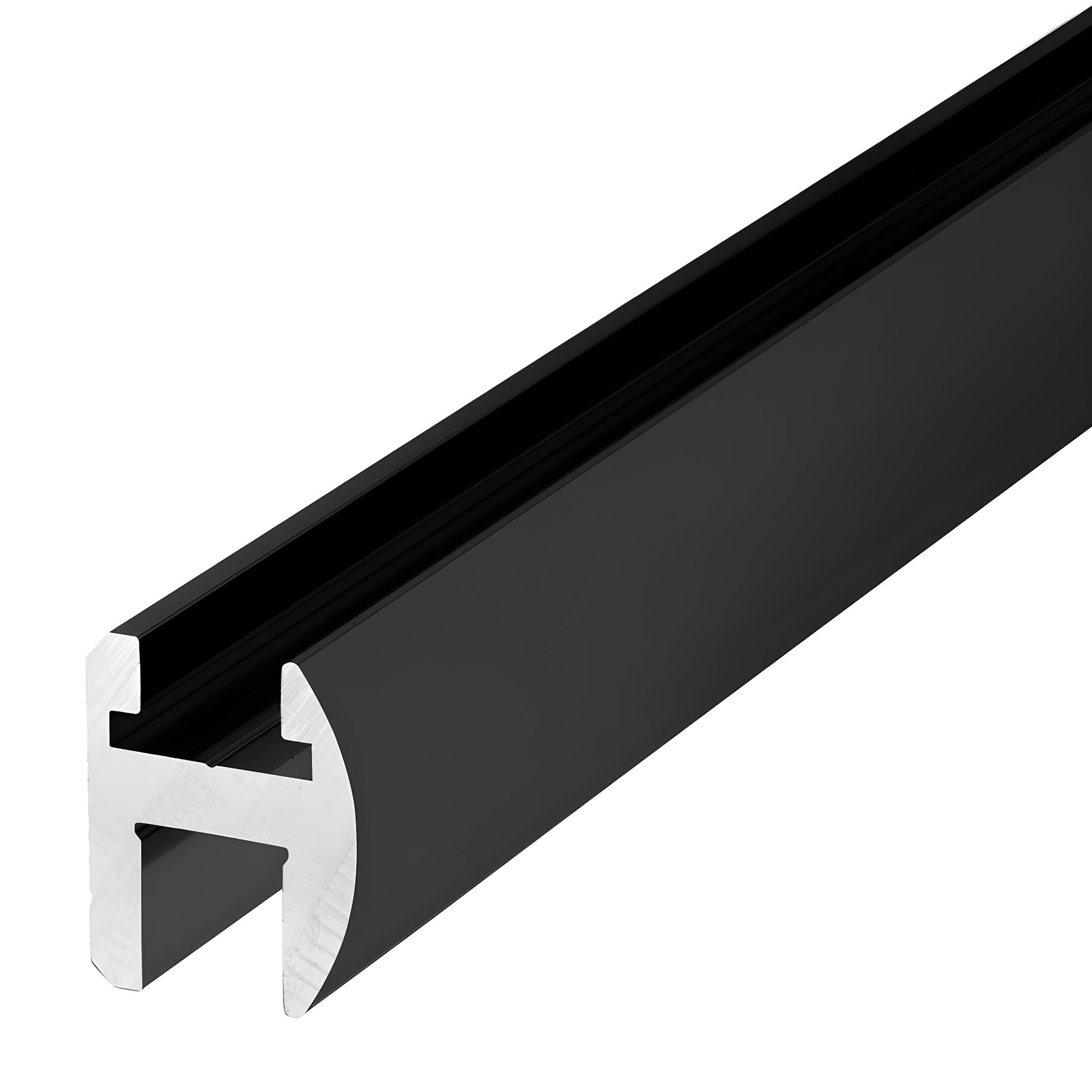

• One 66" (1.67 m), 98" (2.49 m), or 144" (3.66 m) piece of aluminum header extrusion
• One 36" (914 mm) piece of aluminum snap-in filler for door pocket
• Pack of two BWB2 brass wall mounting brackets (included)
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (vinyl for 1/2" glass not required)

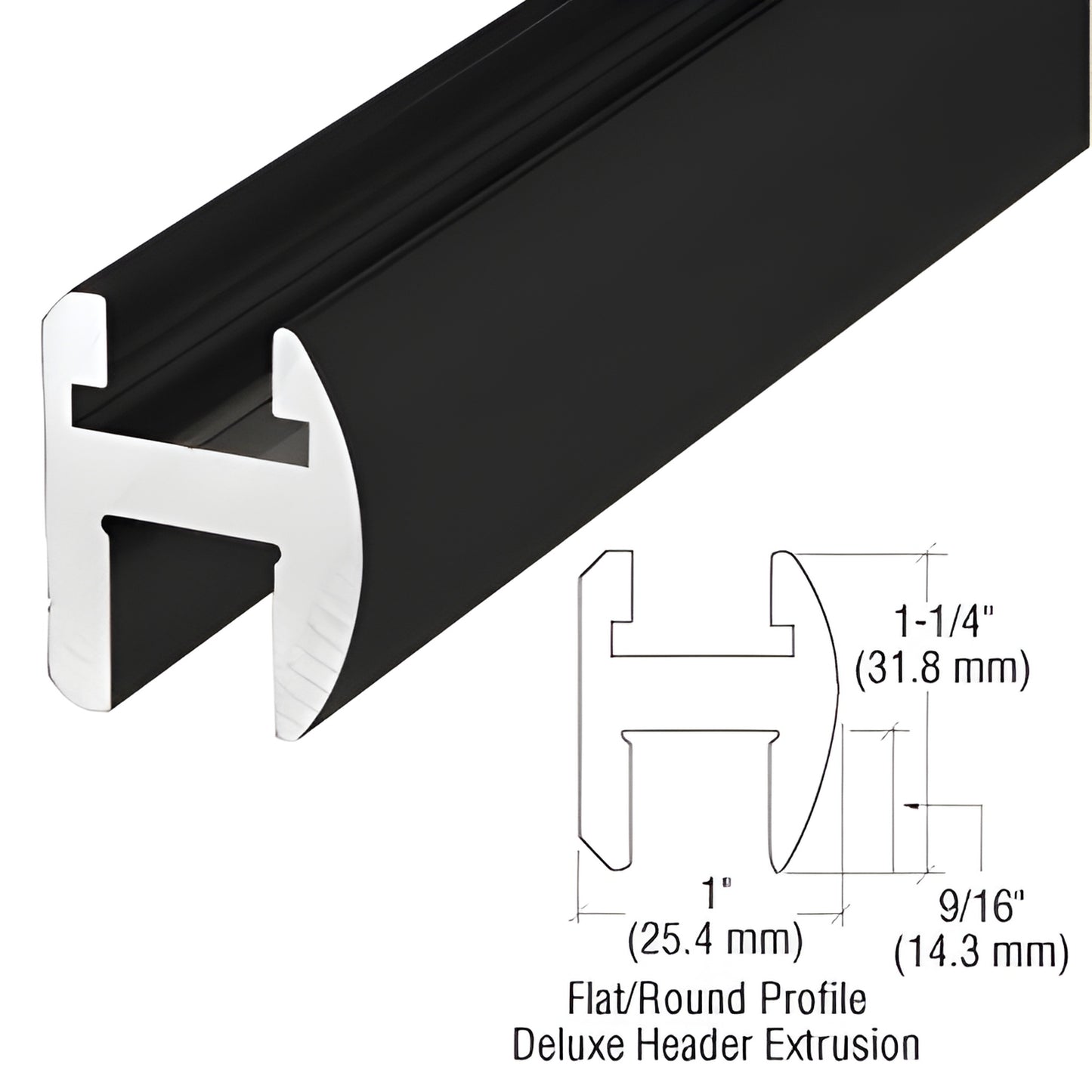

CRL Deluxe Header Kit (SKU: SDH660MBL) provides sturdy support and added safety for glass panels that do not reach the ceiling. Designed for in-house fabrication, the kit includes a narrow 1-1/4" (32 mm) face header extrusion to minimize visible sight lines—an ideal choice for frameless glass shower doors and custom glass partitions.

Key differentiators:

• Choice of 66", 98", or 144" aluminum header extrusion lengths for flexible installation
• Brass wall mounting brackets included—durable finish and easy installation
• Snap-in filler and clear vinyl simplify fit for 5/16" and 3/8" glass applications
• Adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, or Shell hinges when used with top and bottom mount pivot hinges
• Optional accessories: 90° / 135° / adjustable corners, special adapter block for pivot hinge installations, and blank mounting bracket for non-90° wall terminations (sold separately)

Each deluxe header kit contains:

• Header extrusion (66", 98" or 144")
• 36" snap-in filler for door pocket
• Vinyl for 5/16" and 3/8" glass
• Pack of two BWB2 brass wall mounting brackets

Note: For use with 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately.
