CRL 72in Brushed Nickel Sliding Door Track Kit D603/D601 Nylon Wheels

• Available in three pre-cut lengths: 36", 48", and 72" (914 mm, 1.22 m, 1.83 m)
• Combination bottom track matches upper channel for smooth sliding operation
• Finishes: Satin Anodized and Brushed Nickel — ideal for modern sliding door hardware

CRL Deluxe Track Assembly — a smooth-working, reliable sliding door track assembly designed for easy installation and reduced material waste. Pre-cut extrusions save time on-site; the 'H' bar is cut for a 1-1/2" (38 mm) overlap. The combination lower channel matches the upper channel design for consistent performance.

CRL Cat. No. D332 end caps for the 'H' bar extrusion are sold separately. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately). A selection of CRL ratchet and plunger type locks is available to secure sliding doors.

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

General glass cutting guideline: Glass height = Opening height minus 1-3/8" (35 mm).

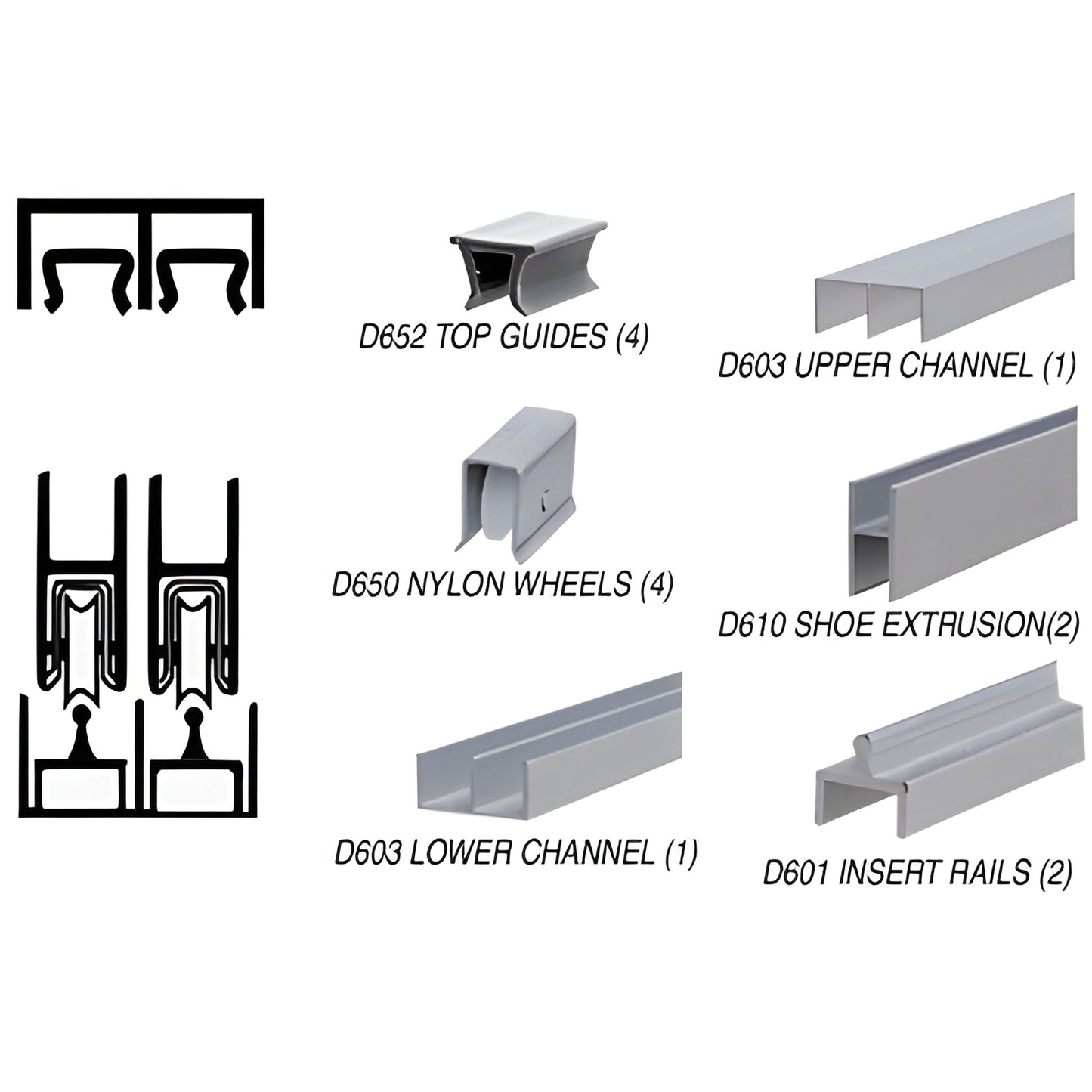

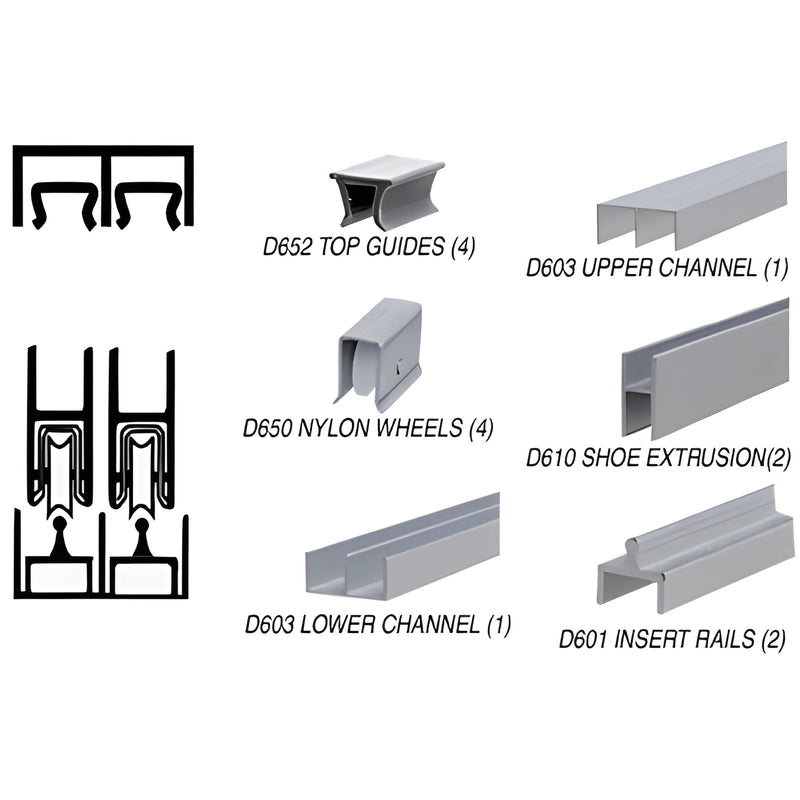

Components for D2301BN

D601 (x2)

D603 (x2)

D610 (x1)

D650 (x12)

D652 (x12)

D9650 (x1)

SKU reference: D2301BN72. Product images are representative; colors may vary by monitor. Most shipping weights are approximate—contact CRL Customer Service for verified weights before ordering if required.

Order the CRL Deluxe Track Assembly for dependable pre-cut sliding door hardware in satin anodized or brushed nickel finishes — shop now.
