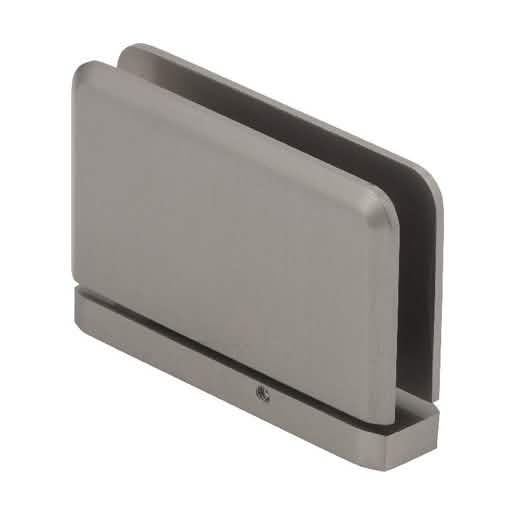

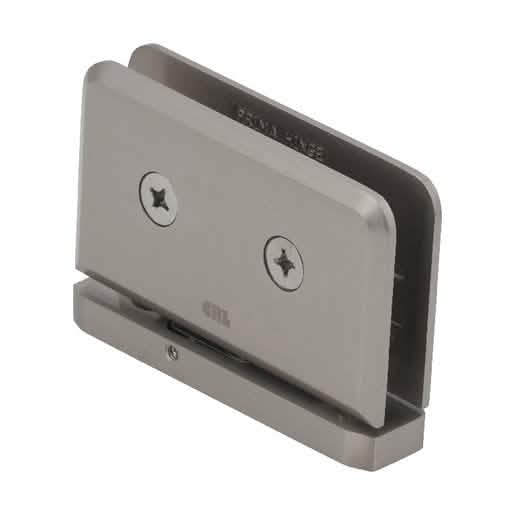

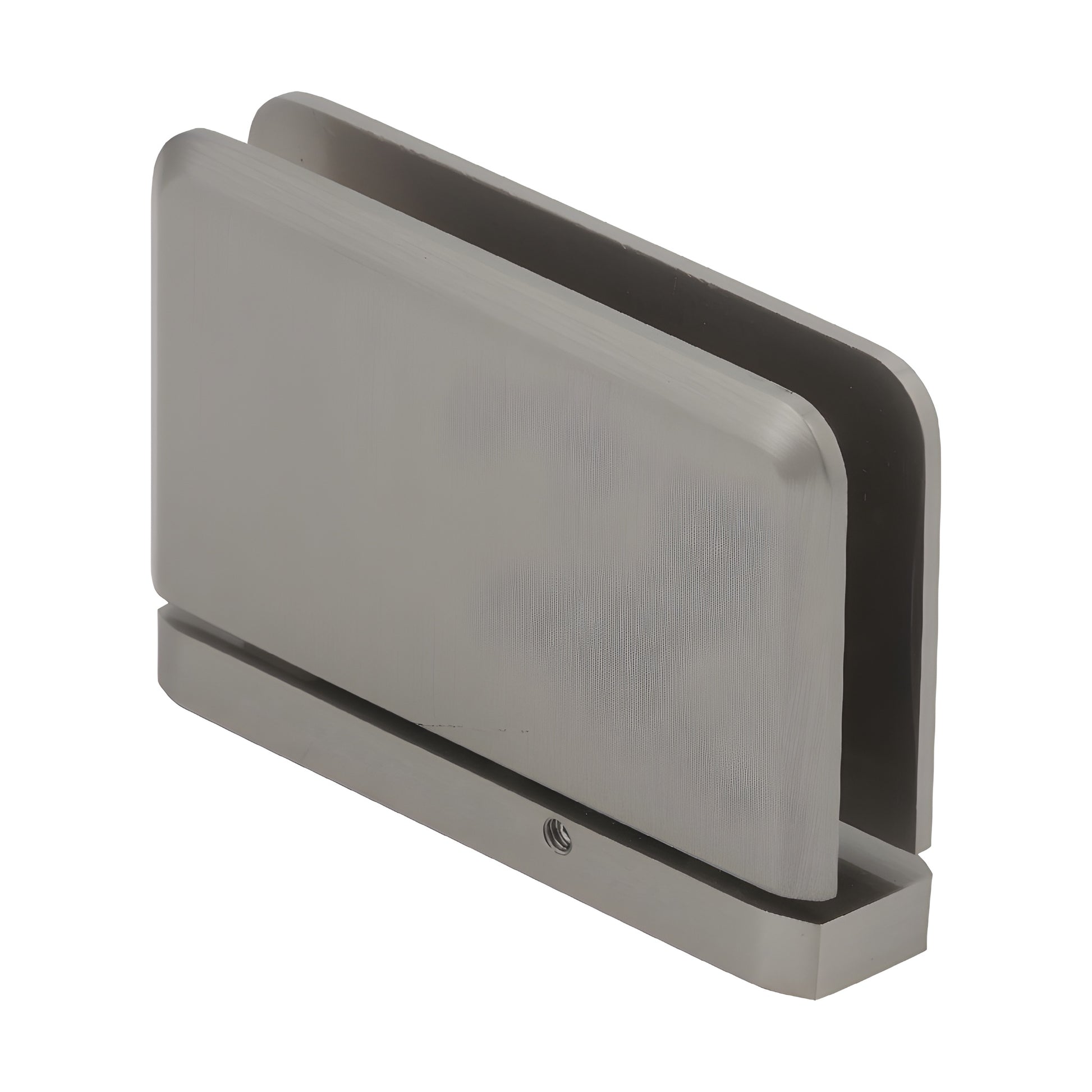

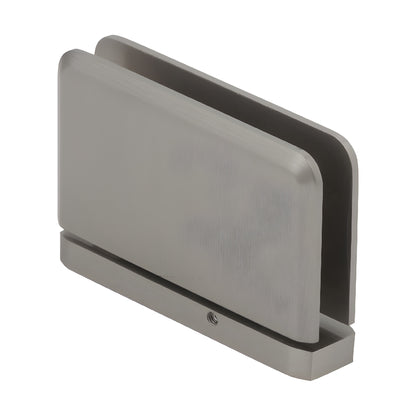

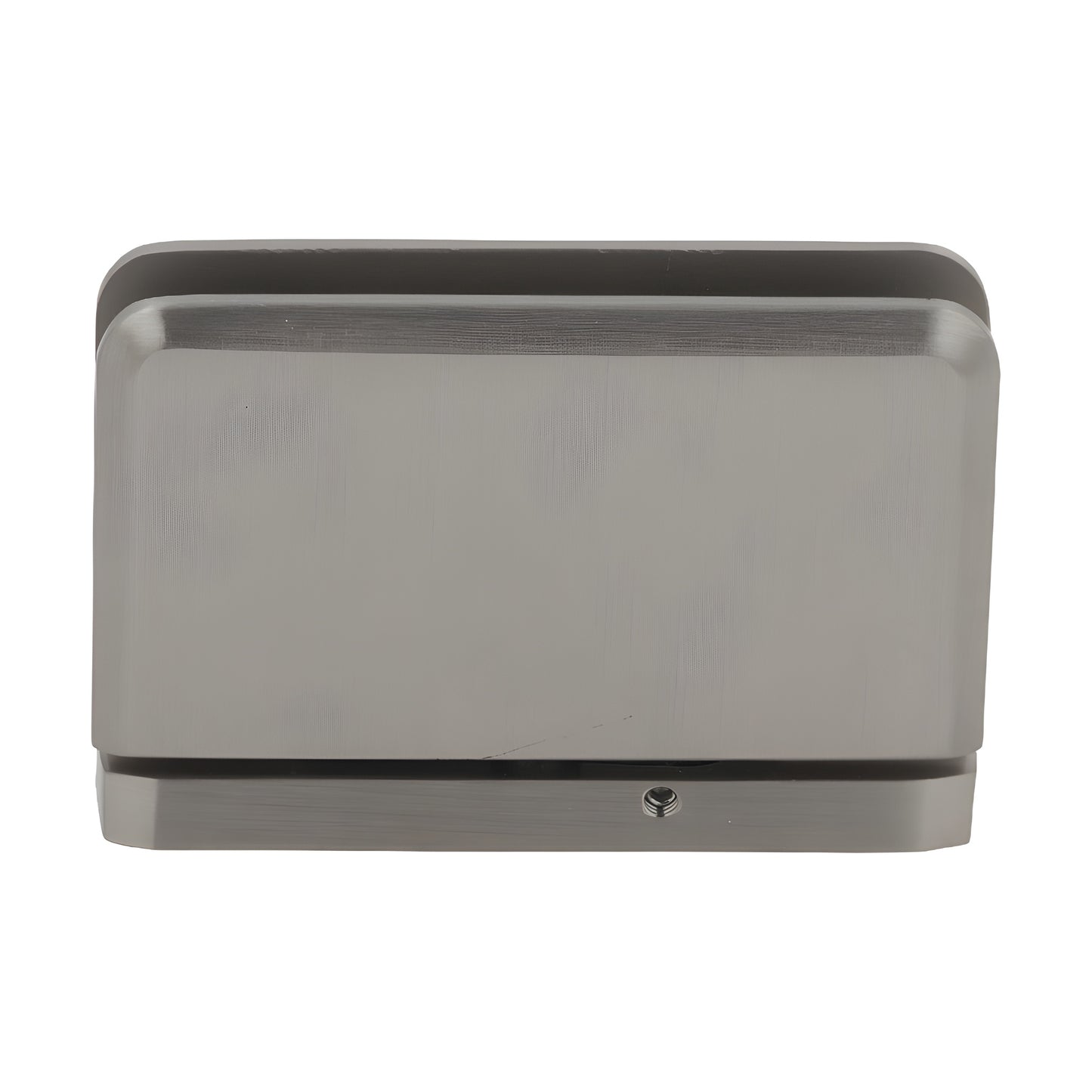

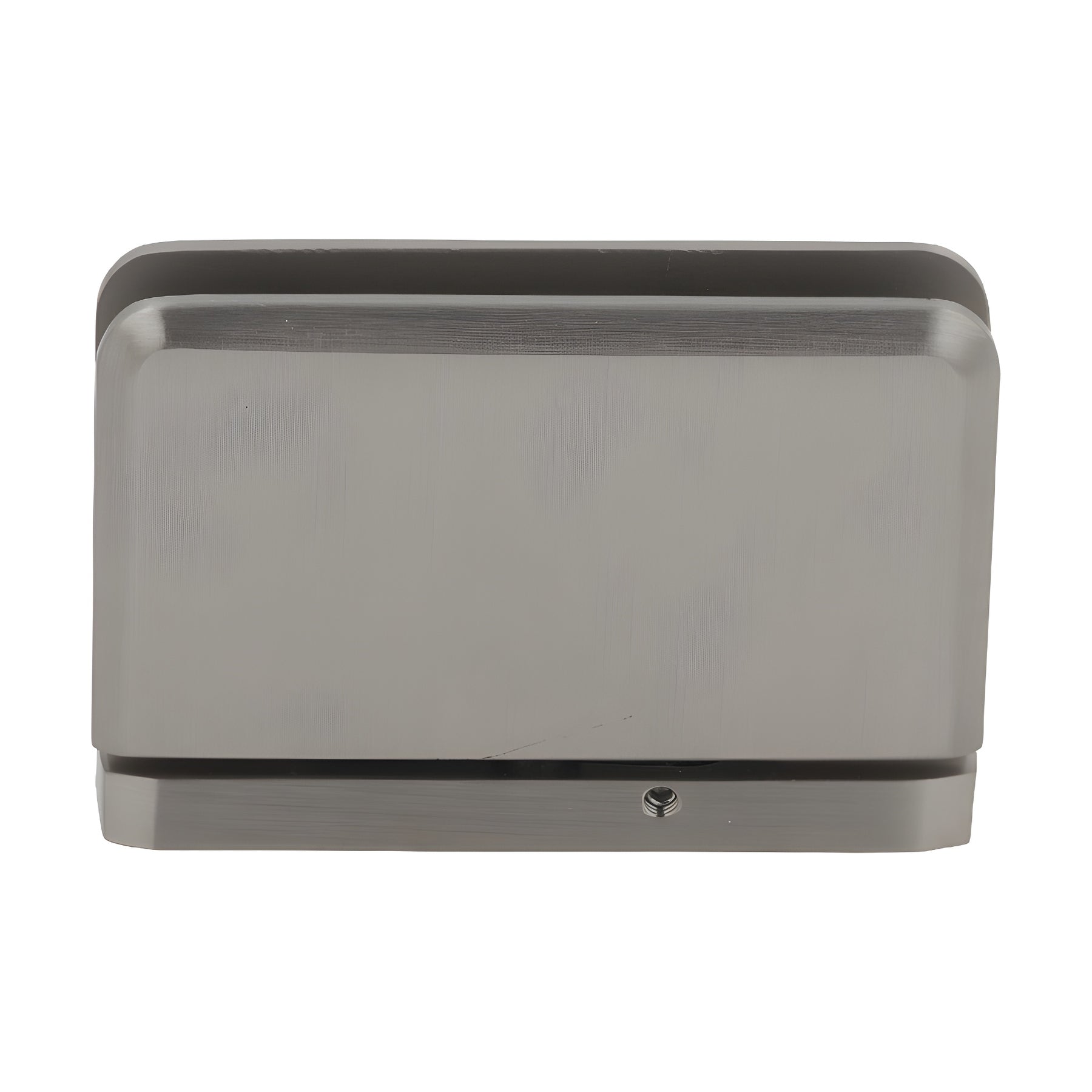

CRL Prima Adjustable Brushed Nickel Glass Shower Hinge

• Not Compatible with Header Systems
• Self-Centering when within 15° of closed position
• Three-Year Warranty
• Use Monolithic Tempered Glass

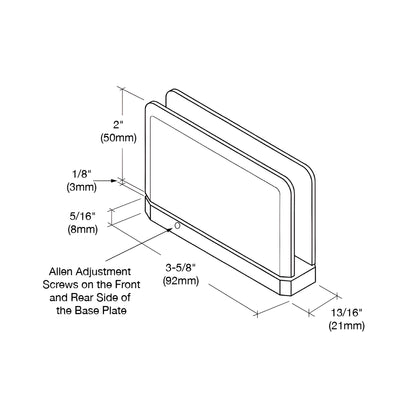

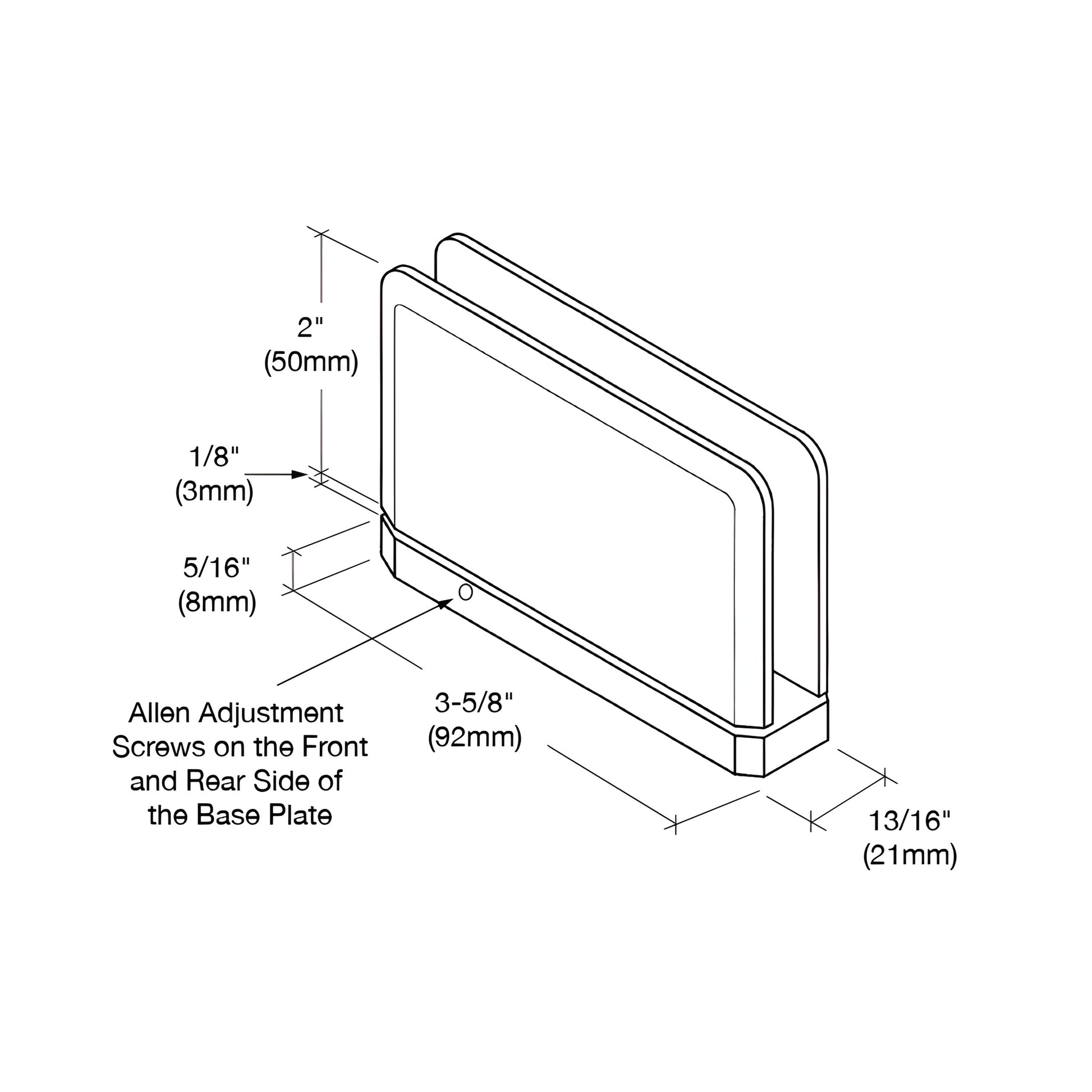

The CRL Adjustable Prima Series (SKU: PPH301BN) is a patented adjustable brass shower door hinge ideal for frameless and glass shower doors using monolithic tempered safety glass. This Prima Series hinge allows final alignment after installation with ±5° adjustment in and out. Loosen the small Allen screws on the front and rear of the base plate with the included 3 mm Allen wrench to position the door; tightening the screws locks the hinge so the door closes to the same position every time.

NOTE: Not compatible with header systems.

Performance: With two hinges installed on 5/16" to 3/8" glass (8–10 mm), the hinge supports up to 100 lbs (45 kg) per door and accommodates a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, 3 mm Allen wrench, and glass fabrication dimensions
Patent: Patented (Patent No. 5,297,313)

Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
