Product Details
- Not Compatible with Header Systems
- Self-Centering When within 15 Degree of Closed Position
- Use Monolithic Tempered Glass

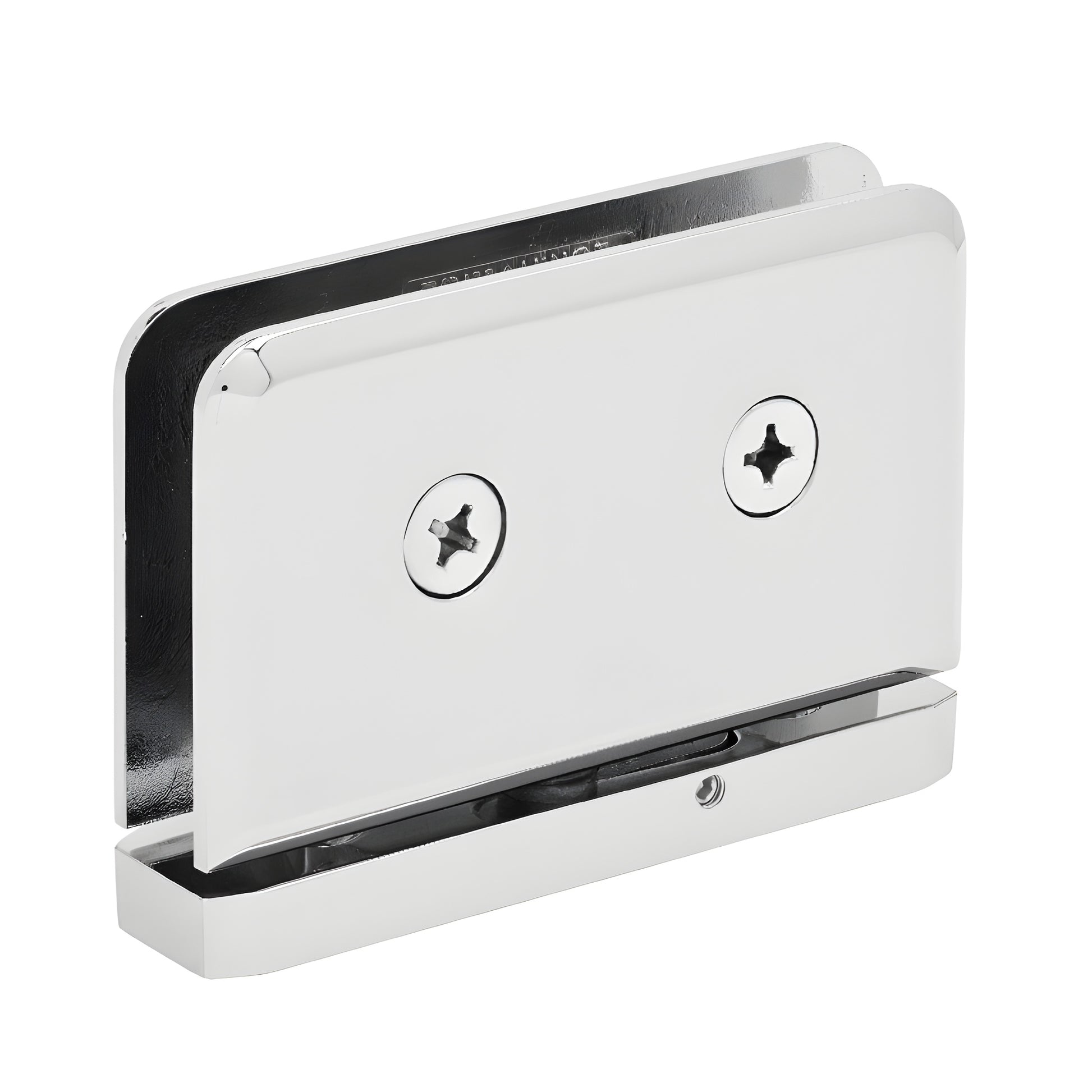

- Apply medium-strength threadlocker on cover plate screws

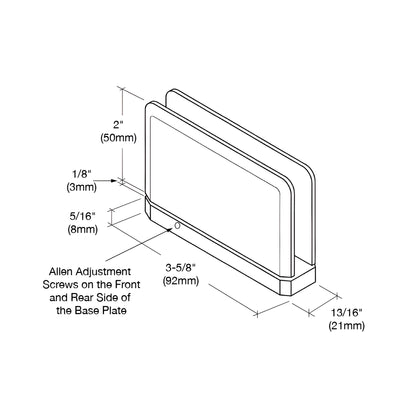

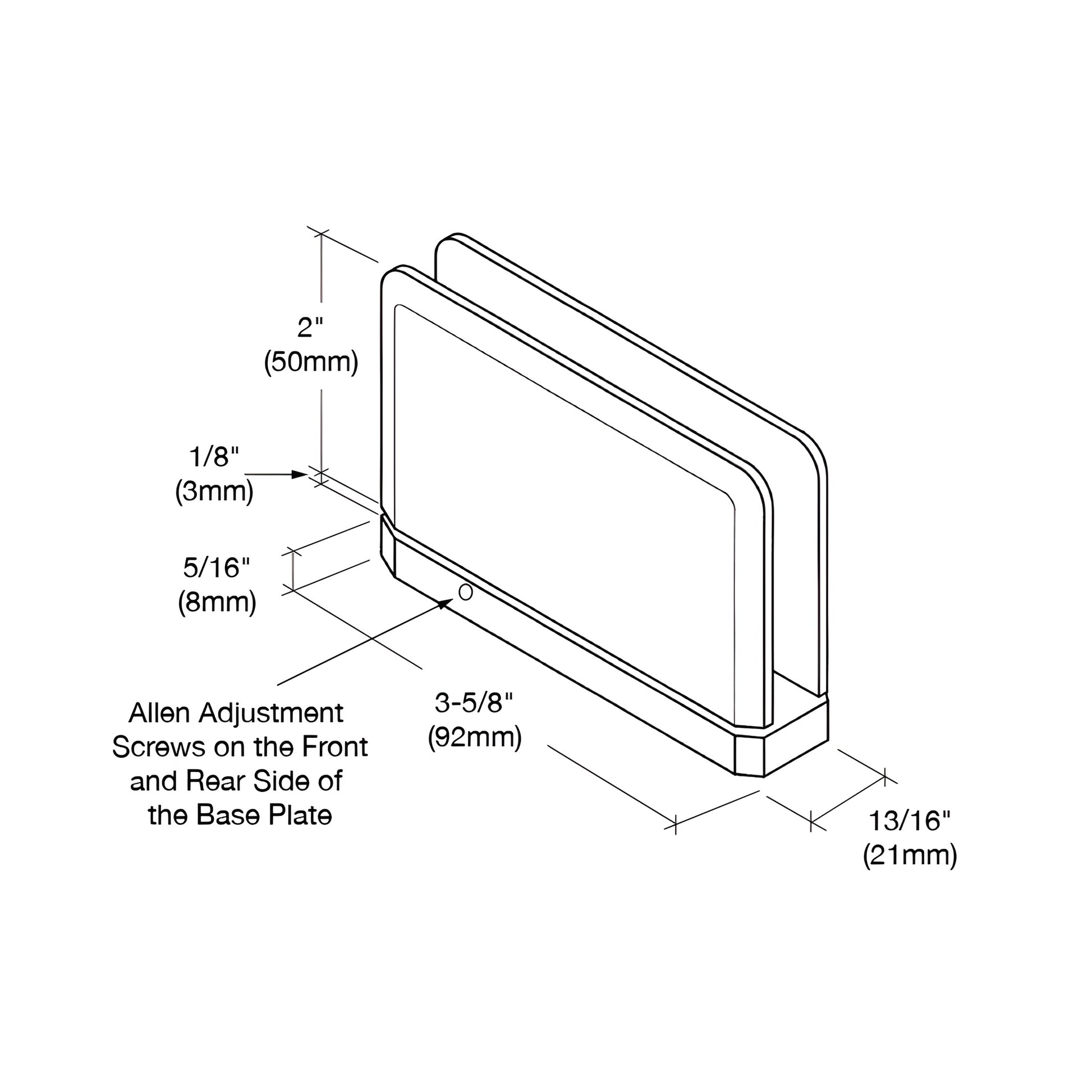

The CRL Adjustable Prima Series makes mounting top and bottom hinges easier than ever. Adjusting up to 5 degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time.
NOTE: Not compatible with Header Systems.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
