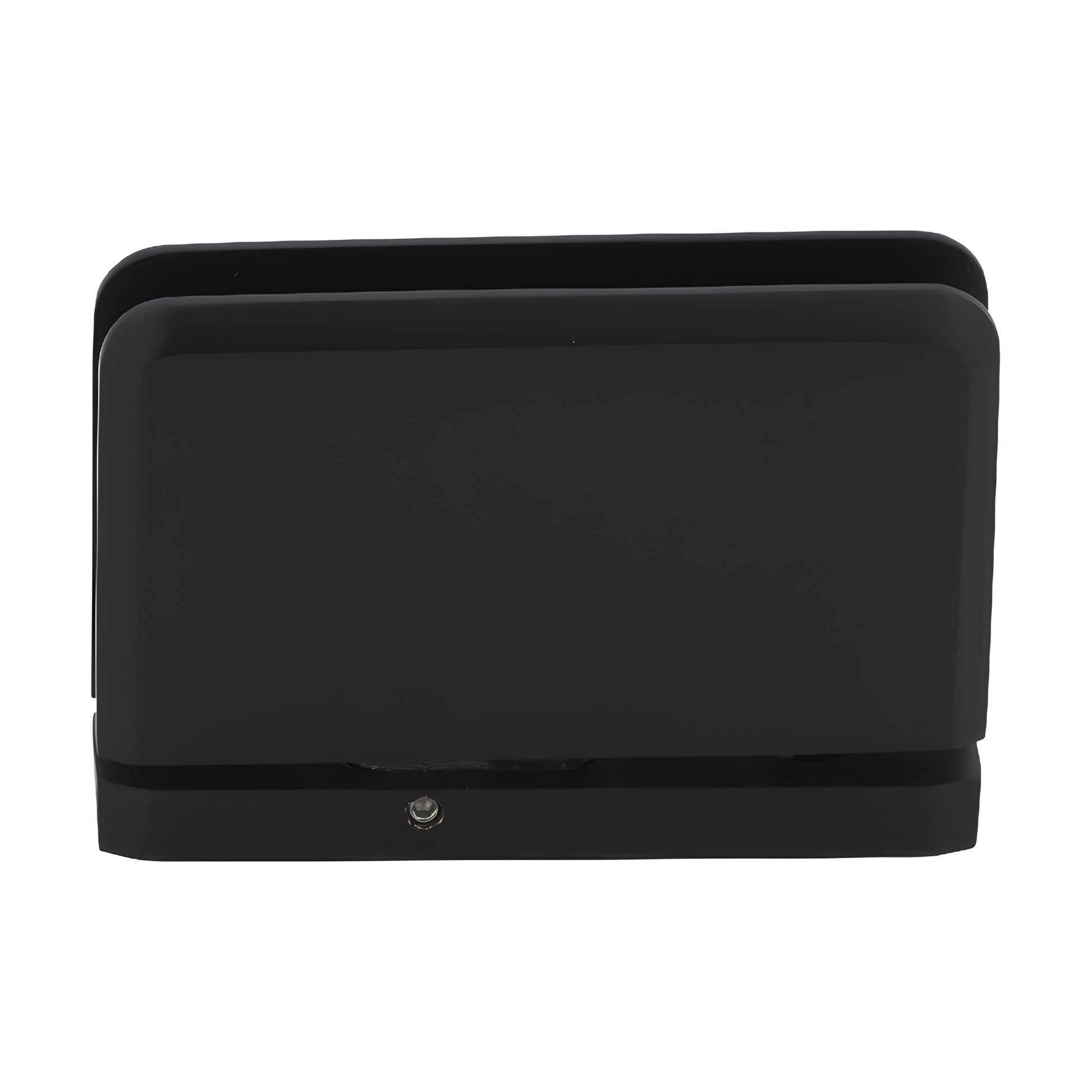

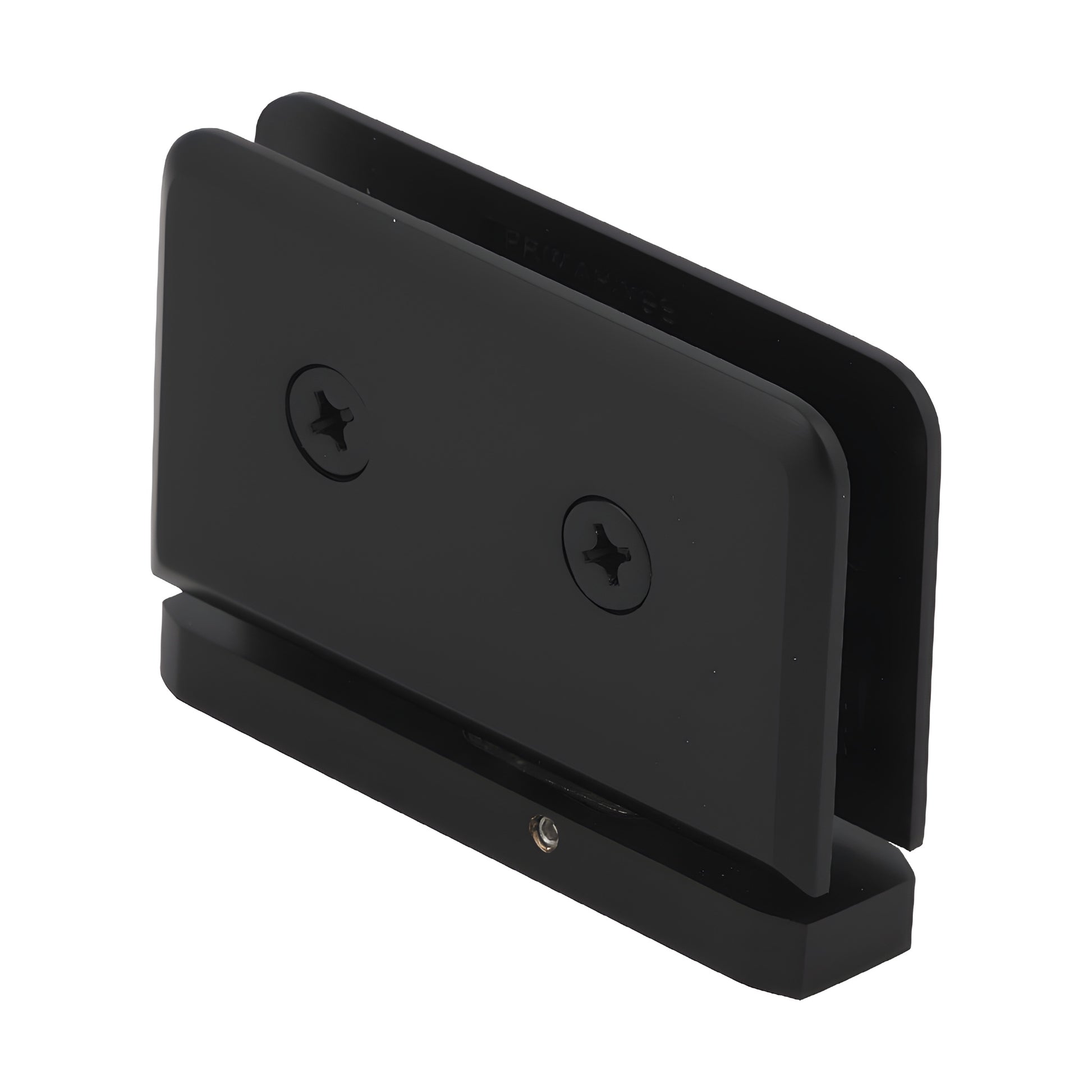

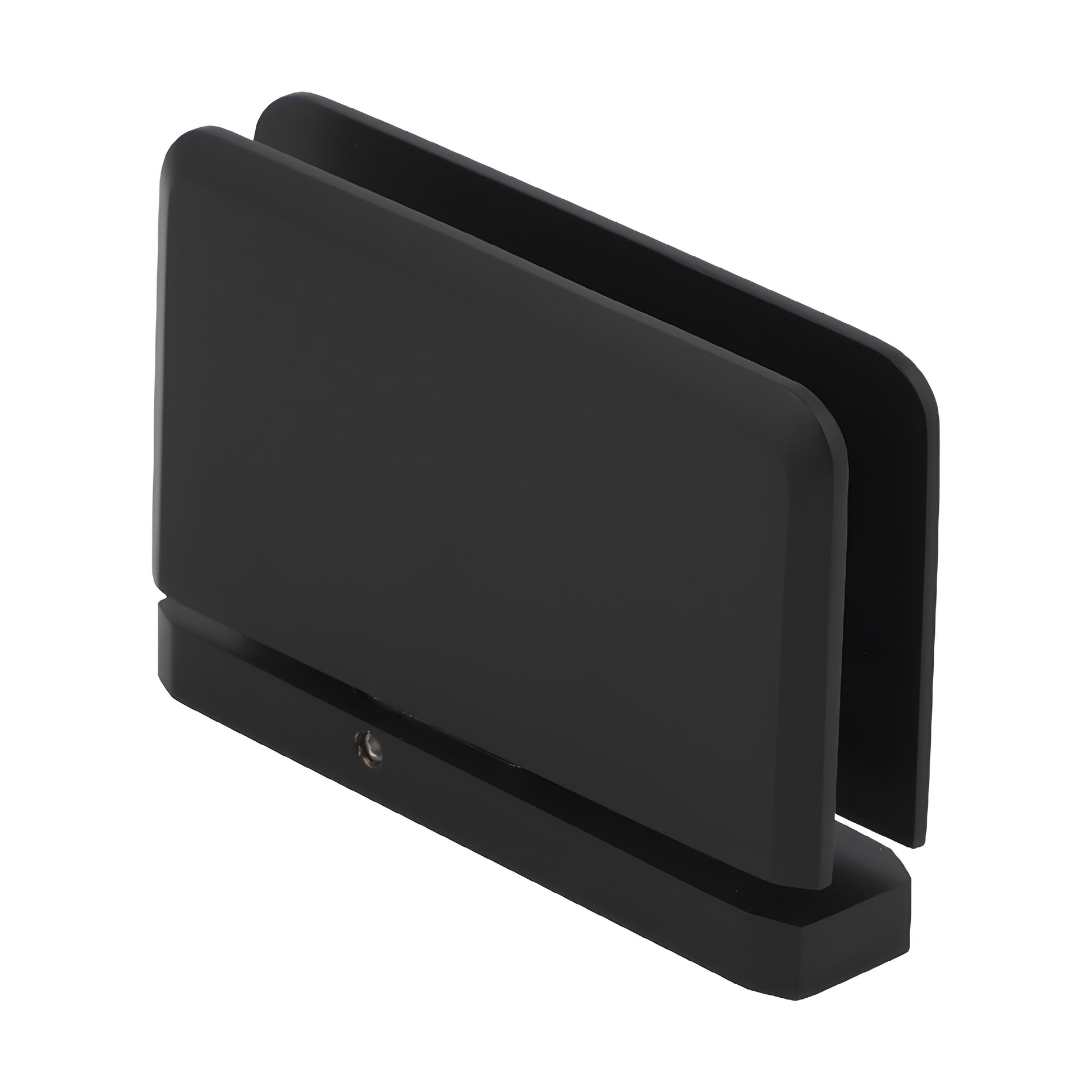

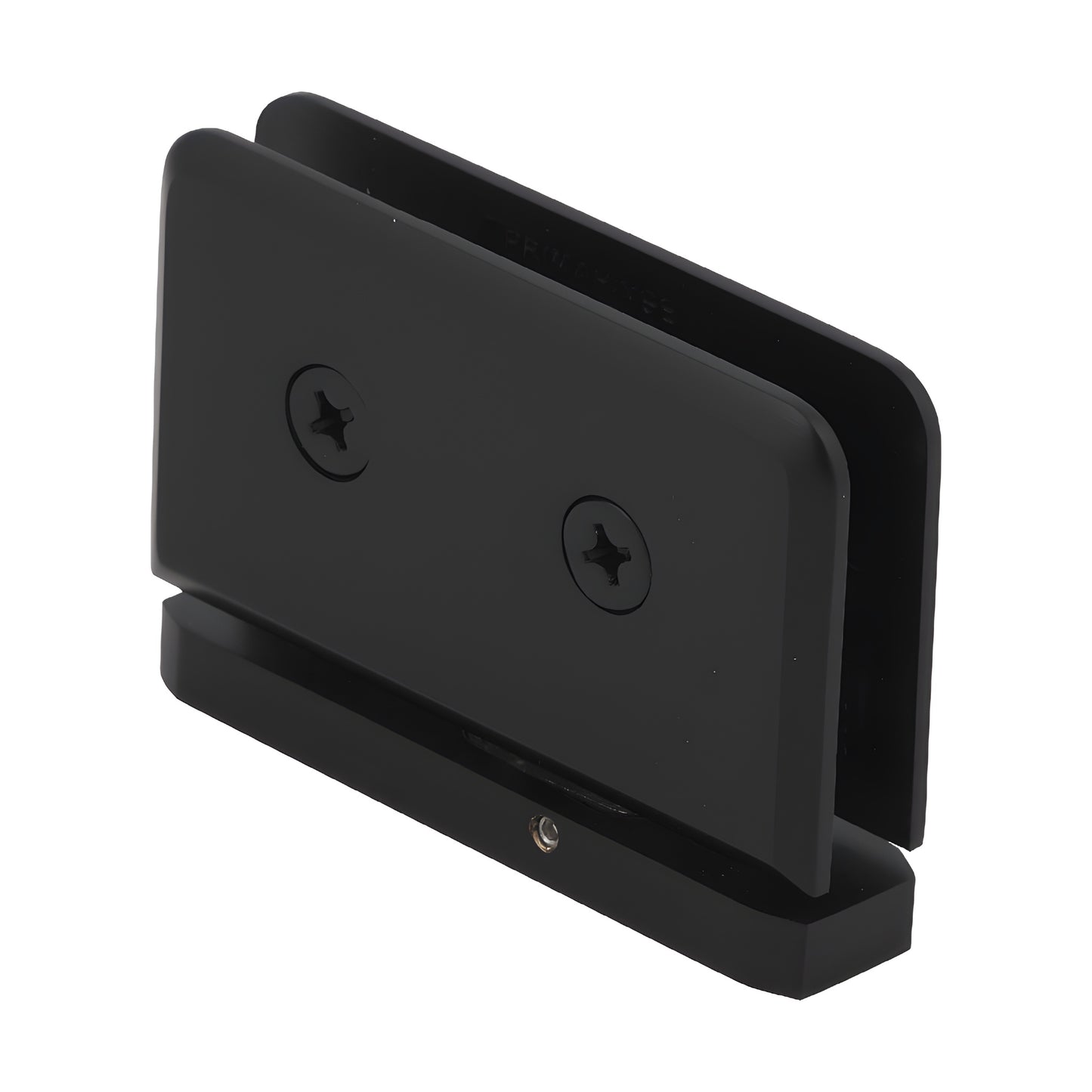

CRL Prima Series Oil-Rubbed Bronze Adjustable Door Hinge

• Not Compatible with Header Systems
• Self-centering when within 15° of closed position
• Three Year Warranty
• Use Monolithic Tempered Glass

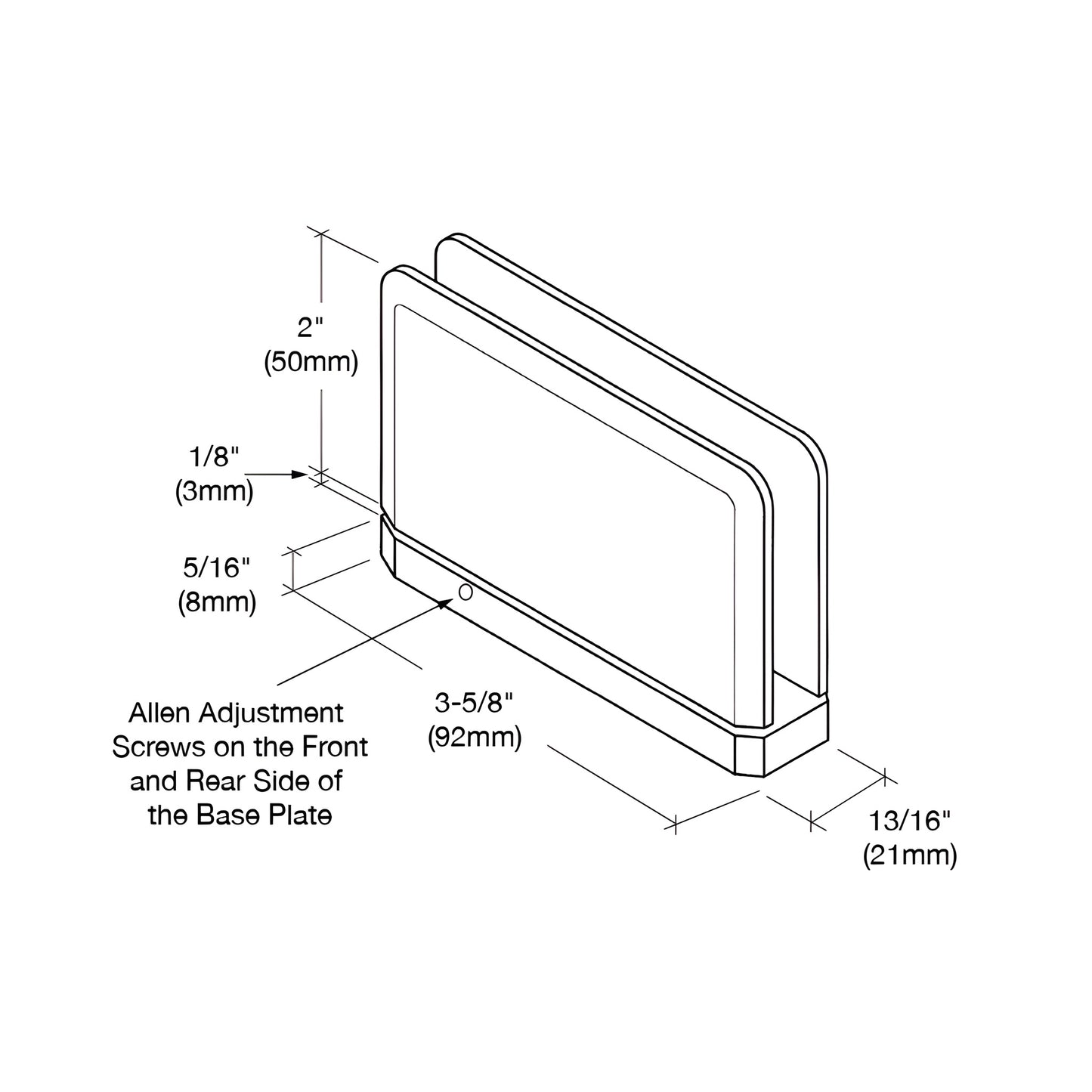

The CRL Adjustable Prima Series (SKU: PPH3010RB) is a patented, solid brass shower door hinge designed for easy top-and-bottom mounting and fine post‑installation alignment. The hinge allows up to 5° of adjustment in and out after initial installation using the included 3 mm Allen wrench—loosen the small Allen screws on the front and rear of the base plate, position the door, then tighten to lock the closing position. This makes it ideal for frameless tempered glass shower doors needing precise alignment and reliable repeatable closing.

NOTE: Not compatible with header systems.

Using two hinges with 5/16" to 3/8" (8–10 mm) tempered safety glass, the hinge supports up to 100 lbs (45 kg) per door with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, 3 mm Allen wrench, and glass fabrication dimensions
Patent: Patented (Patent No. 5,297,313)

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For uses outside this scope, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
