CRL 144 in Brushed Nickel Deluxe Shower Door Header Rail Kit

• Fits 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass panels
• One 66" (1.67 m), 98" (2.49 m) or 144" (3.66 m) piece of aluminum header extrusion
• One 36" (914 mm) piece of aluminum snap-in filler for door pocket
• One pack of two BWB2 brass wall mounting brackets
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not required for 1/2" / 12 mm glass)

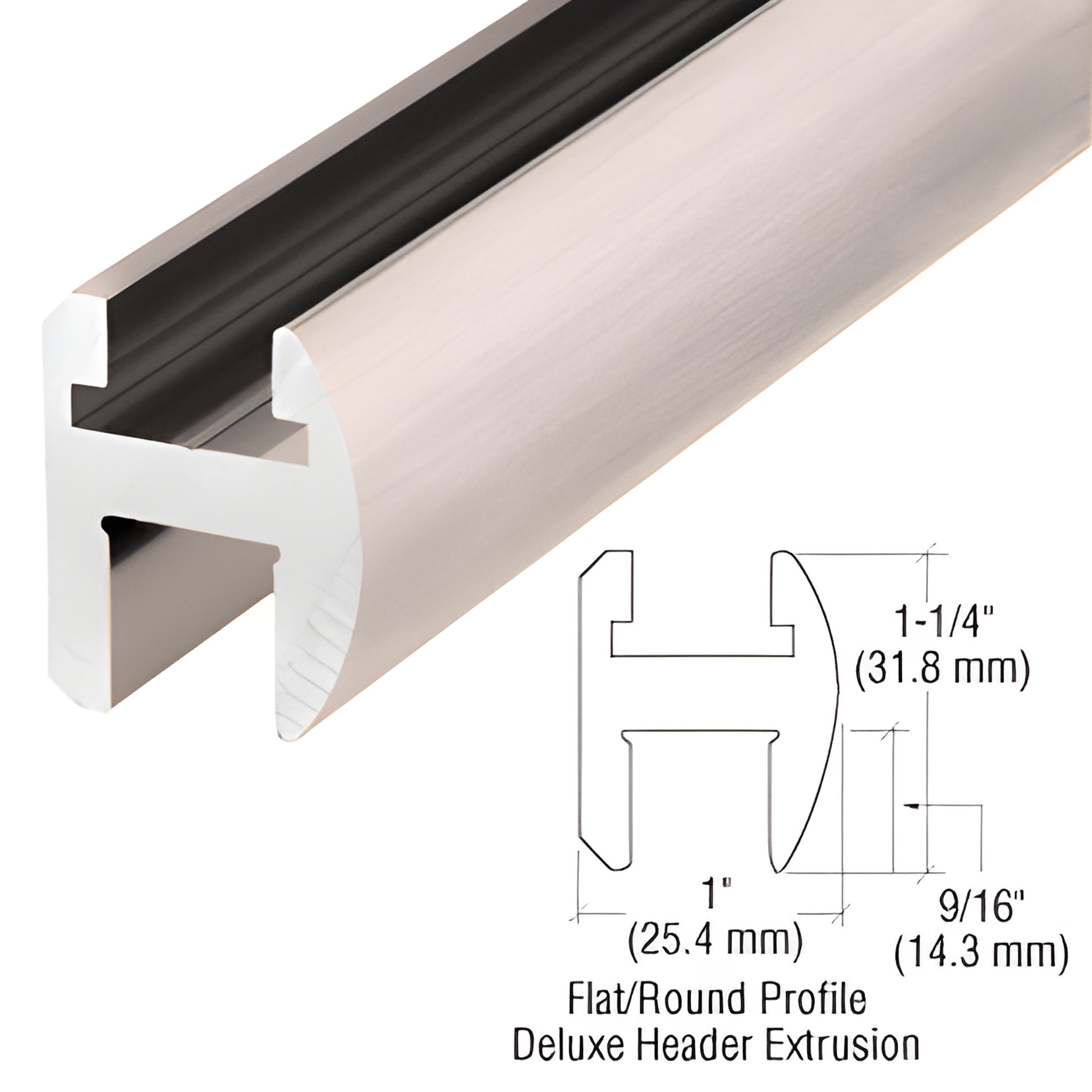

CRL Deluxe Header Kit (SKU: SDH144BN) provides rigid support and improved safety for glass panels that do not reach the ceiling. Designed for installers who perform in‑house fabrication, this deluxe header kit is available in 66", 98" or 144" lengths and features a narrow 1-1/4" (32 mm) face to minimize the visible sight line—an ideal choice for frameless glass shower headers and commercial glass door header applications.

Brass wall mounting brackets (BWB2) are included. 90° and 135° fixed corners, adjustable corners, and a special adapter block for pivot-hinge installations are available separately. A blank mounting bracket is offered for installations where the header does not meet the wall at 90° and the standard brackets cannot be used.

This header kit is compatible with Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, and Shell hinges when used with top-and-bottom mount pivot hinges.

EACH DELUXE HEADER KIT CONTAINS:

• One 66", 98" or 144" piece of aluminum header extrusion
• One 36" snap-in filler for door pocket
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (vinyl not required for 1/2" / 12 mm glass)
• Pack of two BWB2 brass wall mounting brackets

NOTE: For use with 1/4" (6 mm) glass order Cat. No. HV140 clear vinyl separately.

Key differentiators: narrow 1-1/4" sight line,
