CRL Brushed Nickel Sliding Door Track D609/D603 w/ Ball Bearings

• D2300 Series
• 12' (3.66 m) Deluxe Rolling Track Assembly
• Includes D649 ball bearing wheels (x12) for smooth, quiet operation
• Ideal for commercial and residential sliding glass doors
• Quick, easy installation — installer-friendly design
• Available in up to six stock finishes, including new Brushed Nickel
• SKU: D2300BNBB

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies offer three upper track extrusion options to match your aesthetic and performance needs. Built for high-frequency use, these sliding door track assemblies deliver years of reliable service with low maintenance. Differentiators include D649 ball bearing wheels for smooth operation, multiple finish choices (including Brushed Nickel), and compatibility with CRL ratchet and plunger locks for secure closure. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

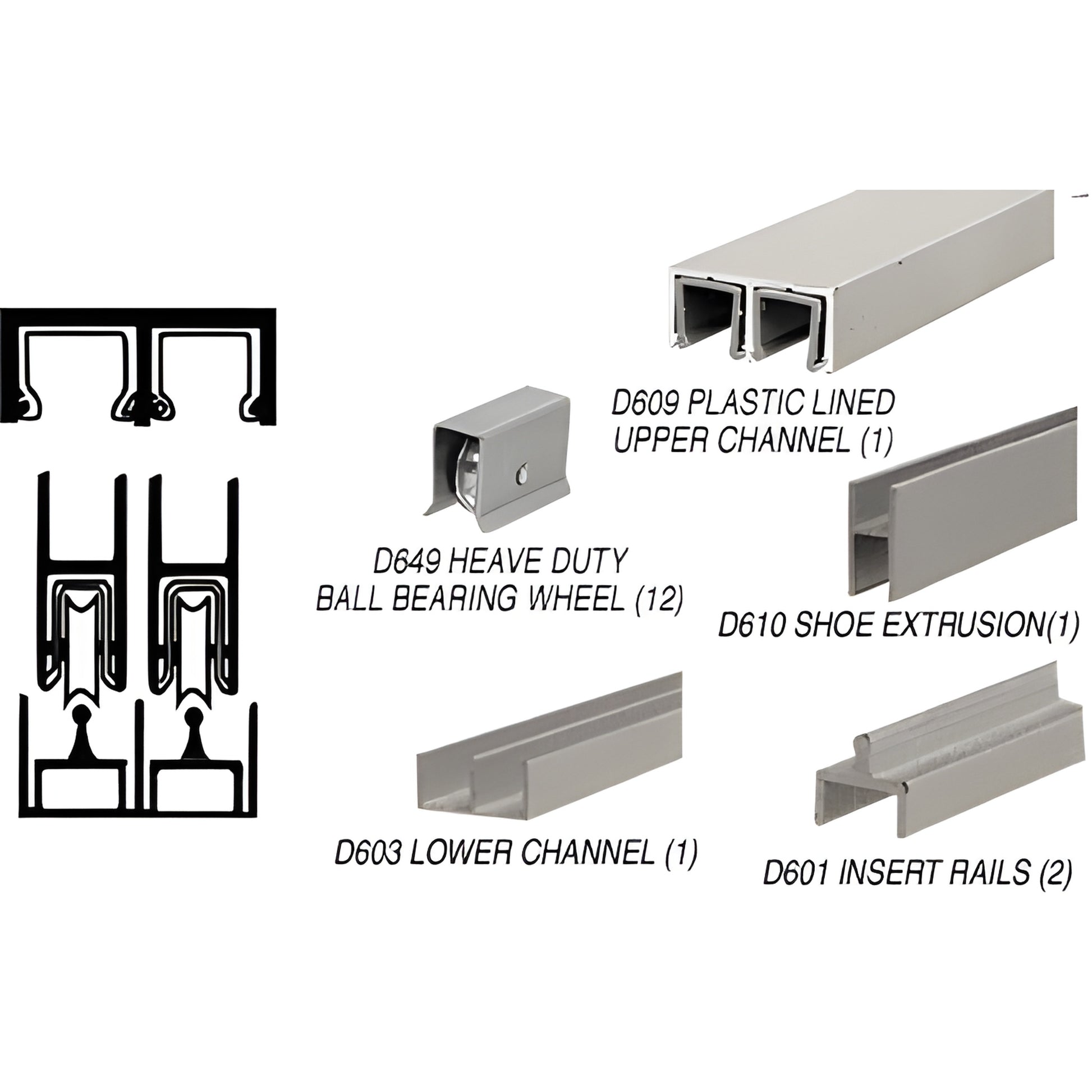

Components for D2300BNBB

D601 (x2)
D603 (x1)
D609 (x1)
D610 (x1)
D649 (x12)
D9650 (x1)

Installation & sizing guidance
If you need a very tight fit, measure and calculate your own dimensions. The following typical glass-height formulas are provided as guidelines:
D2200 Series: Glass Height = Opening Minus 1-5/16"
D2203 Series: Glass Height = Opening Minus 1-1/8"
D2204 Series: Glass Height = Opening Minus 1-1/8"
D2300 Series: Glass Height = Opening Minus 1-3/8"
D2301 Series: Glass Height = Opening Minus 1-3/8"
D2303 Series: Glass Height = Opening Minus 1-3/8"
D2305 Series: Glass Height = Opening Minus 1-3/8"
D2306 Series: Glass Height = Opening Minus 1-5/8"
D2307 Series: Glass Height = Opening Minus 1-5/8"

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment. Dimensions shown are guideline dimensions satisfactory to most installers.
