CRL Brushed Nickel Glass Clamp Double Set-Screw 1/4-5/16"
CRL Brushed Nickel Glass Clamp Double Set-Screw 1/4-5/16"
Regular price
$13.80 CAD
Regular price
Sale price
$13.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH35
Shipping Weight: 0.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

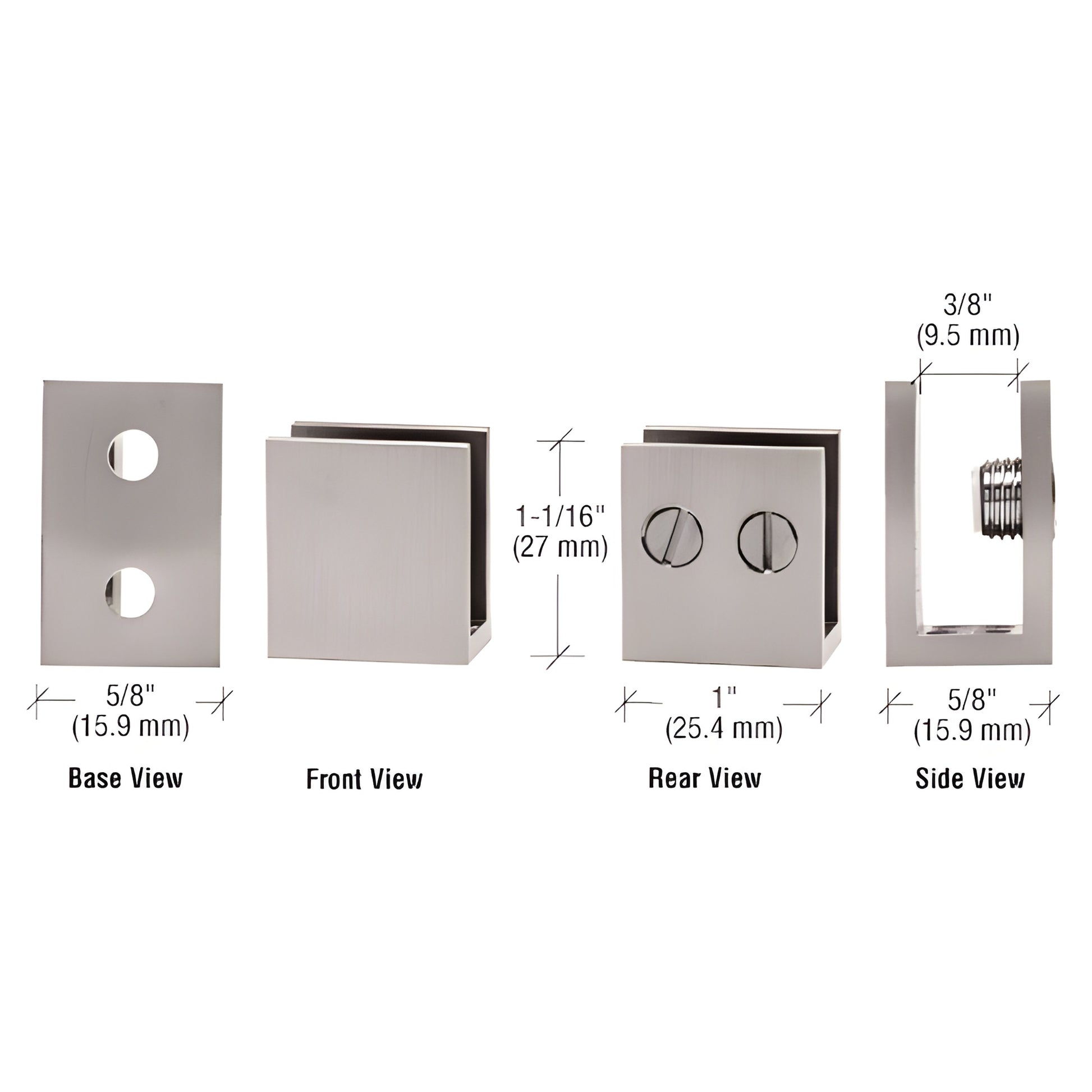

Description
Finish/Color
Brushed Nickel
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-1/16 in. (27 mm)
Length
1 in. (25.4 mm)
Material
Brass
Width
5/8 in. (15.9 mm)
Overview
- Double set screw glass clamp for 1/4" to 5/16" (6 to 8 mm) glass
- Solid brass construction with plastic-tipped set screws for larger panels
- No-drill installation — mounts glass without drilling holes
CRL Double Set Screw Glass Clamps are designed to mount glass virtually anywhere. With double plastic-tipped set screws, this solid brass clamp provides the strength needed for railing panels, office partitions, shelving, and display signage. Ideal for flush glazing and connecting panels in railing systems. One clamp per pack.
These versatile glass clamps install without drilling glass and are recommended to be fastened into wall studs or wood substrate using CRL Cat. No. 8X112FHPSMS flat head Phillips screws. Use with tempered glass for safety and optimal performance.
Product Warning:
CRL recommends the use of tempered glass with this product.
Need this clamp for a project? Order now or contact CRL Customer Service for application guidance.
Specifications
CAD Drawings - dwg
