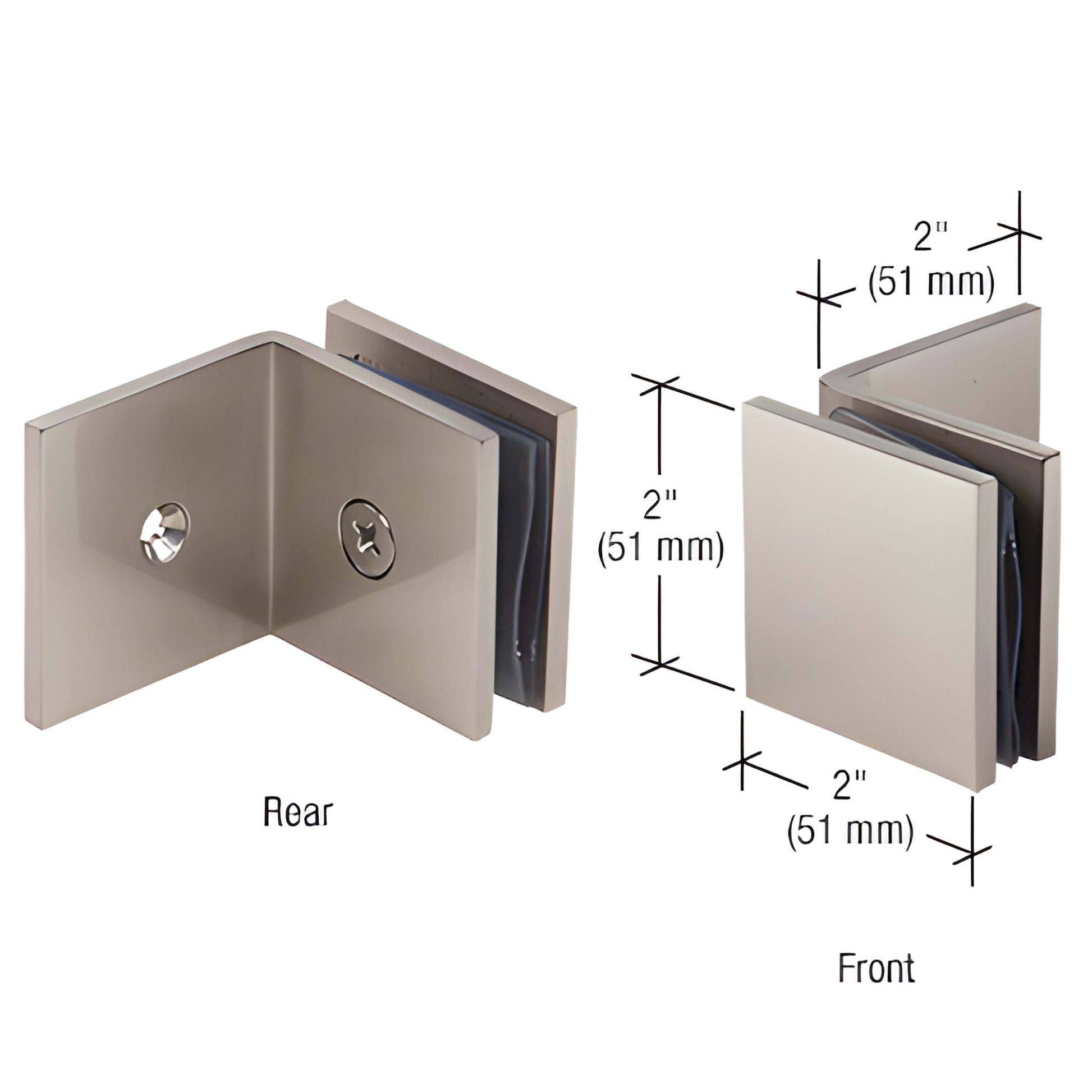

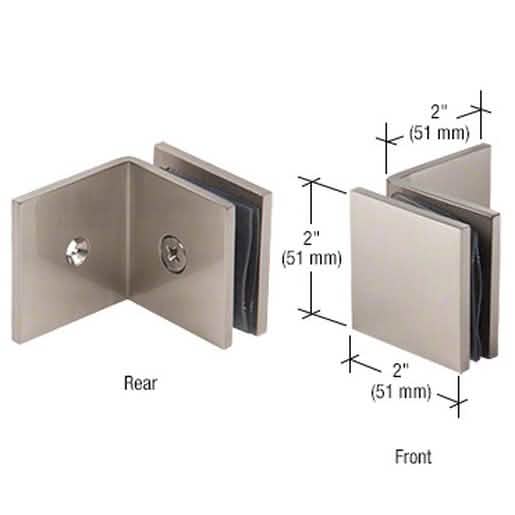

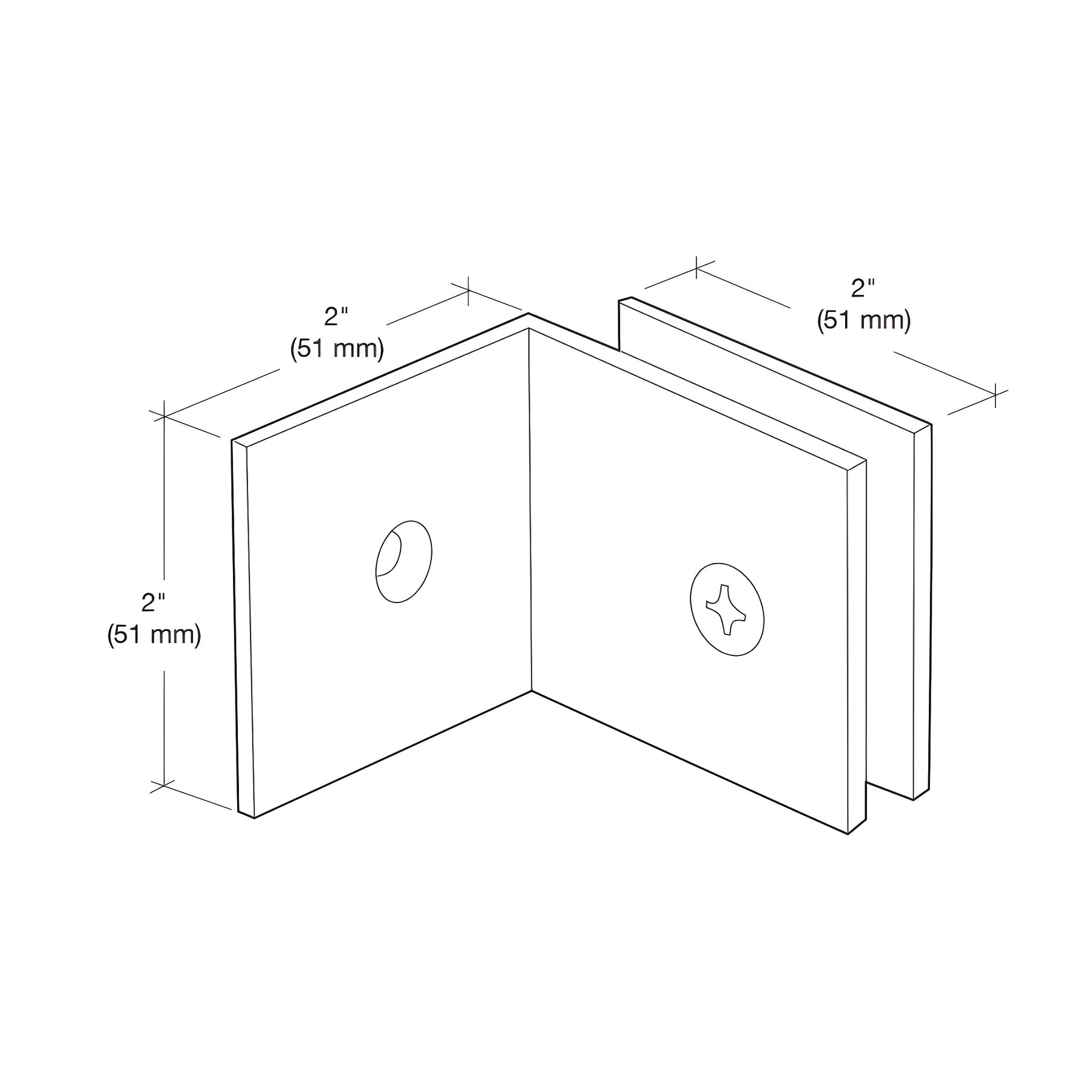

CRL Brushed Nickel Square Clamp for Fixed Glass Panel - Large Leg
CRL Brushed Nickel Square Clamp for Fixed Glass Panel - Large Leg
Regular price
$44.41 CAD
Regular price
Sale price
$44.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC039BN
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Leg Width
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an all-glass appearance
- Requires 3/4" (19 mm) hole in glass
- Larger leg covers more wall surface
- Use monolithic tempered glass
CRL Fixed Panel Square Clamp (With Large Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels for frameless shower and glass partition installations. Clearance between the glass and wall is 1/16" (2 mm). Use clear silicone to provide a clean, water-tight seal. The 90° leg provides extra strength and the larger leg covers more tile area, ideal for tiled or uneven surfaces. SKU: SGC039BN.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order the SGC039BN fixed panel clamp for durable, secure frameless shower and glass partition mounting—add to cart or contact us for technical help.
