CRL Polished Brass Fixed Panel Square Glass Clamp (Large Leg)
CRL Polished Brass Fixed Panel Square Glass Clamp (Large Leg)
Regular price
$42.24 CAD
Regular price
Sale price
$42.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC039BR
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

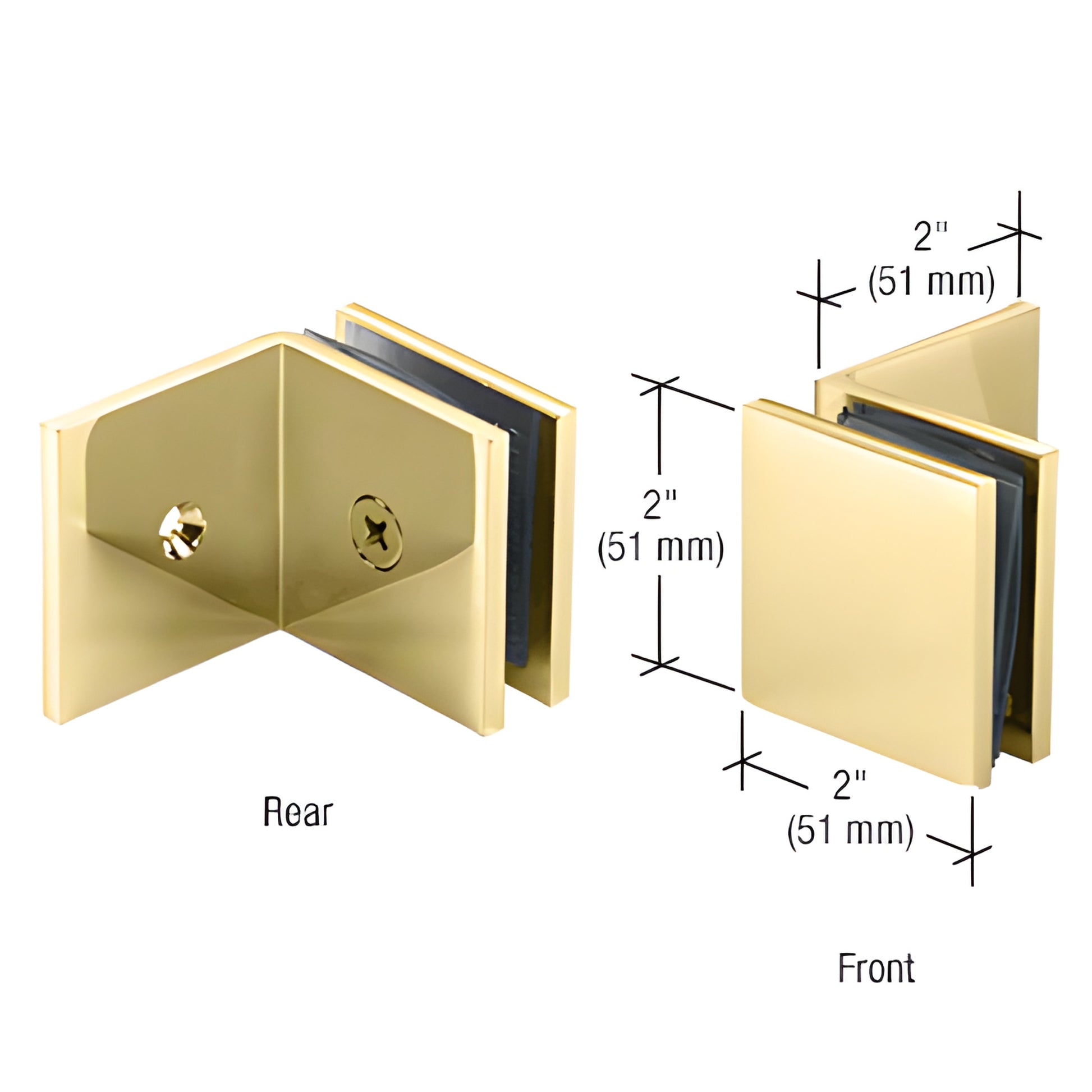

Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Leg Width
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an "all-glass" appearance
- Requires 3/4" (19 mm) hole in glass
- Larger leg covers more wall surface
- Use monolithic tempered glass

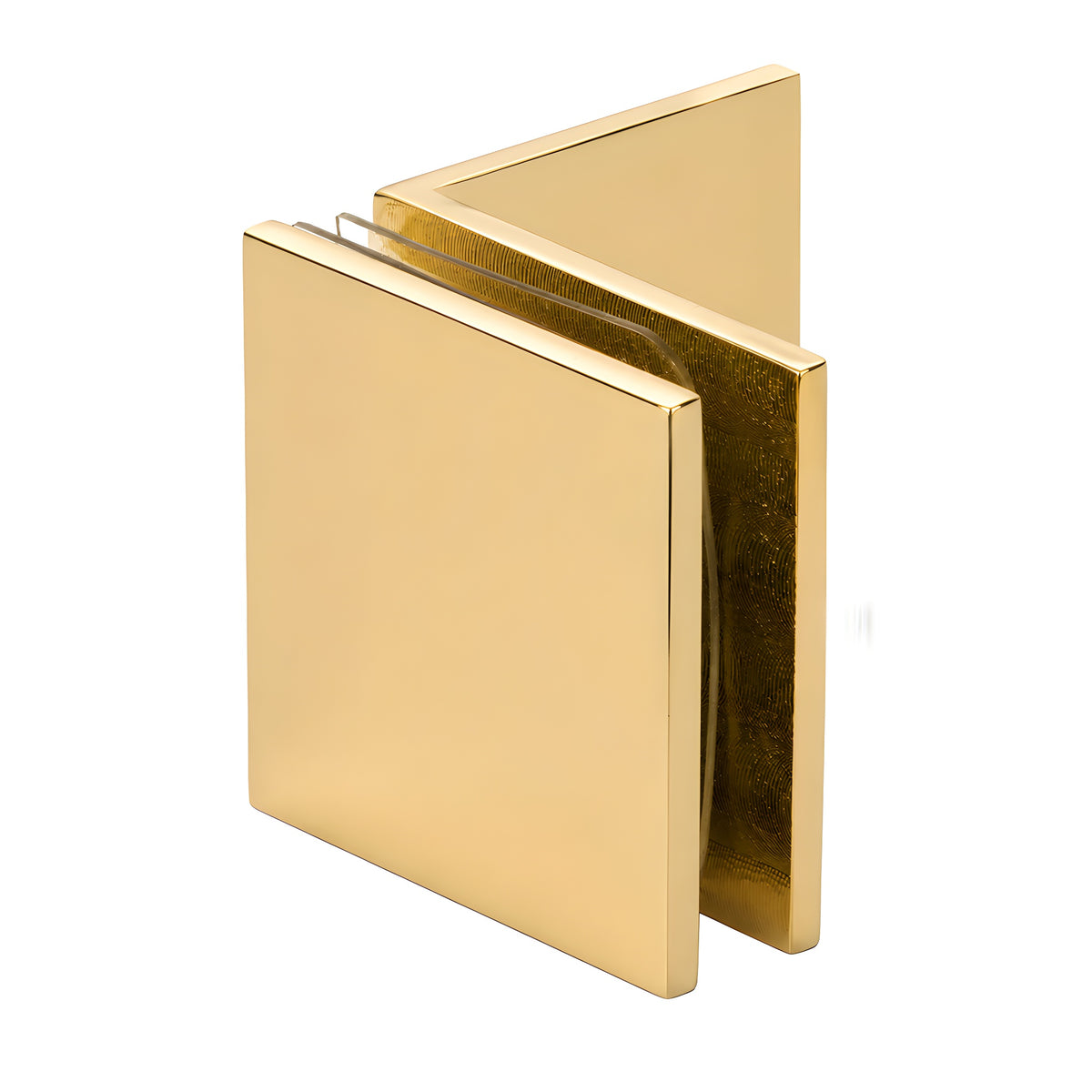

CRL Fixed Panel Square Clamp (With Large Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels for frameless showers and glass partitions. Clearance between the glass and wall is 1/16" (2 mm). Use clear silicone for a clean, water-tight seal. The 90° leg provides extra strength and the larger leg covers more tile area—ideal for shower glass clamps and frameless shower installations.
SKU: SGC039BR
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation which can cause a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
Order the SGC039BR fixed panel square clamp for a stronger, cleaner frameless shower finish — add to cart now.
