CRL Satin Brass Shower Glass Panel Square Clamp - Large Leg
CRL Satin Brass Shower Glass Panel Square Clamp - Large Leg
Regular price
$52.00 CAD
Regular price
Sale price
$52.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC039SB
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

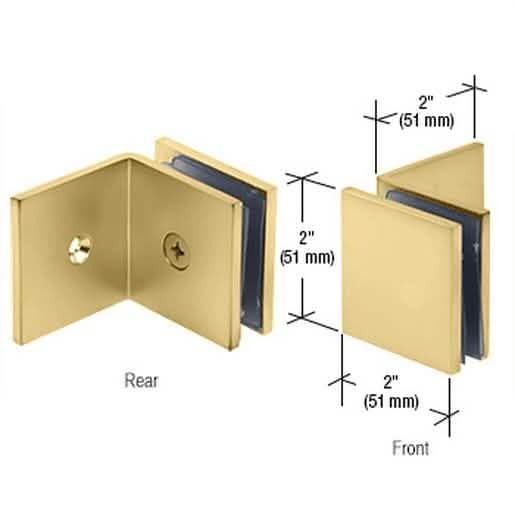

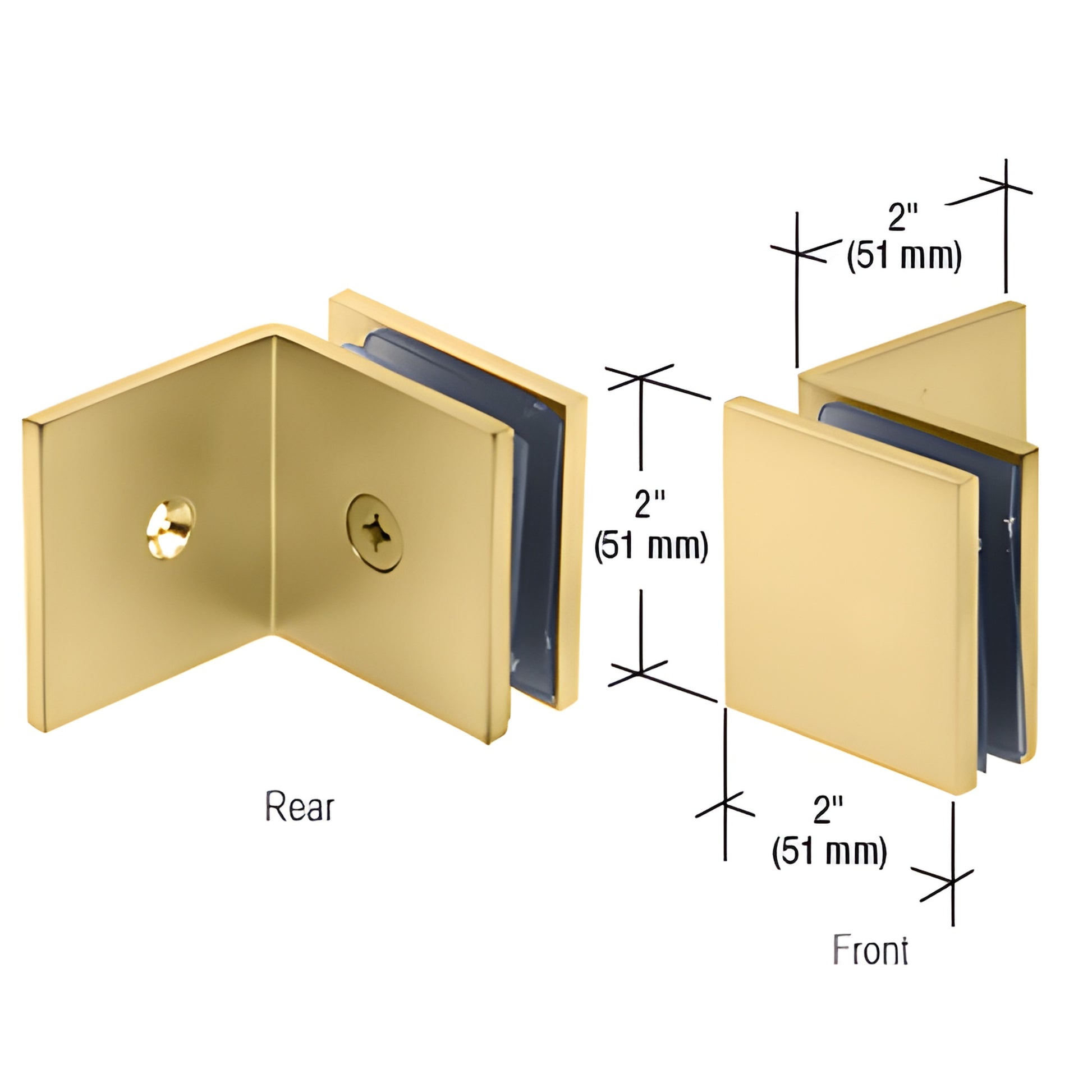

Height
2 in. (51 mm)
Leg Width
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an all-glass appearance
- Requires 3/4" (19 mm) hole in glass
- Larger leg covers more wall surface
- Use monolithic tempered glass

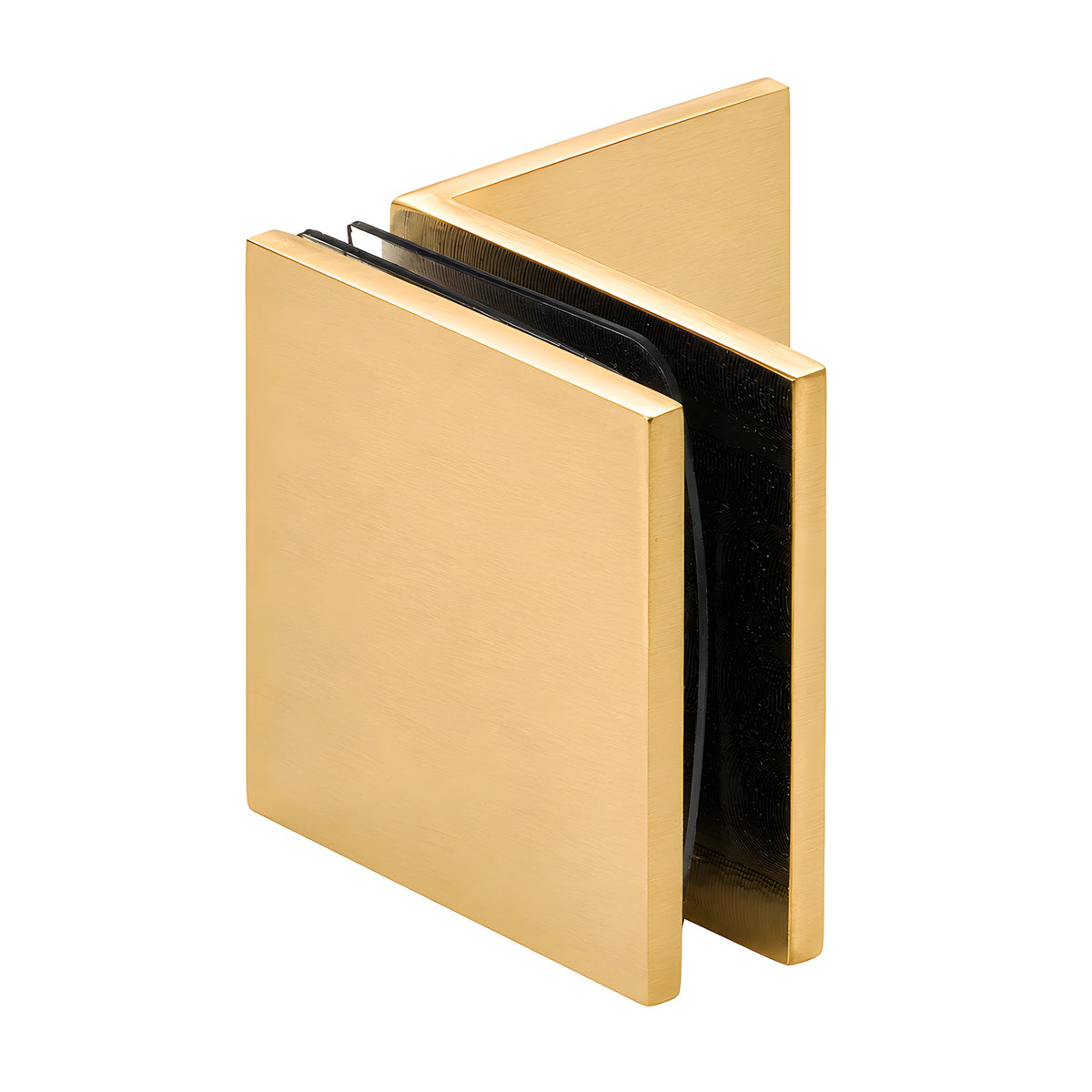

CRL Fixed Panel Square Clamp (With Large Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels (SKU: SGC039SB). Designed for tempered shower and storefront applications, the 90° leg provides extra strength while the larger leg covers more tile area. Clearance between the glass and wall is 1/16" (2 mm); clear silicone can be used for a clean, water-tight seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.
Order the SGC039SB solid brass fixed panel square clamp for secure, clean-looking tempered glass installations — add to cart now.
