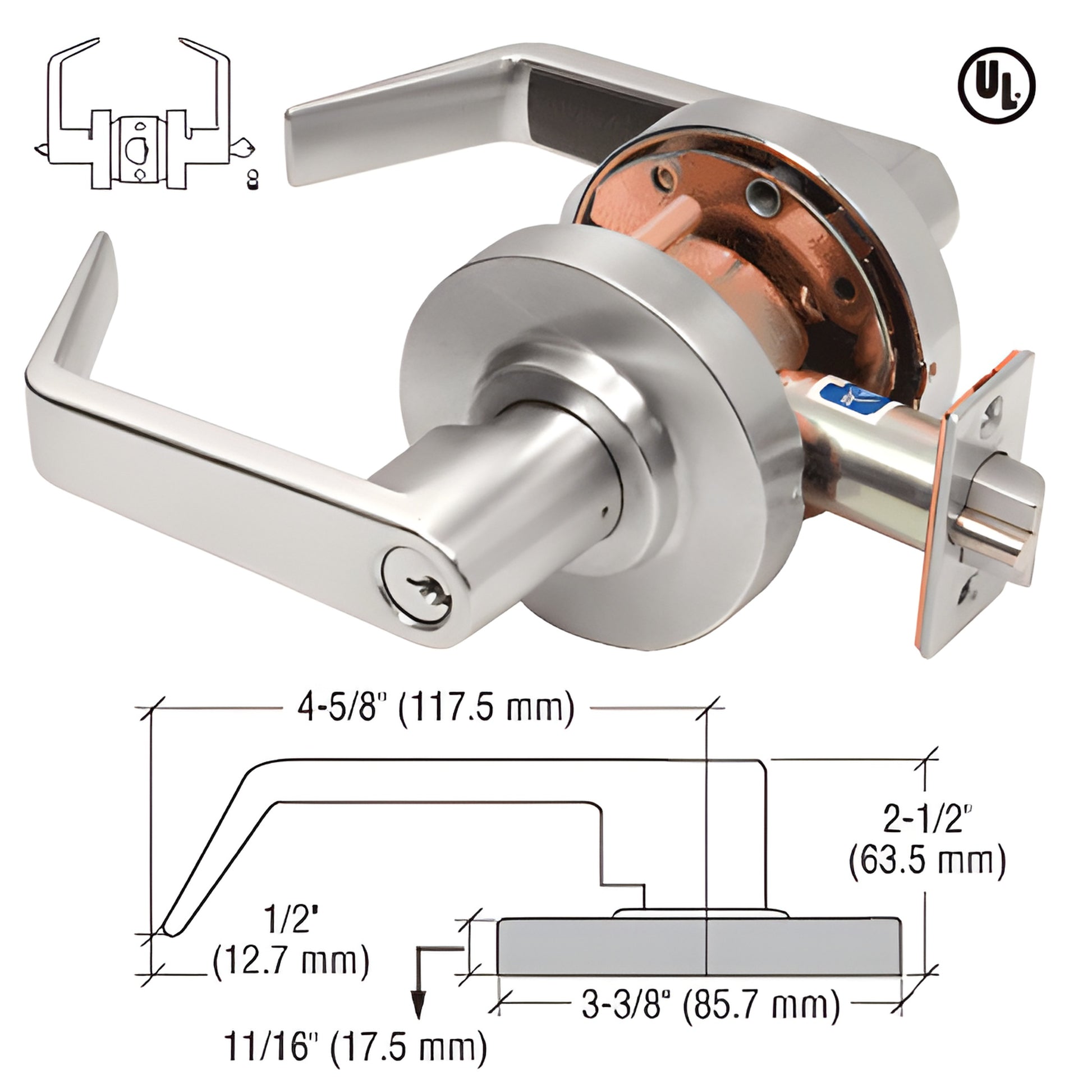

CRL Brushed Nickel Grade 1 HD Entrance Lever Lockset - Schlage 6-Pin
CRL Brushed Nickel Grade 1 HD Entrance Lever Lockset - Schlage 6-Pin
Regular price
$170.27 CAD
Regular price
Sale price
$170.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D60ENTBN
Shipping Weight: 4.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
Schlage (R) 6-Pin
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® C 6-Pin Keyway
- Clutch Feature (Grade 1) — prevents outer-lever torque failure
- ANSI A156.2 Grade 1
- UL Listed; 3‑hour fire rating
- 3 Year Warranty
CRL Heavy‑Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible commercial lever locksets engineered for high‑traffic doors. The Grade 1 clutch feature disengages the outer lever when locked to prevent latch failure from forced torque attempts.
UL Listed and 3‑hour fire rated, these commercial Grade 1 lever locksets fit door thicknesses 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Available with Schlage® C 6‑pin keyway or 7‑pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike.
Entrance function: Push-button on the inside locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever provides free egress at all times.
SKU: D60ENTBN
Order SKU D60ENTBN now — or contact us for technical specs and bulk pricing.
