- Wall-mount and glass-to-glass models allow the door to bi-fold into the enclosure
- Works with Hydroslide upper track, one hanger, and upper track connectors (sold separately)
- Available in four finishes to match Hydroslide system hardware
- Designed for monolithic tempered safety glass

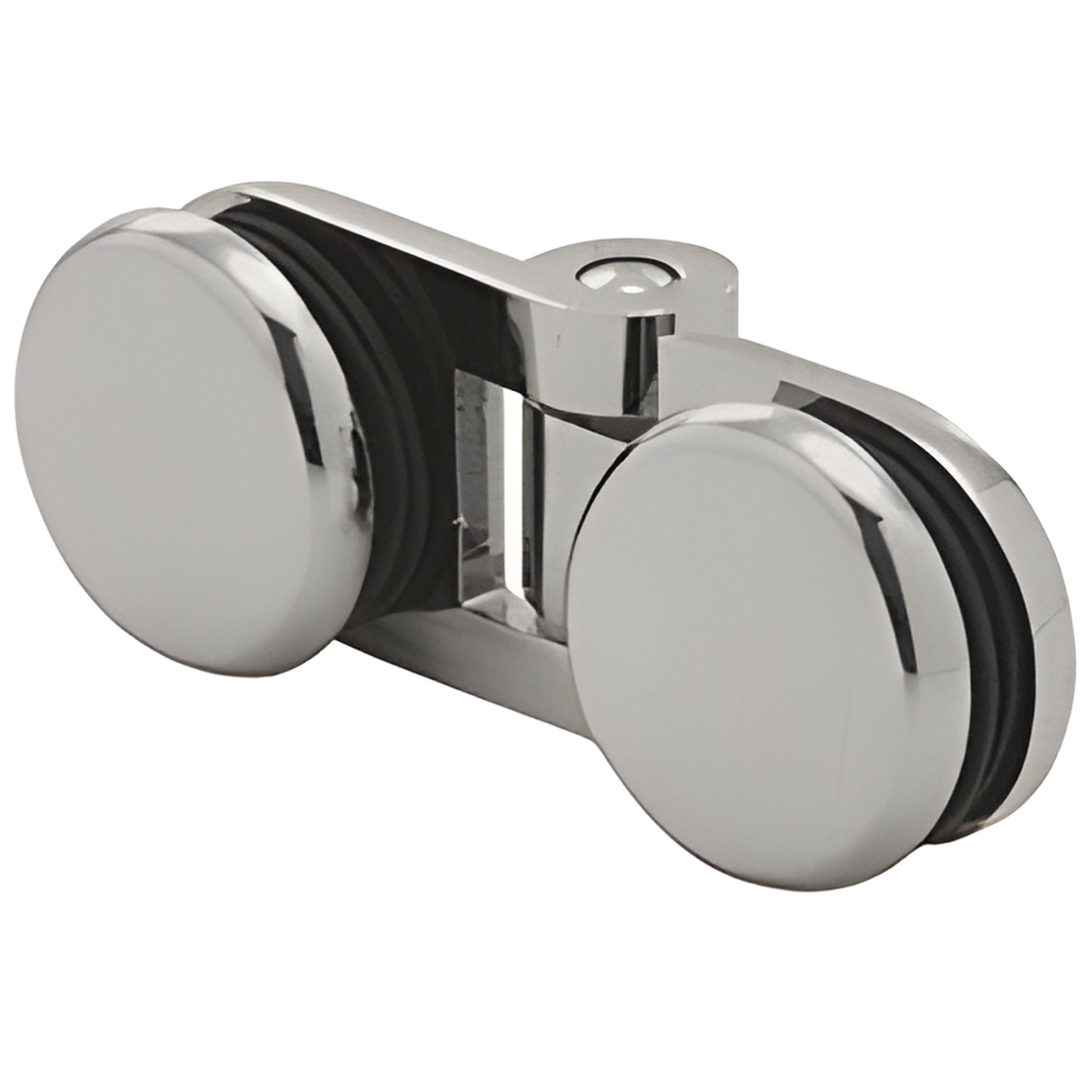

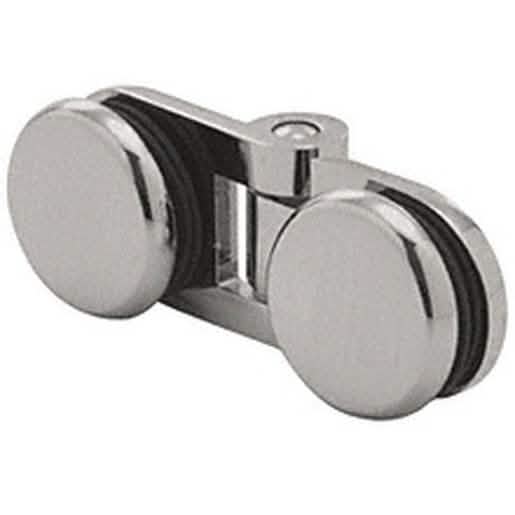

CRL Hydroslide Bi-Fold Hinges (SKU: HYDH180BN) enhance the Hydroslide sliding shower system by enabling two glass panels to bi-fold into the enclosure for a larger, unobstructed opening. Ideal for modern frameless showers, these solid brass bi-fold shower hinges are finished to match Hydroslide hardware and require holes in tempered glass for installation.
NOTE: Upper track, hanger, and 90° wall-to-upper-track connectors required for installation are sold separately.
SPECIFICATIONS: Glass Thickness: 5/16" to 3/8" (8–10 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long life
Hinge Action: Bi-folds into shower enclosure for maximum opening
Closing Type: Free swinging
Glass Requirements: Holes required in glass; use included template and fabrication dimensions
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Capacities: Do not exceed 48" (1.22 m) or 100 lbs. (45 kg) combined for both folding doors. Use two hinges per folding panel.
Product Warning:CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided—cut-out dimensions may not match other brands.
Shipping weights are approximate. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Ready to upgrade your frameless shower with Hydroslide bi-fold hinges? Order SKU HYDH180BN or contact us for technical support and installation accessories.
