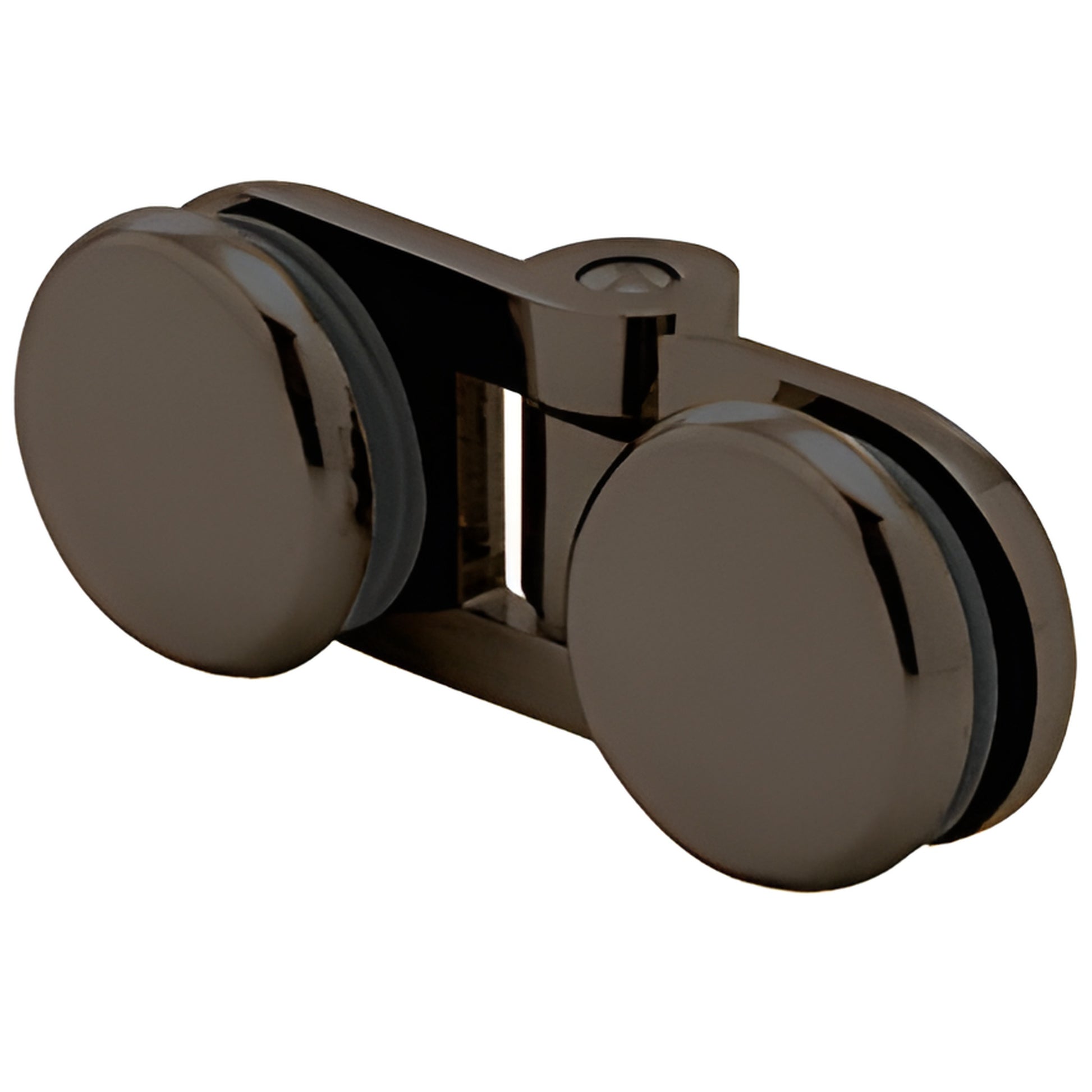

CRL Hydroslide Oil Rubbed Bronze Bi-Fold Glass Shower Door Hinge

• Wall-mount and glass-to-glass models allow door panels to bi-fold into the shower enclosure
• Works with Hydroslide upper track, one hanger per panel, and upper track connectors (sold separately)
• Available in four finishes to match the Hydroslide system hardware
• For monolithic tempered safety glass only (holes required in glass)

CRL Hydroslide Bi-Fold Hinges — SKU: HYDH1800RB add a new option to the Hydroslide sliding door family: bi-fold shower door hinges that fold two sliding glass panels into the enclosure to create a larger opening than a single sliding door. Constructed of solid brass and offered in four finishes, these brass bi-fold shower hinges are designed for use with the Hydroslide system and require glass holes and the Hydroslide upper track assembly.

NOTE: Upper track, hanger, and 90° wall-to-upper track connectors required for installation are sold separately.

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Construction: Solid brass
Hinge Swing: Bi-fold into shower enclosure (free swinging)
Holes Required: Yes — hinge requires holes in glass
Includes: Gaskets, screws, and glass fabrication dimensions (template included)
Maximum Capacities: Combined folding doors must not exceed 48" (1.22 m) or 100 lbs (45 kg). Use two hinges only on each folding panel.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the hinge template provided; cut-out dimensions may differ from other brands.

Shop Hydroslide bi-fold hinges (HYDH1800RB) for a durable brass solution that expands your shower opening—order now or contact us for technical assistance.
