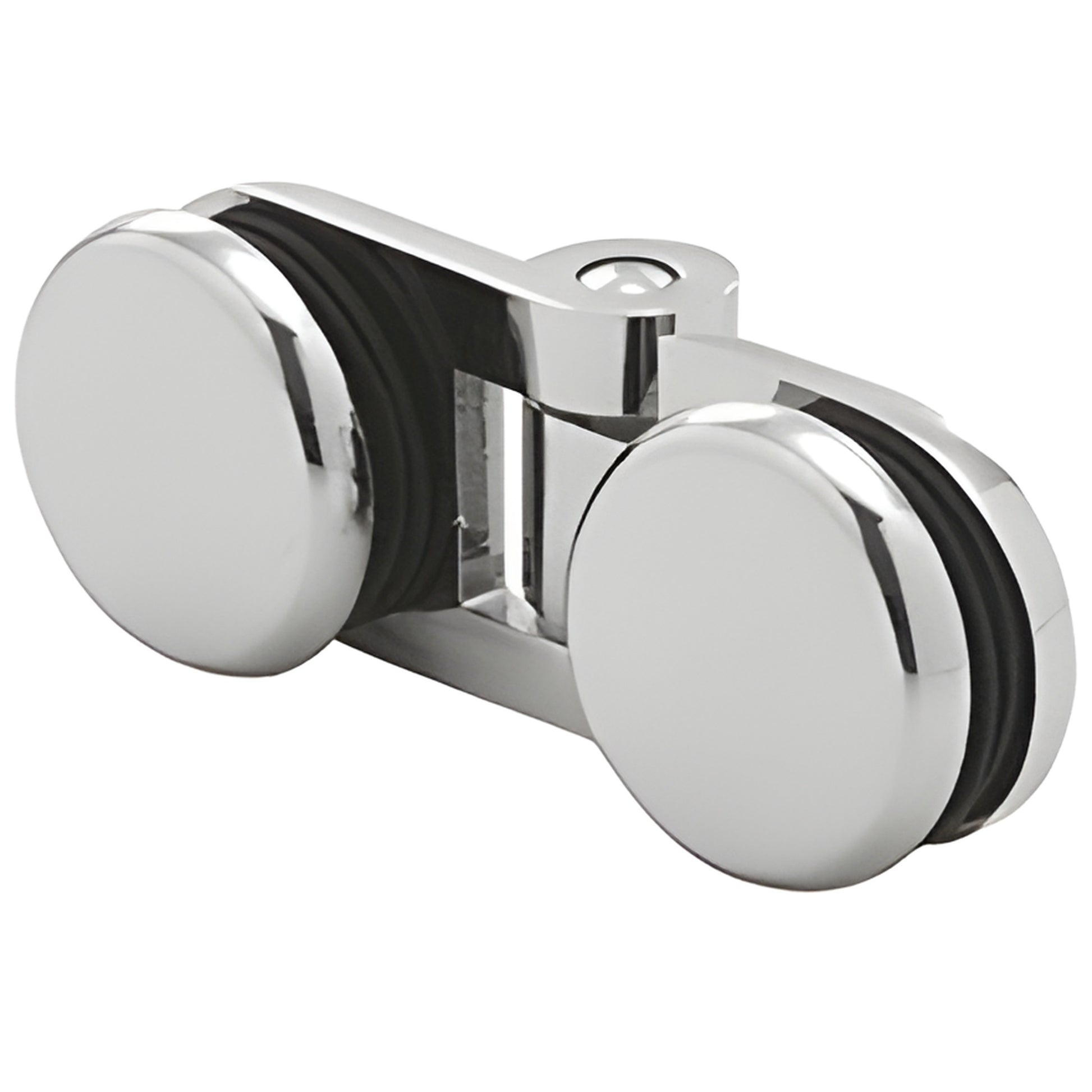

CRL Chrome Hydroslide Bi-Fold Glass-to-Glass Shower Hinge

• Wall-mount and glass-to-glass models allow door panels to bi-fold into the enclosure
• Works with Hydroslide upper track, one hanger per panel, and upper track connectors (sold separately)
• Available in four finishes to match Hydroslide system hardware
• Designed for monolithic tempered safety glass

CRL Hydroslide Bi-Fold Hinges (SKU: HYDH180CH) add bi-fold functionality to the Hydroslide sliding shower system. Instead of a single sliding door, these hinges let two tempered glass panels fold into the enclosure to create a wider opening. Ideal for bi-fold shower doors and custom glass shower enclosures, they pair with Hydroslide tracks and connectors to deliver a larger, unobstructed entry.

NOTE: Upper track, hanger, and 90° wall-to-upper-track connectors required for installation are sold separately.

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Construction: Solid brass
Hinge Motion: Bi-folds into shower enclosure (free-swinging)
Holes Required: Requires drilled holes in glass; use only the included template
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Capacities: Combined folding doors must not exceed 48" (1.22 m) or 100 lbs (45 kg). Use two hinges per folding panel.

Product Warning:
Designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Cut-out dimensions for CRL hinges may not match other brands—use only the supplied template.

Looking for solid-brass Hydroslide bi-fold shower hinges that work with monolithic tempered glass? Order HYDH180CH or contact us for pricing and installation guidance.
