CRL Hydroslide Brushed Nickel Bi-Fold Wall-Mount Shower Door Hinge

• Wall-mount and glass-to-glass bi-fold shower door hinges allow panels to fold into the enclosure
• Works with Hydroslide upper track, one hanger, and upper track connectors (sold separately)
• Available in four Hydroslide system finishes to match shower hardware
• Designed for use with monolithic tempered safety glass

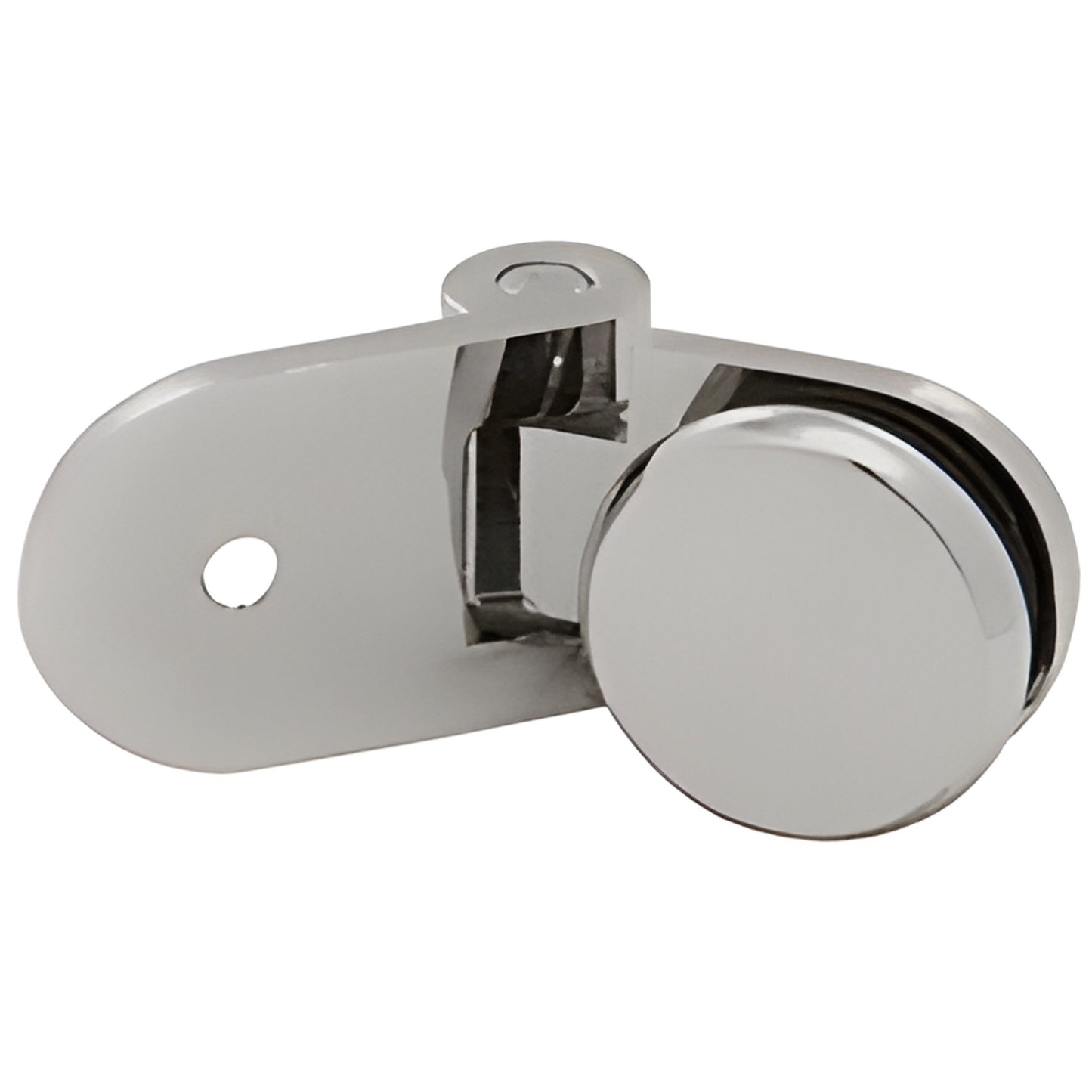

CRL Hydroslide Bi-Fold Hinges (SKU: HYDH037BN) enhance the Hydroslide system by converting standard sliding panels into bi-fold shower doors, creating a larger opening than a single sliding door. Constructed of solid brass with a choice of four finishes, these glass-to-glass hinges require drilled holes in tempered safety glass for installation.

NOTE: Upper track, hanger, and 90° wall-to-upper-track connectors are required for installation and sold separately.

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Construction: Solid brass
Hinge Swing: Bi-fold into shower enclosure (free swinging)
Holes: Holes required in glass for mounting
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Capacities: Combined folding doors must not exceed 48" (1.22 m) or 100 lbs (45 kg). Use two hinges per folding panel.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order HYDH037BN CRL Hydroslide bi-fold shower door hinges today to expand your opening and match your Hydroslide hardware.
