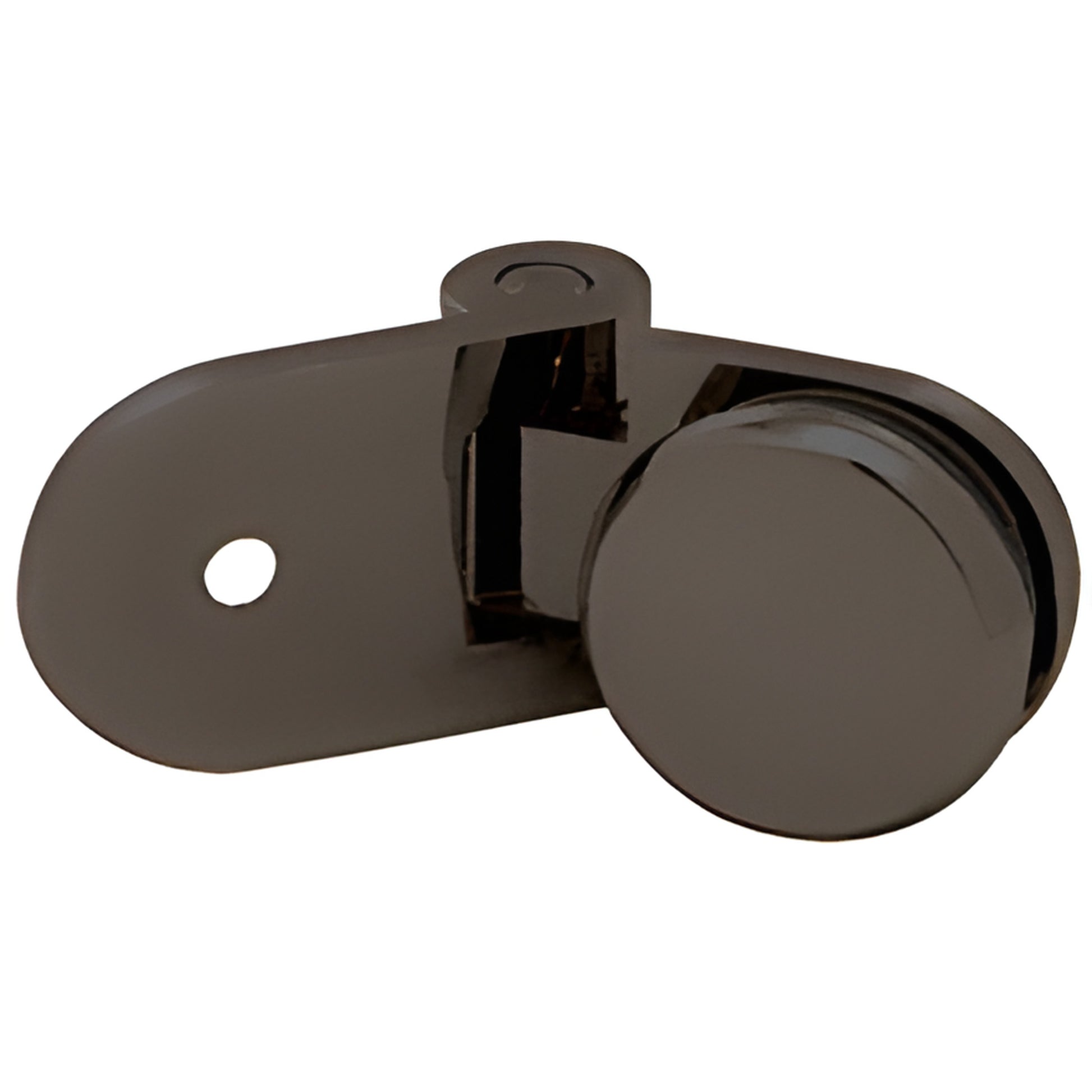

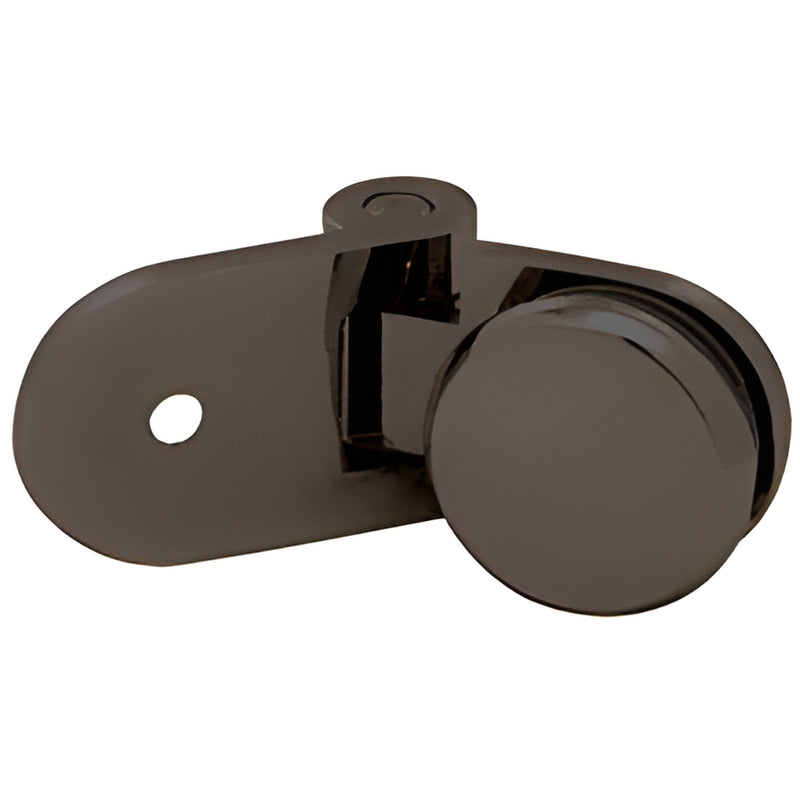

CRL Hydroslide Oil Rubbed Bronze Bi-Fold Shower Door Hinge

• Wall-mount and glass-to-glass models allow door to bi-fold into enclosure
• Works with Hydroslide upper track, one hanger, and upper track connectors (sold separately)
• Available in four finishes to match Hydroslide system hardware
• Designed for monolithic tempered glass

CRL Hydroslide Bi-Fold Hinges provide a bi-folding alternative for Hydroslide sliding shower doors, letting two tempered glass panels fold into the enclosure to create a wider opening than a single sliding door. Constructed of solid brass and finished to match the Hydroslide system, these hinges require holes in the glass and are intended for use with monolithic tempered safety glass. SKU: HYDH0370RB.


NOTE: Upper track, hanger, and 90° wall-to-upper-track connectors required for installation are sold separately.

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Construction: Solid brass
Hinge Motion: Bi-fold into shower enclosure (free swinging)
Holes Required: Holes required in glass for mounting
Includes: Gaskets, screws, and glass fabrication dimensions/template
Maximum Capacities: Combined folding doors must not exceed 48" (1.22 m) or 100 lbs (45 kg). Use two hinges only on each folding panel.

Product Warning:

CRL shower door hinges are engineered for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Durable, solid-brass Hydroslide bi-fold hinges for tempered glass shower doors—shop SKU HYDH0370RB now to complete your Hydroslide system.
