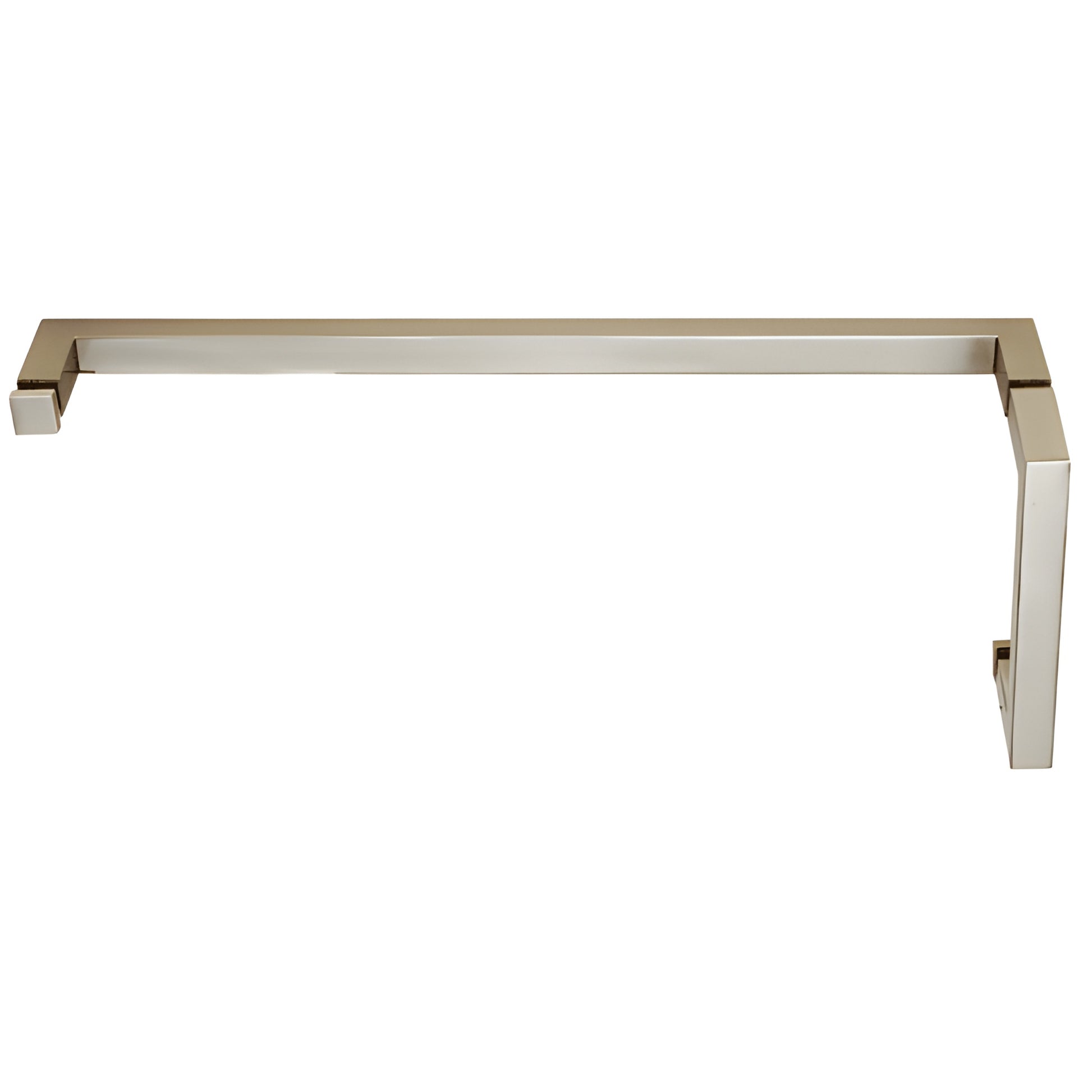

CRL Brushed Nickel "SQ" Series Combination 6" Pull Handle 24" Towel Bar
Item # SQ6X24BN
$196.02
CAD
Finish (4)
-
Oil Rubbed Bronze -
Brushed Nickel -
Polished Chrome -
Matte Black
Mounting Type (3)
- Glass Mount - Back To Back
- Glass Mount - Single Sided
- Glass Mount -Towel Bar / Pull
Series (3)
- Ladder Style
- MT
- SQ
Overview
| SKU | SQ6X24BN |
|---|---|
| Sold As | 1 Each |
| Construction | Tubular |
| Diameter | 3/4 in. (19 mm) |
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 1/4 in. To 1/2 in. (6 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass Mount -Towel Bar / Pull |
| Pull Mounting Center To Center | 6 in. (152 mm) |
| Series | SQ |
| Towel Bar Mounting Center To Center | 24 in. (610 mm) |
Description
- Part of Our "SQ" Square Line of Accessories Featuring the Same Mitered Corners as Our Handles and Towel Bars
- Available in Several Finishes
- Made of 3/4" (19 mm) Brass Tubing
- Several Sizes Available
- Use Monolithic Tempered Glass
CRL SQ Series Style Pull Handle/Towel Bar Combination Sets are for glass mounting on shower doors. Each set consists of one towel bar and one pull handle. Made of square tubing.
SPECIFICATIONS:
Material: 3/4" (19 mm) Brass Tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull Handle = 6" (152 mm)
8" Pull Handle = 8" (203 mm)
18" Towel Bar = 18" (457 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. SQ6X18 6" Pull/18" Towel Bar
Cat. No. SQ6X24 6" Pull/24" Towel Bar
Cat. No. SQ8X18 8" Pull/18" Towel Bar
Cat. No. SQ8X24 8" Pull/24" Towel Bar
