- D2203 Series
- With D649 Ball Bearing Wheels
- An Excellent Choice for Any Project
- Choose From Two Styles of Upper Channel
- Available in Up to Six Finishes
- 12' (3.66 m) Length
CRL's 12' (3.66 m) Low Profile Rolling Track Assemblies are packaged with the extrusions, wheels, and guides needed to complete custom sliding door installations. Designed for 1/4" (6 mm) tempered glass doors, these low profile rolling track assemblies are ideal for display cases, trophy cases, china cabinets, and retail showcases. Choose Nylon or Steel Ball Bearing Wheel assemblies for years of smooth, reliable operation. The versatile track system supports design flexibility and optional locking hardware. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).
SKU: D2203BNBB
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

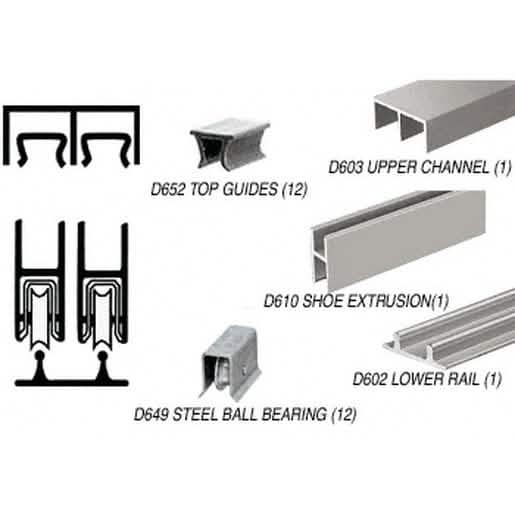

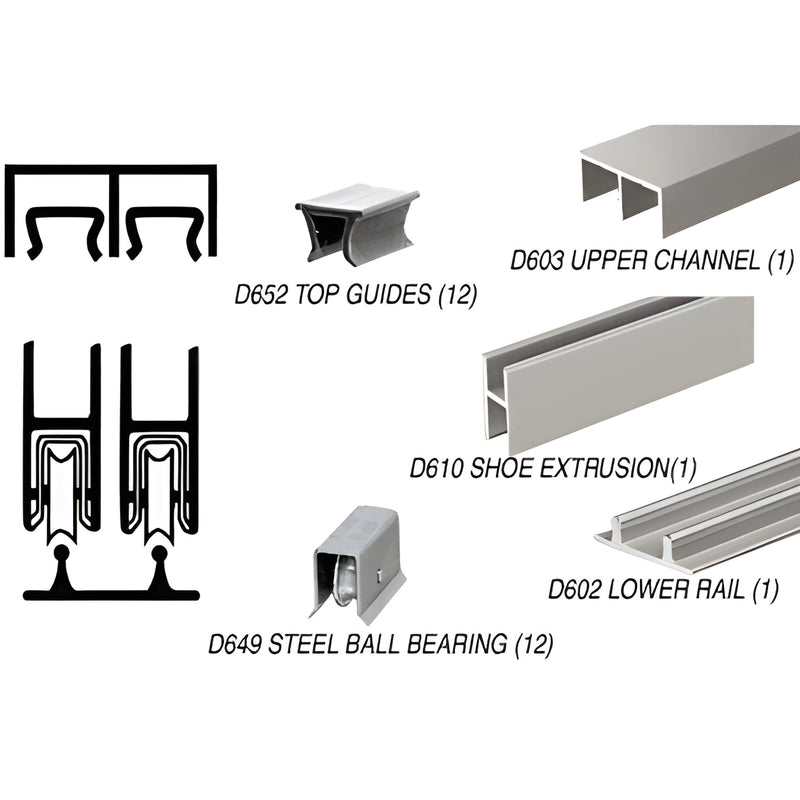

Components for D2203BNBB
D602 (x1)
D603 (x1)
D649 (x12)
D610 (x1)
D652 (x12)
D9650 (x1)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
If you need a very tight fit, measure your own dimensions. The dimensions shown are guideline dimensions satisfactory to most installers.
D2203 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly : Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly : Glass Height = Opening
