CRL Brushed Nickel Z-Series Square Zinc Glass Clamp, Fits 3/8" & 1/2"
CRL Brushed Nickel Z-Series Square Zinc Glass Clamp, Fits 3/8" & 1/2"
Regular price
$32.91 CAD
Regular price
Sale price
$32.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZL810BN
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

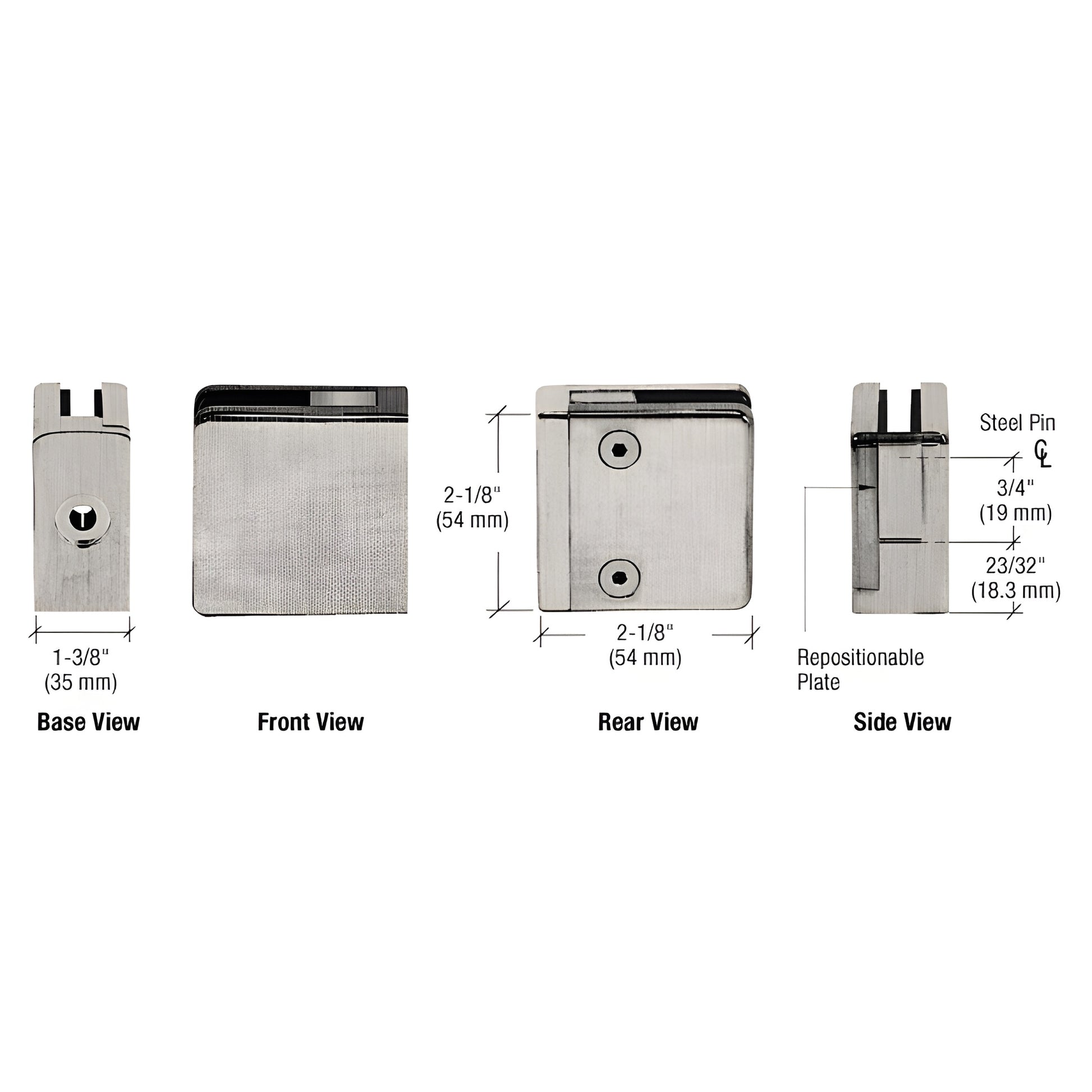

Description
Base Type
Flat
Depth
1-3/32 in. (28 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-1/8 in. (54 mm)
Material
Zinc
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- Repositionable plate for right- or left-corner mounting on glass
- Designed for square tubing and other flat surfaces
- Holds 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Durable zinc casting construction
CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate (SKU: ZL810BN) — a versatile glass clamp engineered for secure corner mounting on square tubing or any flat surface. The repositionable plate lets you use the clamp at either the right or left corner, and the zinc casting body provides reliable strength and corrosion resistance for interior and light-exterior applications.
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm)
For Use With: Square tubing, flat metal surfaces, or similar flat substrates
Material: Zinc casting
Fabrication / Pin Hole Requirements:
For 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole required if using the supplied steel support pin.
For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole required if using the supplied steel support pin.
Includes: Repositionable plate (ZL Series only)
Replacement Hardware: CRL ZCS5X5SS (replacement screws) & CRL ZL38SG (replacement gaskets)
Order the ZL810BN glass clamp now to get a repositionable, zinc-cast solution for 3/8"–1/2" tempered glass on square tubing and flat surfaces.
