CRL Z-Series Brushed Nickel Shower Glass Clamp 3/8–1/2" Square Base
CRL Z-Series Brushed Nickel Shower Glass Clamp 3/8–1/2" Square Base
Regular price
$35.26 CAD
Regular price
Sale price
$35.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZL610BN
Shipping Weight: 13.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.44 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Radius
Depth
1-3/8 in. (35 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
2-3/8 in. (60 mm)
Material
Zinc
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- Repositionable plate for use at right or left corner of glass
- Designed for 2" (51 mm) diameter round tubing
- Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Radius surface mount base

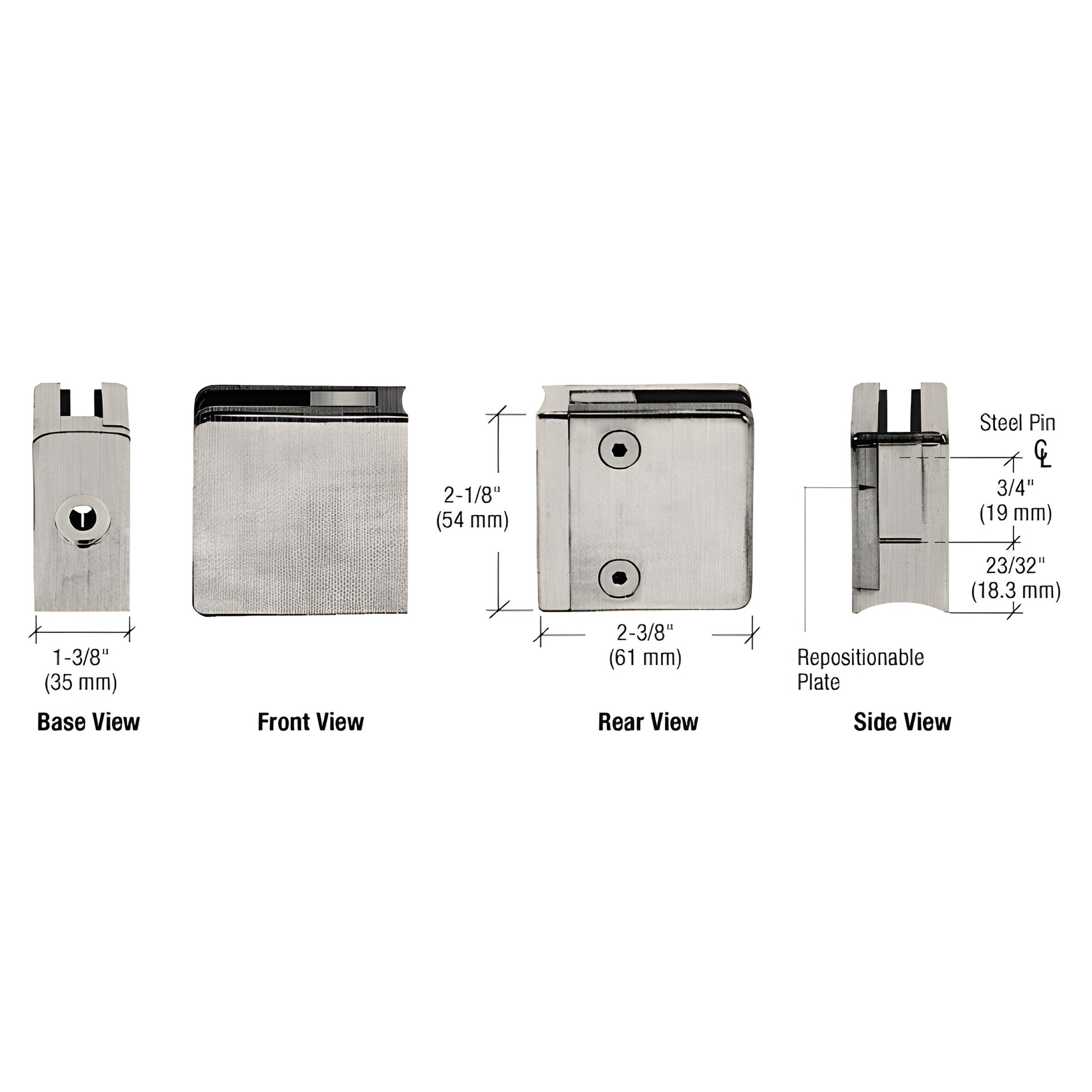

This CRL Z-Series Square Type Radius Base Glass Clamp with Repositionable Plate (SKU: ZL610BN) is a zinc-constructed glass clamp engineered for partitions, railings, windbreaks and similar architectural projects. Built for 3/8" (10 mm) and 1/2" (12.7 mm) monolithic tempered glass, it offers a repositionable plate to accommodate right- or left-corner mounting and secure attachment to 2" round tubing.
Note: Replacement screws: CRL Cat. No. ZCS5X15SS. Replacement gaskets: CRL Cat. No. ZL38SG.
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm).
Base Design: Radius surface mount.
For Use With: 2" (51 mm) diameter round tubing.
Material: Zinc construction.
Glass Fabrication:
For 3/8" (10 mm) thick glass: 1/2" (12 mm) diameter hole required if using the provided steel pin for glass support.
For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using the provided steel pin for glass support.
Includes: Repositionable plate for right- or left-corner mounting.
Order the ZL610BN square type radius base glass clamp today to secure 3/8"–1/2" tempered glass with a repositionable corner plate—contact us to check availability.
