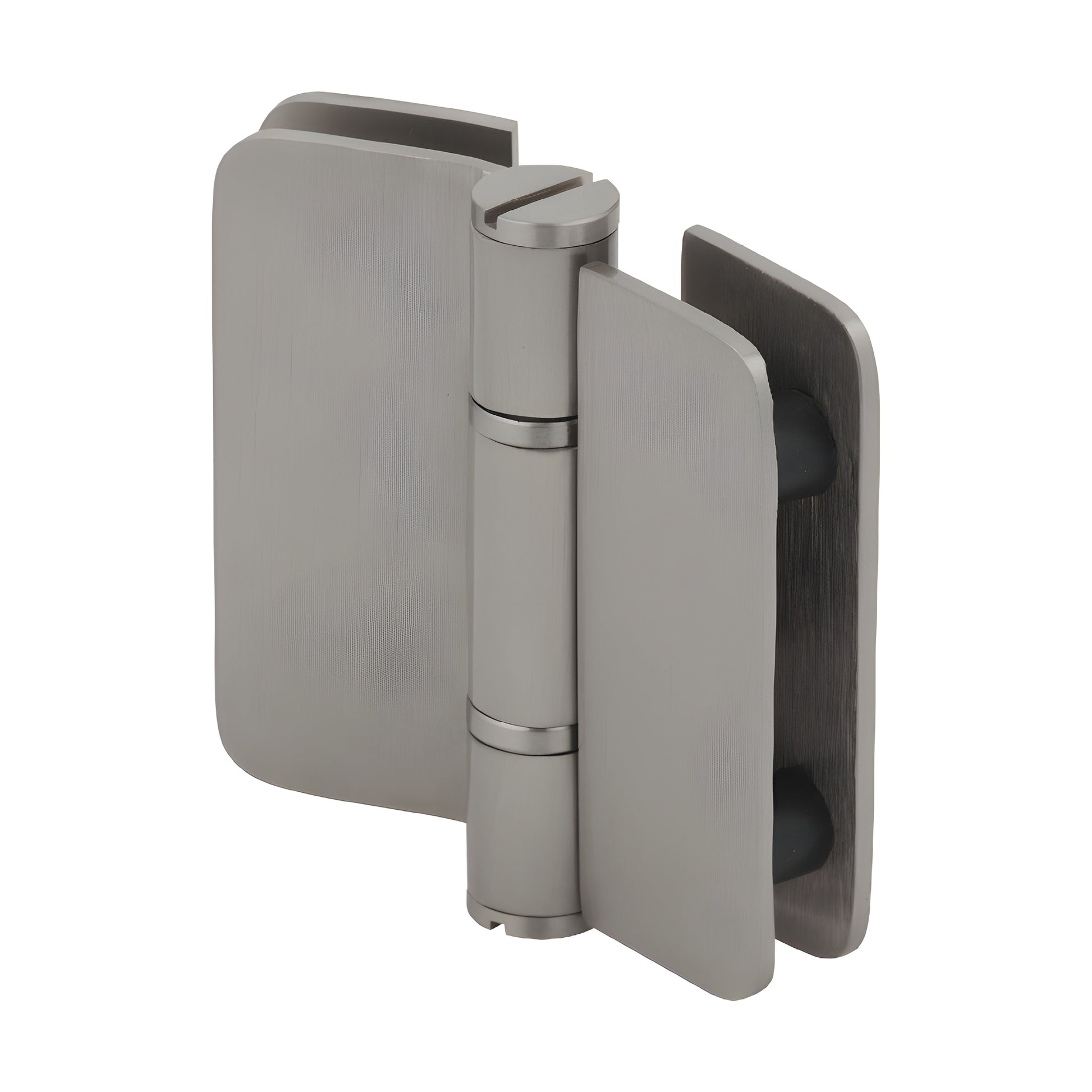

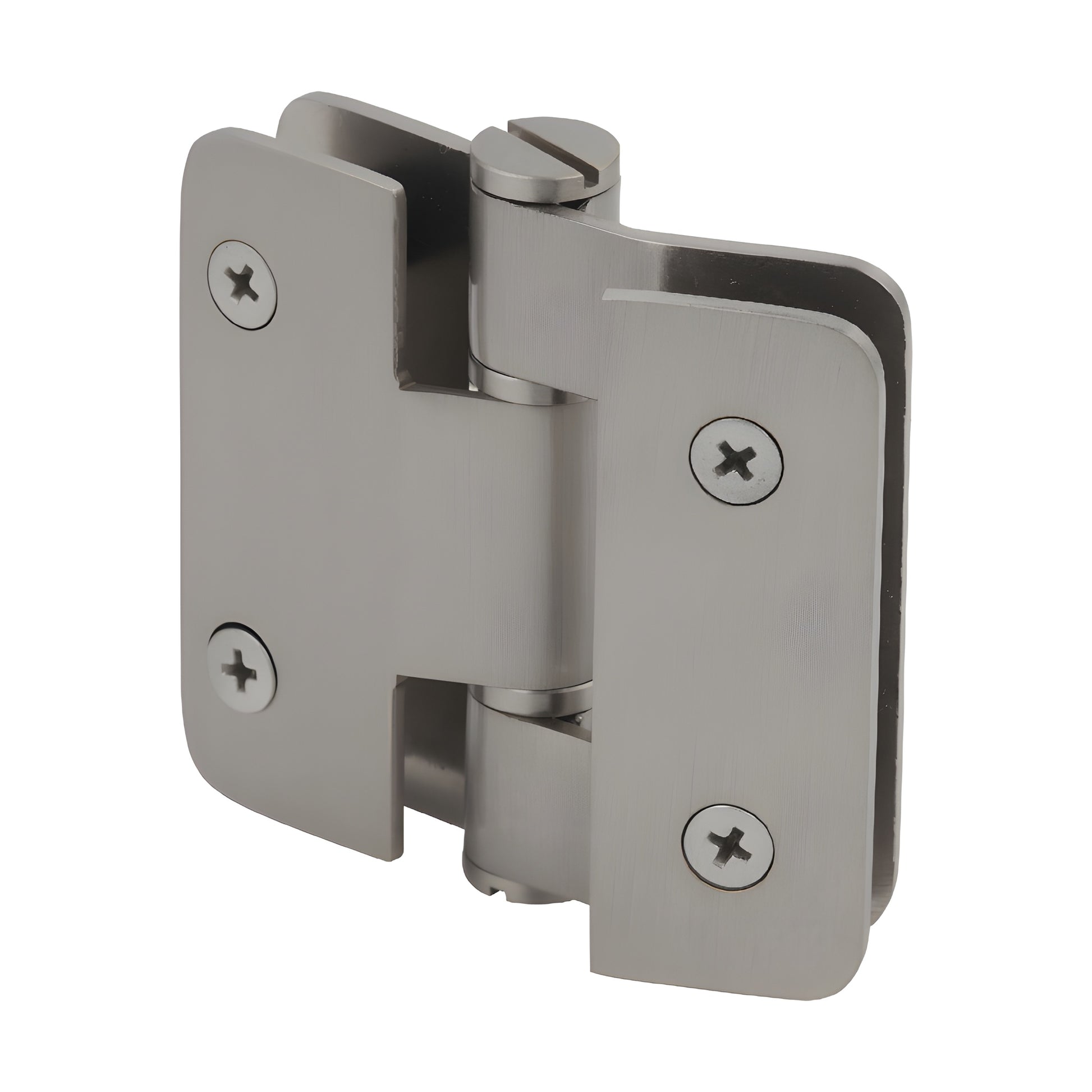

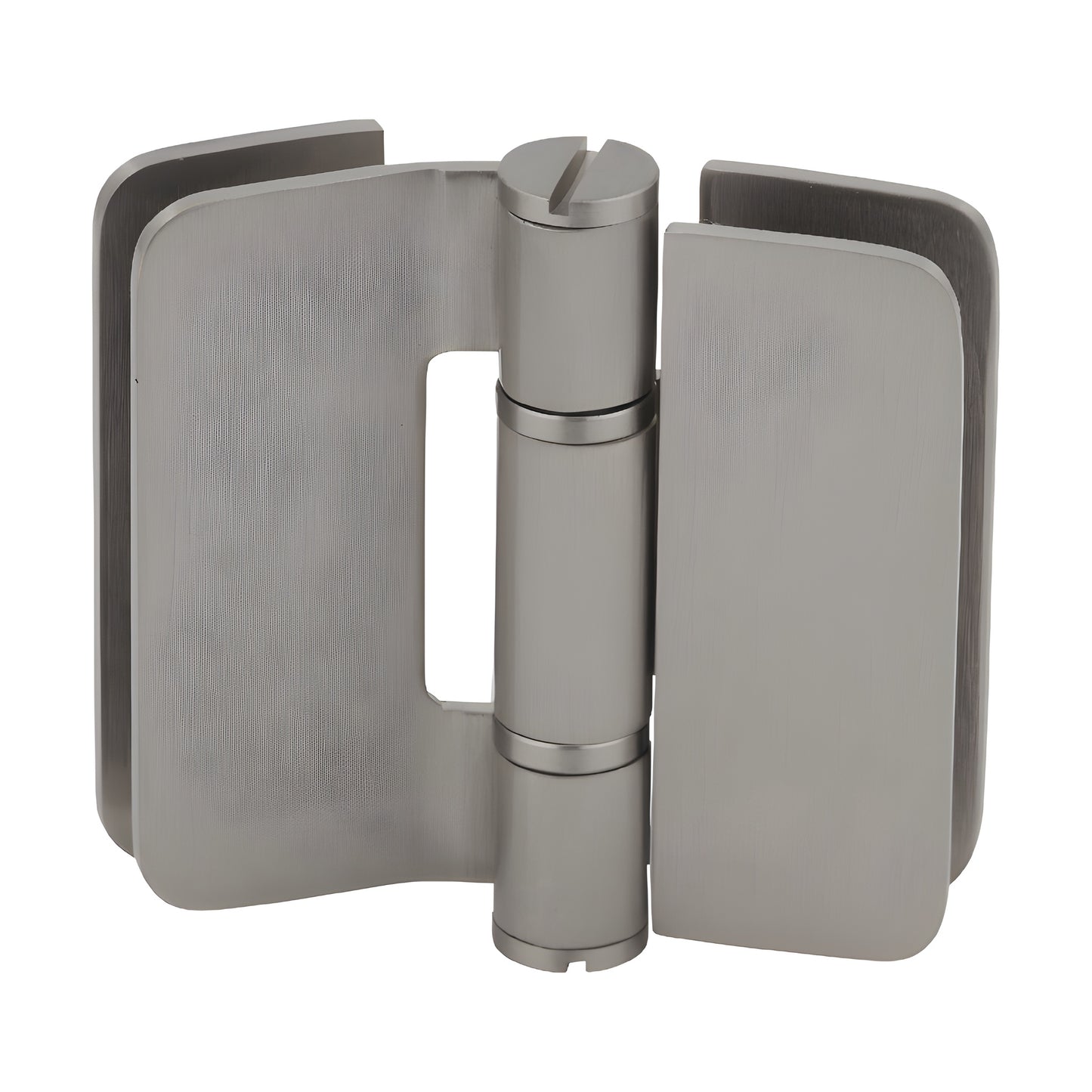

CRL Brushed Nickel Zurich 01 Series 180 Degree Glass-to-Glass Inswing Bi-Fold Hinge
CRL Brushed Nickel Zurich 01 Series 180 Degree Glass-to-Glass Inswing Bi-Fold Hinge
Regular price
$152.54 CAD
Regular price
Sale price
$152.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZUR01BN
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1



Description
Edge | Profile Square |
Finish/Color | Brushed Nickel |
Glass To Glass Angle | 180 |
Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
Height 3-1/8 in. | (79 mm) |
Material | Brass |
Maximum Door Weight - 2 Hinges 100 lbs. | (45.4 kg) |
Maximum Door Weight - 3 Hinges 150 lbs. | (68 kg) |
Maximum Door Width - 2 Hinges 36 in. | (914 mm) |
Maximum Door Width - 3 Hinges 40 in. | (1016 mm) |
Mounting | Type Glass To Glass |
Self-Centering No | Zurich |
Width - Door Portion 1-3/16 in. | (30 mm) |
Width - Sidelite Portion | 1-3/16 |
Overview
The CRL Zurich Series introduces professional hinges designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, ideal for 180-degree glass-to-glass inswing bi-fold applications.
These hinges, available in stainless steel or brass constructions, come in up to 13 beautiful finishes.
With only two holes required per hinge per panel and no cut-out necessary, they provide a seamless installation experience.
The Zurich Series offers versatility with special features for bi-fold applications, and they can support doors with weights up to 150 lbs, making them perfect for residential or hotel shower use.
These hinges, available in stainless steel or brass constructions, come in up to 13 beautiful finishes.
With only two holes required per hinge per panel and no cut-out necessary, they provide a seamless installation experience.
The Zurich Series offers versatility with special features for bi-fold applications, and they can support doors with weights up to 150 lbs, making them perfect for residential or hotel shower use.
