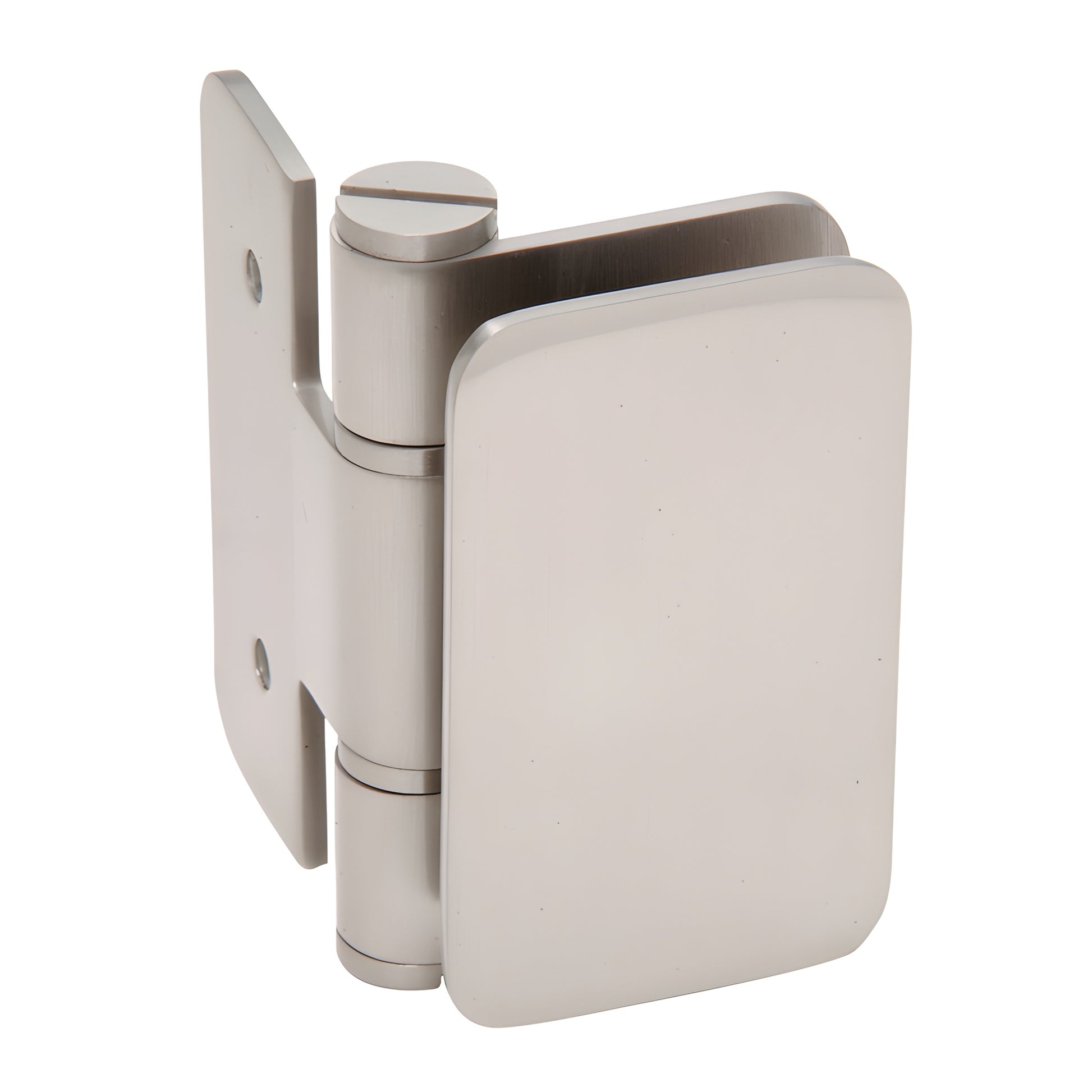

CRL Brushed Nickel Zurich 03 Series Wall Mount Inswing Hinge
CRL Brushed Nickel Zurich 03 Series Wall Mount Inswing Hinge
Regular price
$162.29 CAD
Regular price
Sale price
$162.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# ZUR03BN
Shipping Weight: 14.88 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.88 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
5 Degree Pre-Set No | No |
Back | Plate Offset |
Finish/Color | Brushed Nickel |
Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
Height 3-1/8 in. | (79 mm) |
Material | Brass |
Maximum Door Weight - 2 Hinges 100 lbs. | (45.4 kg) |
Maximum Door Weight - 3 Hinges 150 lbs. | (68 kg) |
Maximum Door Width - 2 Hinges 36 in. | (914 mm) |
Maximum Door Width - 3 Hinges 40 in. | (1016 mm) |
Mounting | Type Wall Mount |
Self-Centering No | Zurich |
Width 1-7/8 in. | (48 mm) |
Overview
The CRL Zurich Series Hinges are expertly crafted for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, making them perfect for bi-fold applications.
These professional hinges are built with stainless steel or brass and come in up to 13 stunning finishes.
Designed for easy installation, only two holes per hinge per panel are needed, with no cut-out required.
Offering robust support, two hinges can hold up to 100 lbs., while three hinges can support up to 150 lbs.
CRL Zurich Series Hinges are ideal for residential or hotel showers and are available in custom finishes upon request.
For optimal performance and to ensure compatibility, use only the template provided with the hinge.
Note, these hinges are not available in Germany.
These professional hinges are built with stainless steel or brass and come in up to 13 stunning finishes.
Designed for easy installation, only two holes per hinge per panel are needed, with no cut-out required.
Offering robust support, two hinges can hold up to 100 lbs., while three hinges can support up to 150 lbs.
CRL Zurich Series Hinges are ideal for residential or hotel showers and are available in custom finishes upon request.
For optimal performance and to ensure compatibility, use only the template provided with the hinge.
Note, these hinges are not available in Germany.
Specifications
Brochures & Literature
Quote Request Forms
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
