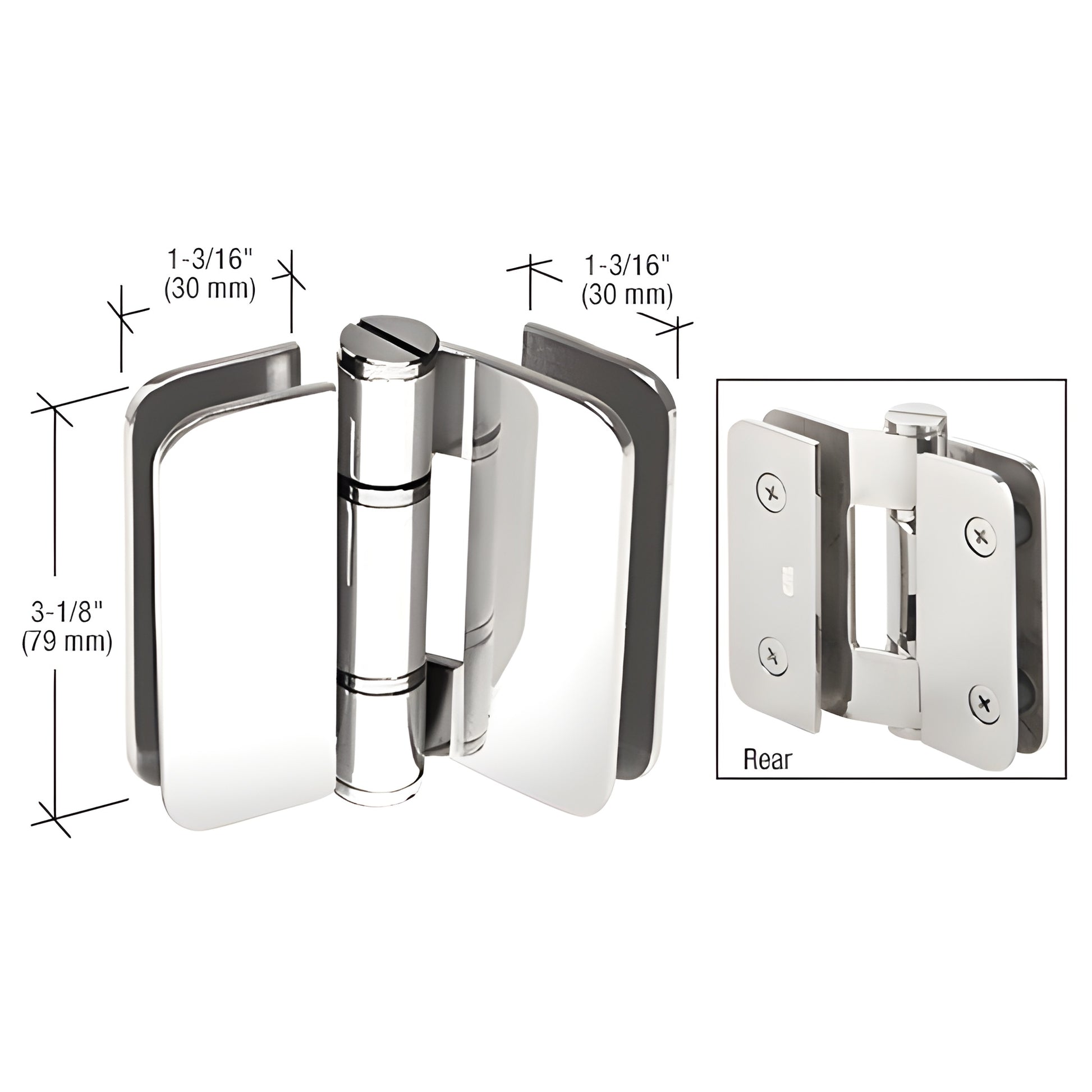

CRL Zurich 01 Polished SS 180° Glass-to-Glass Inswing Bifold Hinge

• 180 Degree Glass-to-Glass Inswing Bi-Fold Applications
• Available in several durable stainless steel and solid brass finishes (up to 13 finishes)
• For 5/16" (8 mm) to 3/8" (10 mm) monolithic tempered safety glass

CRL Zurich Series professional hinges (SKU: ZUR01PS) were CRL’s first bi-fold hinge offering. All Zurich models feature stainless steel or solid brass construction, require only two holes per hinge per panel (no cut-out), and ship with gaskets, screws, and glass fabrication dimensions.

Replacement parts: Use Item No. P512 replacement screws for cover plate, packaged in packs of 100 and available in multiple finishes.

Availability: NOTE: Not available in Germany.

Load & door size capacities

• Using two hinges with 5/16"–3/8" (8–10 mm) glass: holds up to 100 lbs (45 kg), max door width 36" (914 mm)
• Using three hinges with 5/16"–3/8" (8–10 mm) glass: holds up to 150 lbs (68 kg), max door width 40" (1.02 m)

Specifications

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Special Features: Ideal for bi-fold shower door applications. Use ZUR01 and ZUR03 for doors that fold into tub area; use ZUR02 and ZUR05 for doors that fold out to bathroom area.
• Construction: Stainless steel or solid brass
• Hinge Swing: See descriptions next to product photos
• Closing Type: Free-swinging
• Installation: Two holes required per hinge per panel (no cut-out); use template included
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request—contact the CRL Technical Sales Shower Door Department for lead times and options.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
