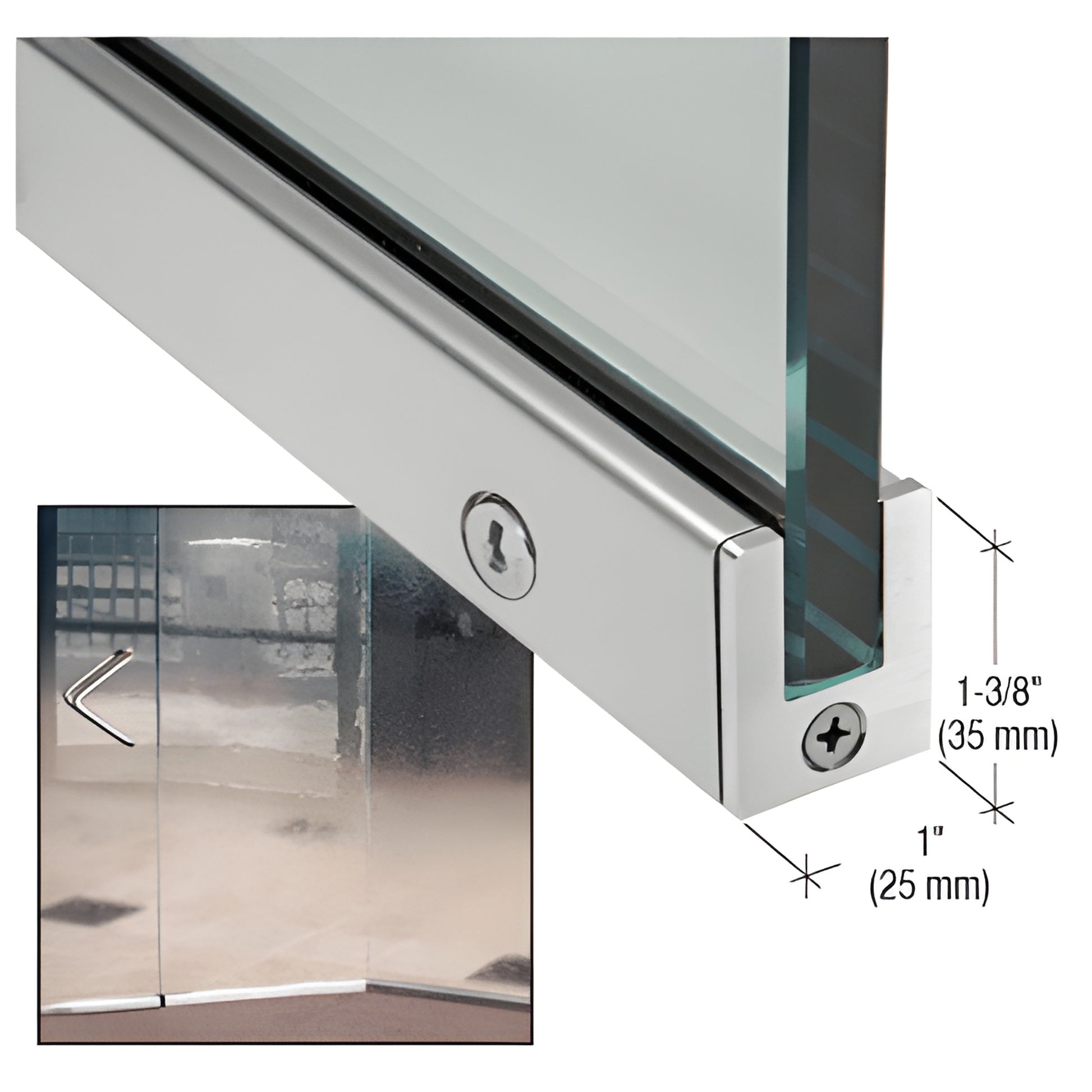

CRL Brushed Stainless LH Tall Slender Door Rail 35-3/4in x 1-3/8in

• For 1/2" (12 mm) monolithic tempered glass
• Available in three heights with or without a lock
• Dry-glaze slender profile door rails are only 1" (25 mm) wide
• Brushed or polished stainless steel finishes
• Custom 1" (25 mm) slender-profile vertical stiles available on special order

CRL Slender Profile Door Rails (SKU: SP35BS12SL) measure only 1" (25 mm) wide and are offered in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Designed for 1/2" tempered glass display cases and glass doors, these dry-glaze rails deliver a minimalist, low-visual-impact look ideal for retail showcases, museum cases, and architectural glass partitions. Rails are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead door closers, floor-mounted closers, or pivots. All rails can be fitted with the 7150 Series Cam Lock for secure display-case applications; other locking options may be available on special order.

All Slender Profile Rails are engineered for field installation with easy adjustability to correct typical site tolerances. Construction: aluminum core clad in alloy 304 stainless steel for a durable, long-lasting finish. Dry-glaze design keeps the aesthetic slim while providing secure glass retention.

ORDERING INFORMATION:
• Compatible pivots: CRL9040WBP Top Pivot and 1NT402 Bottom Pivot.
• End caps are included with all Slender Profile Door Rails.
• Specify finished door rail length (including end caps) when ordering custom-length rails.
• When ordering the 7150 Series Cam Lock, specify door handing and required glass fabrication (see template).
• Rails are prepped to receive any Slender Profile Door Rail Pivot Insert (ordered separately).
• Installation instructions and adjustment wrenches included.

Product Warning:

Custom rails are made to your specified size and finish and are not returnable. Glass fabrication is required for lock installation—refer to the template. Maximum width for the Slender Profile Door Rail System is 42" (1.07 m).
