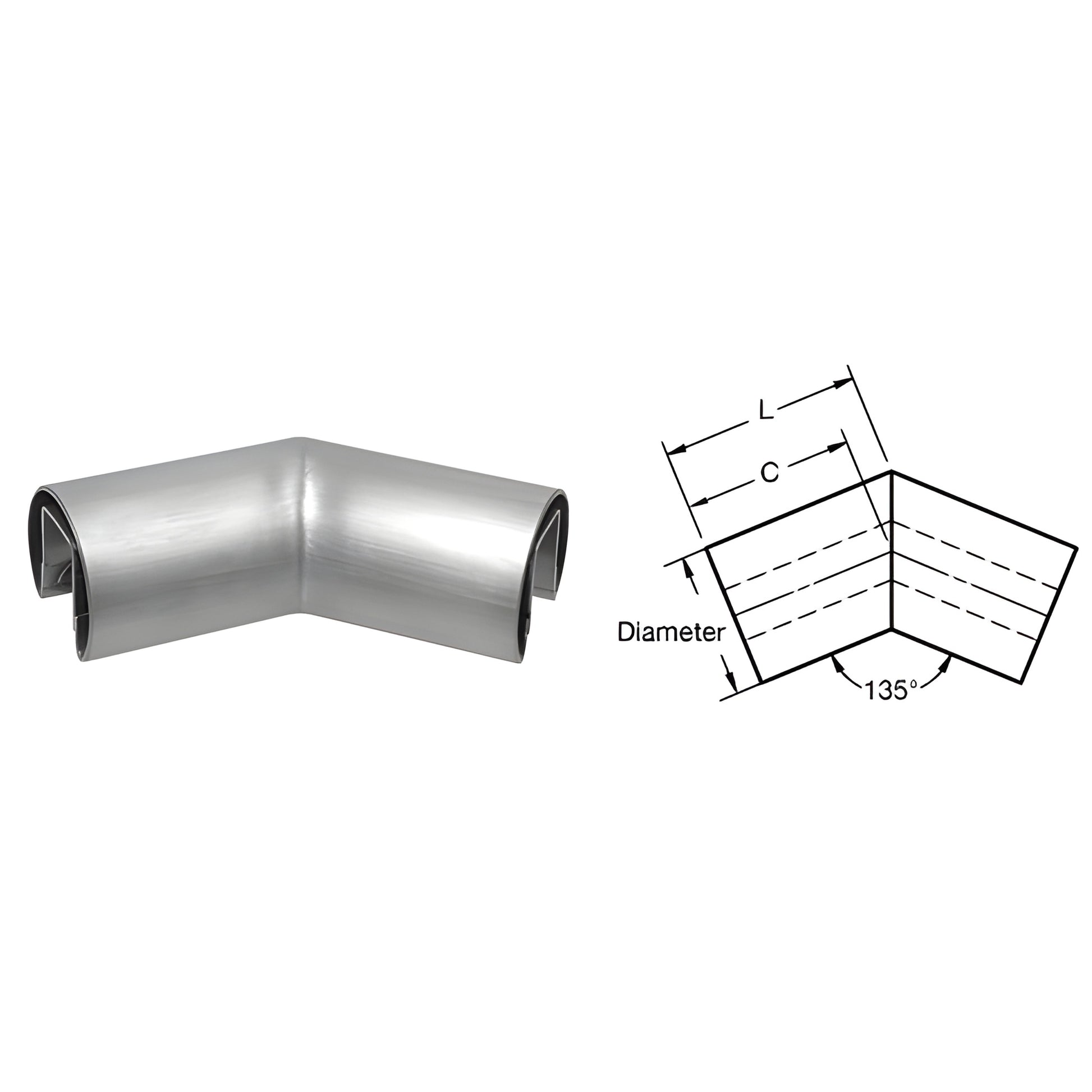

CRL Brushed Stainless 135° Corner 1.66" for 1/2" & 5/8" Glass Railing
Item# GR16H3BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Angle
135
Diameter
1.66 in. (42 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Thickness
.05 in. (1.27 mm)
- Welded and finished stainless corner
- Ready-to-install interior slip-fit for glass railing
- Requires two connector sleeves (not included)
This CRL Interior Slip-Fit Horizontal Corner (SKU: GR16H3BS) fits 1/2" or 5/8" (12 or 16 mm) thick glass and provides a hairline joint assembly option for straight lengths of cap rail. Designed for interior glass railing and glass partition applications, the welded and finished corner enables a clean, continuous cap-rail appearance.
Use CRL 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner (sold separately). Each horizontal corner is fabricated, finished, and individually packed. Standard material is stainless alloy 304; stainless 316 is available by special order—contact our Technical Sales Department for pricing and lead time.
NOTE: With 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. With 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Order SKU GR16H3BS today or contact CRL Technical Sales for a custom 316 stainless quote.
