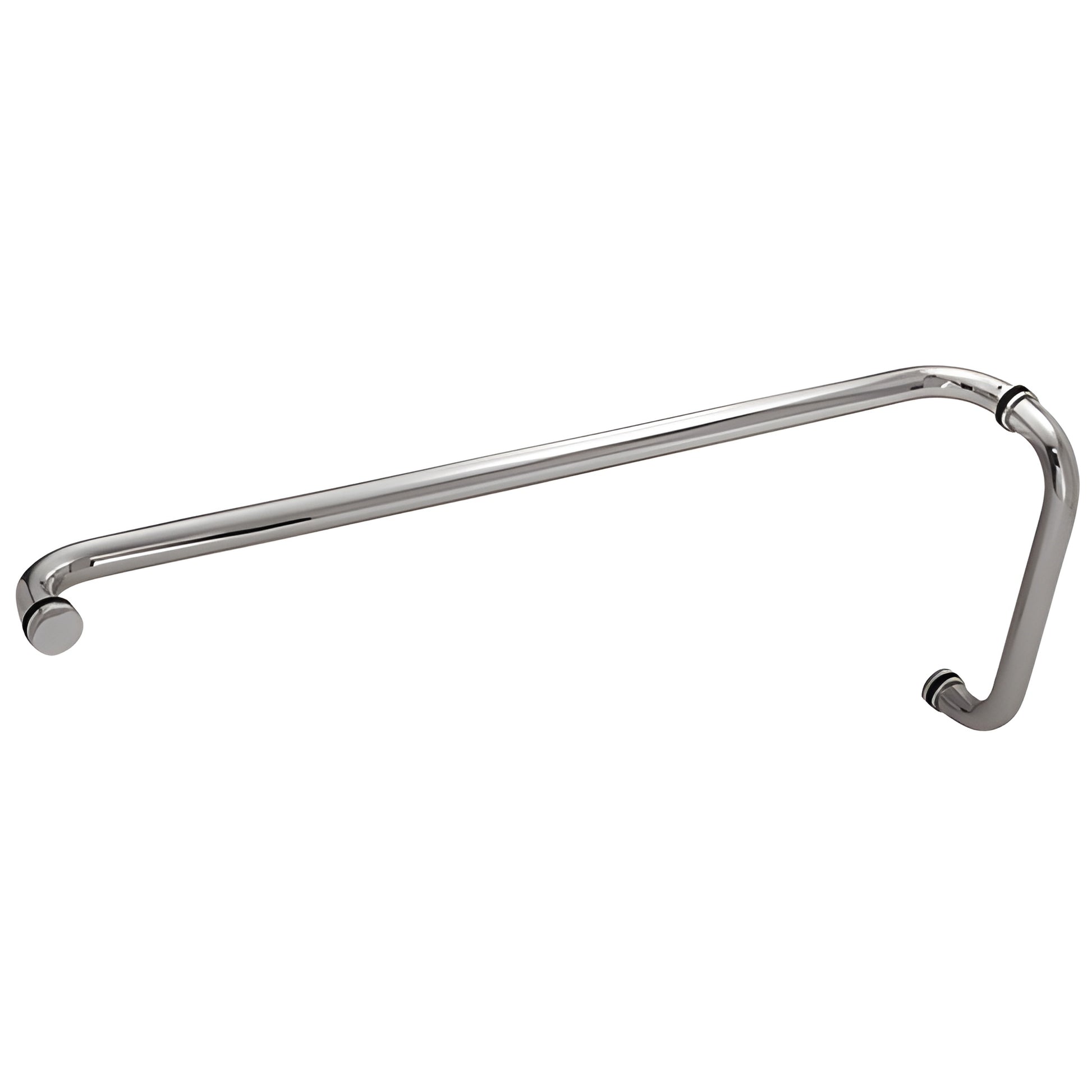

CRL Brushed Stainless 12 x 28 Back-to-Back Push-Pull Door Handle Set
CRL Brushed Stainless 12 x 28 Back-to-Back Push-Pull Door Handle Set
Regular price
$179.10 CAD
Regular price
Sale price
$179.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM12X28BS
Shipping Weight: 2.595 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.595 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Pull Mounting Center To Center
12 in. (305 mm)
Push Mounting Center To Center
28 in. (711 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) glass (including monolithic tempered glass)
- 1" (25.4 mm) diameter stainless steel or brass tubing
- Five architectural finish options
- Designed for glass-mounted straight push/pull handle applications
This CRL Glass Mounted Straight Push/Pull Handle Combination (SKU: CM12X28BS) fits 3/8"–3/4" glass and is offered in multiple sizes and attractive architectural finishes for commercial and residential tempered glass doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional: 1-1/4" (32 mm) Diameter Available on Special Order
INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: Glass-mounted design for straight push/pull applications, multiple architectural finishes, available brass or stainless steel tubing, and special-order larger diameter options.
Buy now: Add SKU CM12X28BS to your cart or contact CRL for pricing and availability.
