Product Details
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- 1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Five Beautiful Architectural Finishes
- Use Monolithic Tempered Glass

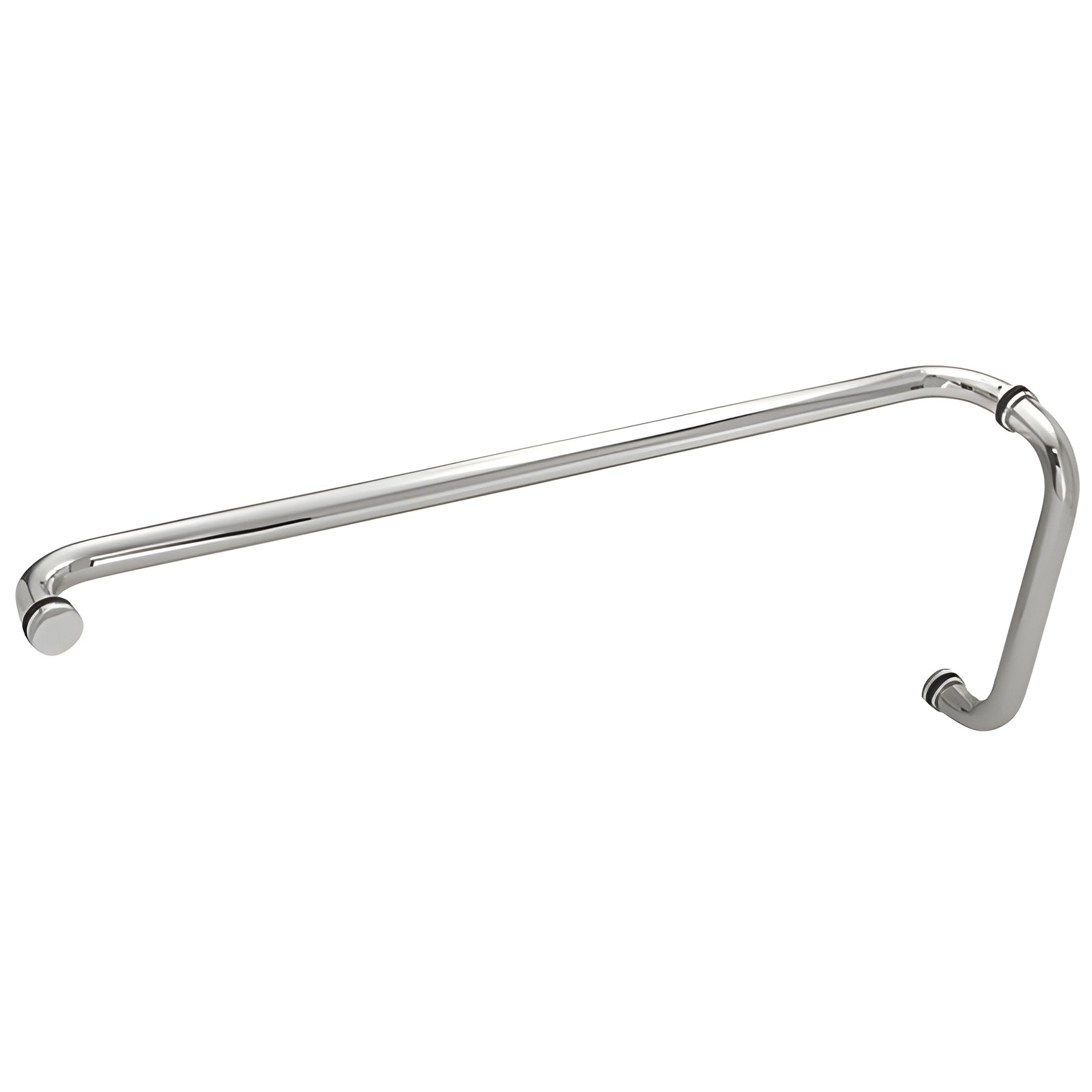

This CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8" (16 mm) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Offset: 3" (76 mm) Center-to-Center
Optional 1-1/4" (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
