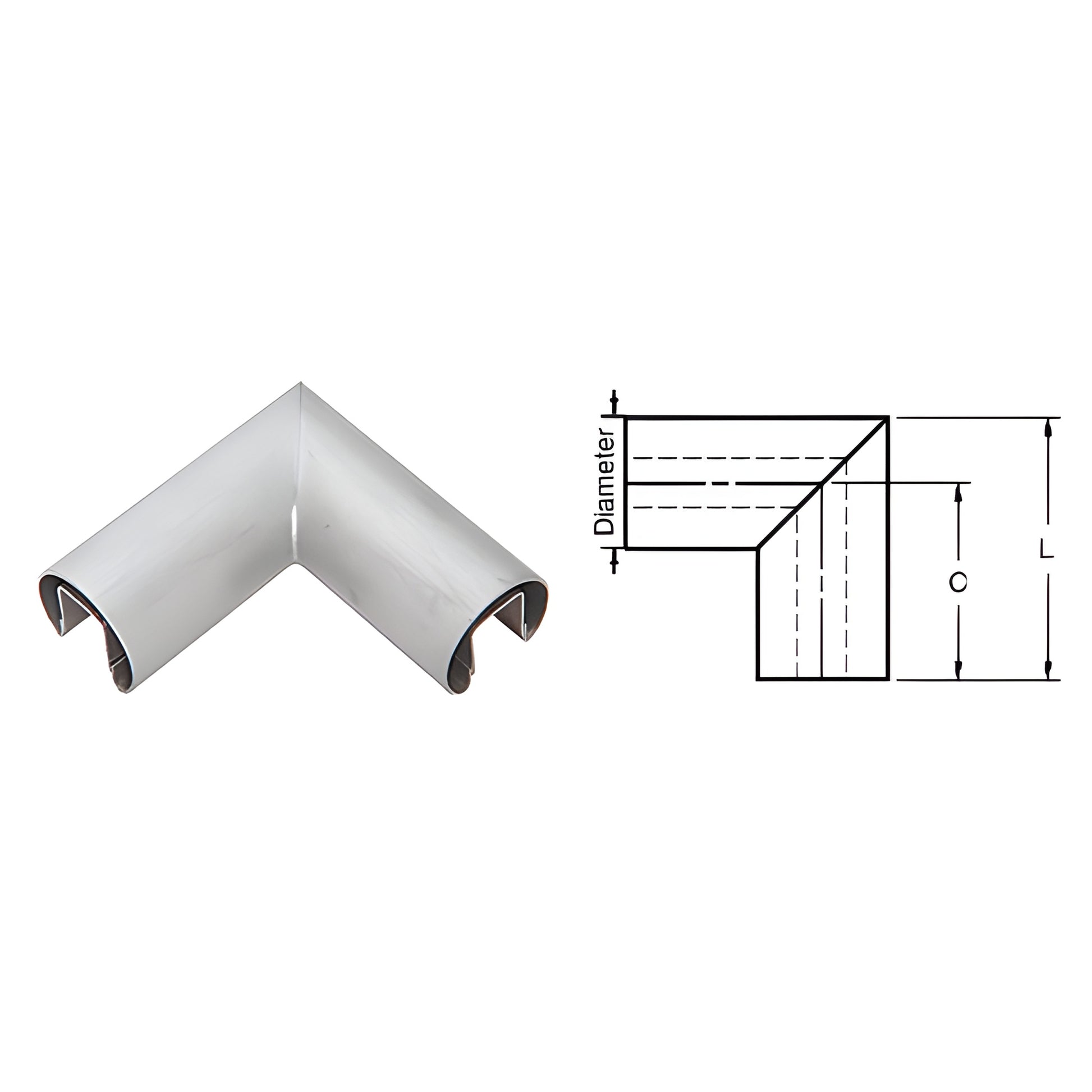

CRL Brushed Stainless 2.5in 90° Corner for 1/2"–5/8" Glass Railing

• Welded, finished, and ready-to-install horizontal corner
• Available in four architectural finishes
• Requires two connector sleeves per corner (not included)

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) glass provide hairline joint assemblies with straight lengths of CRL Cap Rail. For a secure, permanent bond use CRL Metal Contact Cement Cat. No. 32629. Two connector sleeves are required with each corner. These GR25HBS corners are ideal for architectural glass railing and cap rail corner installations where a finished, welded corner is needed.

Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail and are welded and finished to match. Standard stainless alloy is 304; stainless 316 is available by special order. Brass corners use alloy 260 as standard. These premium materials and factory finishes distinguish CRL cap rail corners for demanding architectural and glass railing projects.

Please contact CRL Technical Sales for specifications, lead times, or a quote on GR25HBS.

Installation Note: With 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass (except when using GR15 Series Cap Rail Corners). For GR15 Series corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.

Product Warning:
When used with 1/2" (12 mm) glass, secure with GR5PV Cap Rail Vinyl and 95CBL Silicone. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.

Stainless Steel Advisory:

Ready to order GR25HBS cap rail
