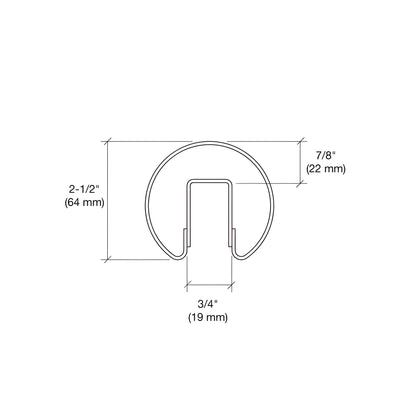

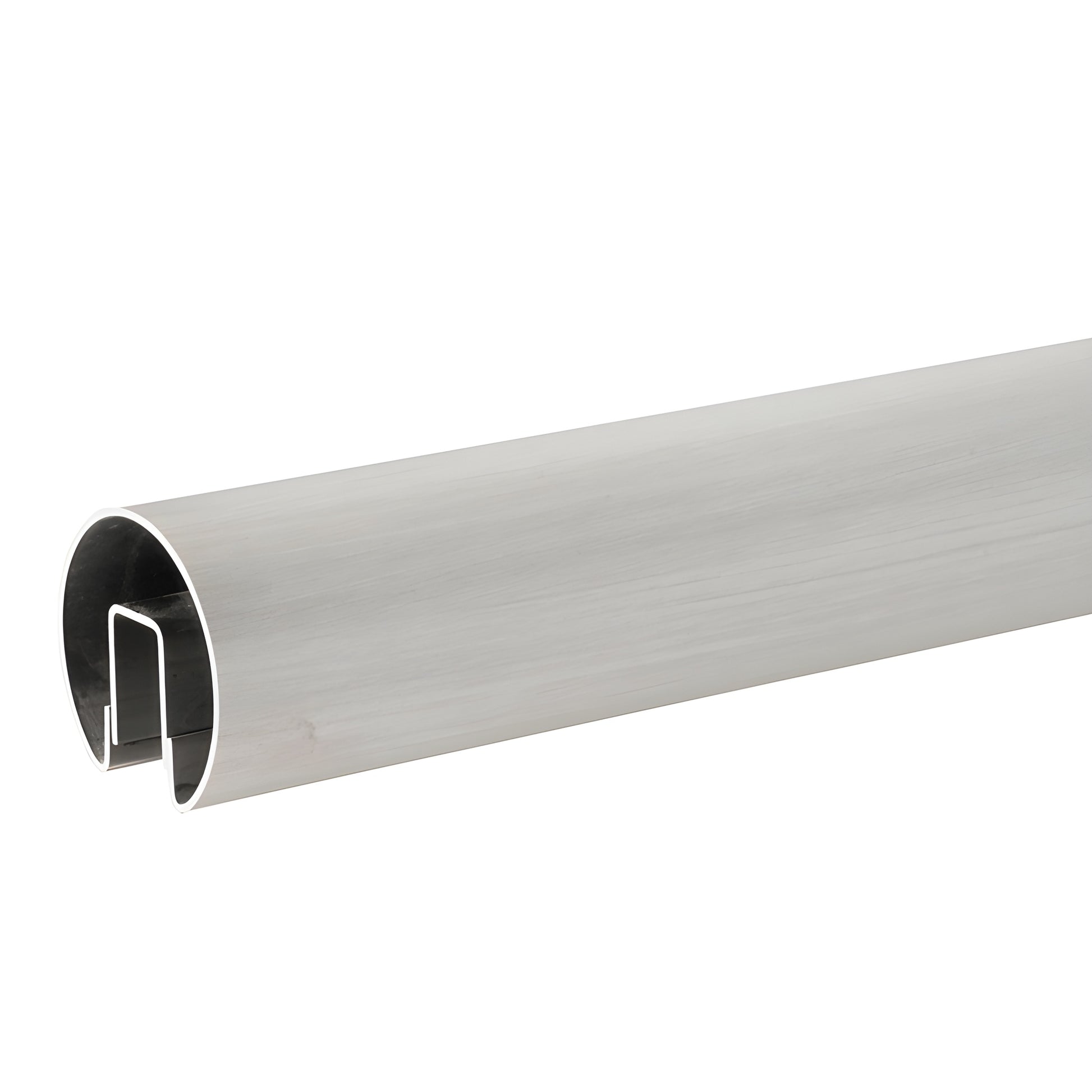

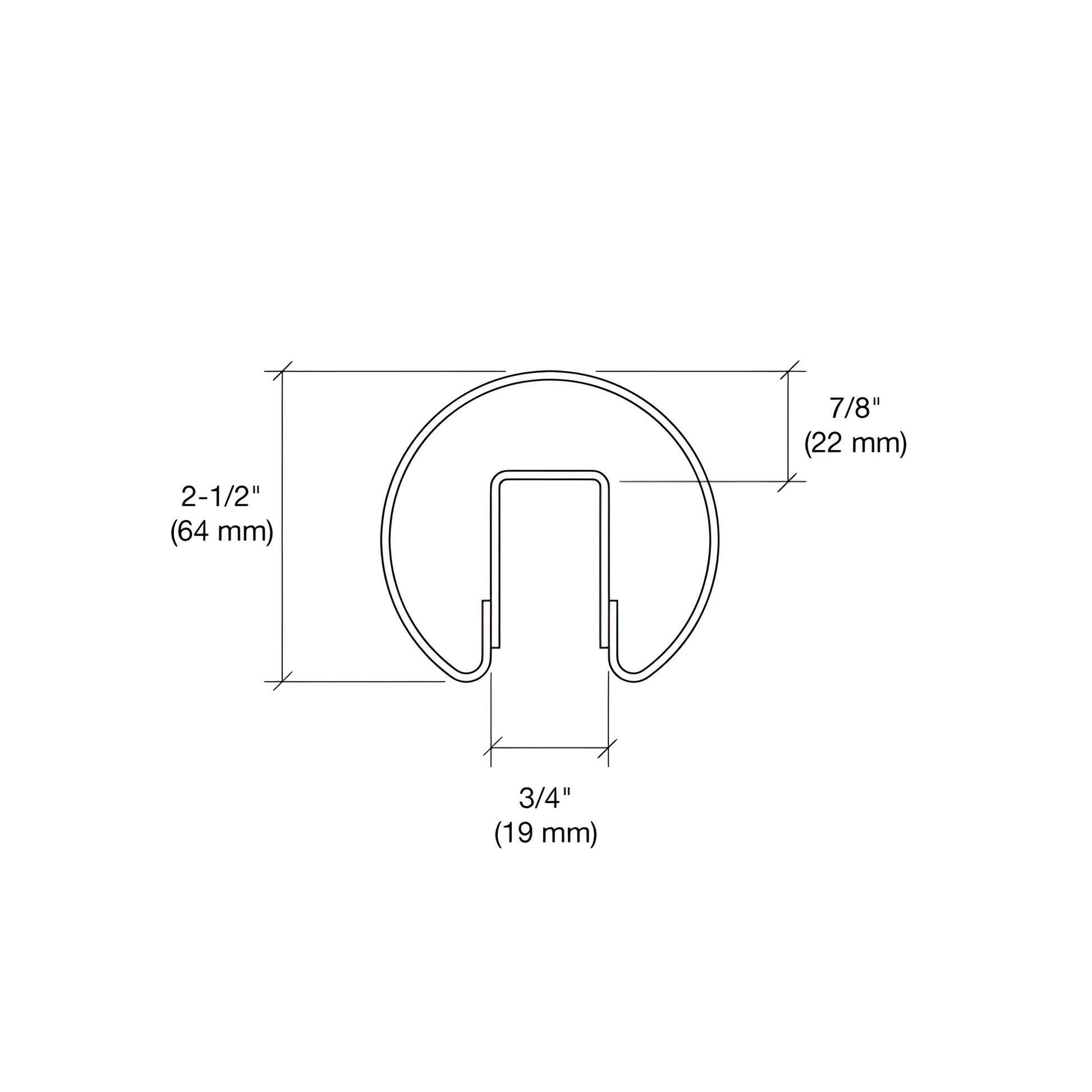

CRL Brushed Stainless Steel 2-1/2in Cap Rail for 1/2in Glass - 120in

• Bump-Formed and Welded stock lengths: 120" (3.05 m) and 168" (4.27 m)
• Available in seven diameters: 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes for interior and exterior applications
• Connects to a variety of fabricated corners and end caps
• Cut-to-size or custom fabricated lengths available
• Stainless: Alloy 304 standard; Alloy 316 available in select sizes
• Brass: Alloy 260 standard
• Use Sleeve No. GR25CSS for connections

CRL's Premium Cap Rails (SKU: GR25BS) are manufactured using a proprietary Bump-Forming process that delivers tighter tolerances, consistent radii, and superior fit compared with roll-formed cap rails. Welds on both sides of the internal channel increase strength and stability, reducing stress, spring-back, twist, and discoloration—ideal for high-quality glass railing and architectural handrail applications.

All CRL Premium Cap Rails are formed with precision tooling to maintain uniform diameters and enable smooth hairline transitions at splices, corners, and end caps. The welded internal channel improves fabrication stability for reliable, repeatable results. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections, and use connector sleeves to join cap rails.

Glass compatibility and installation notes:

• With 1/2" (12 mm) glass: use Cat. No. GR5PV cap rail vinyl and 95CBL Silicone.
• With 5/8" (16 mm) glass: secure with 95CBL Silicone and shims.
• With 3/4" (19 mm) glass: use 95CBL Silicone and shims.

For connector sleeves, see Connector Sleeves. Standard stainless offering is Alloy 304; Alloy 316 is available by special order. Contact CRL Technical Sales for custom sizes, finishes, availability, or a quote.
