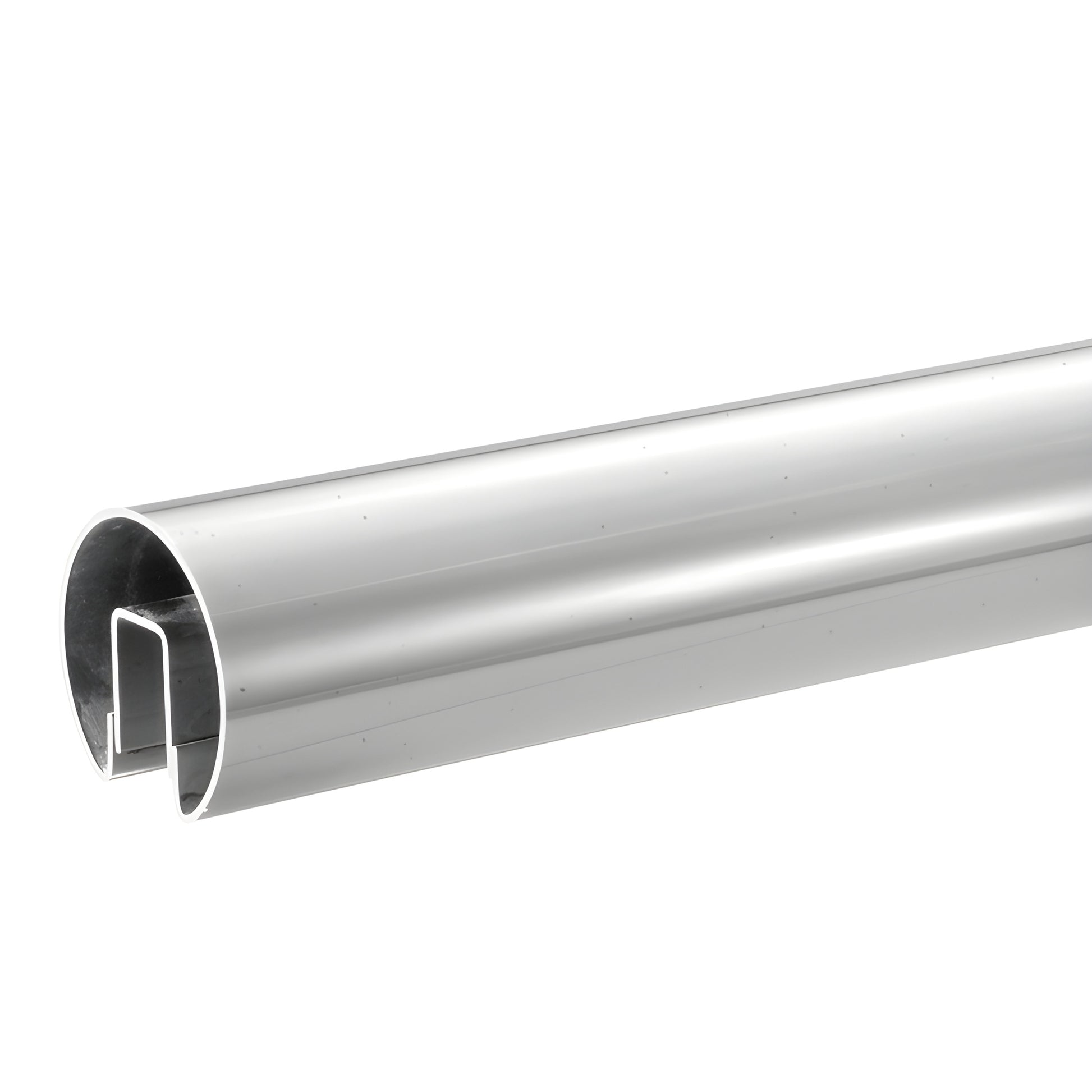

CRL Polished Stainless Cap Rail 2.5in for 1/2in Glass - 120in

• Bump-Formed and welded stock lengths: 120" (3.05 m) and 168" (4.27 m)
• Available diameters: seven sizes from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes
• Connects to a variety of fabricated corners and end caps
• Cut-to-size or custom fabricated lengths available
• Stainless: Alloy 304 standard; Alloy 316 available in select sizes
• Brass: Alloy 260 standard
• Use sleeve No. GR25CSS for connections

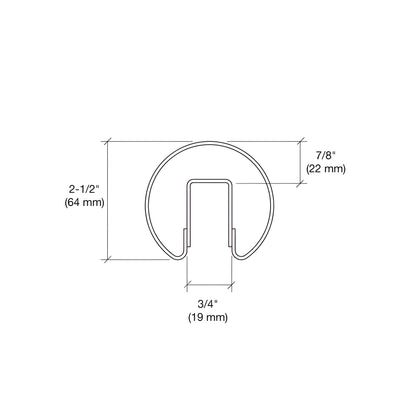

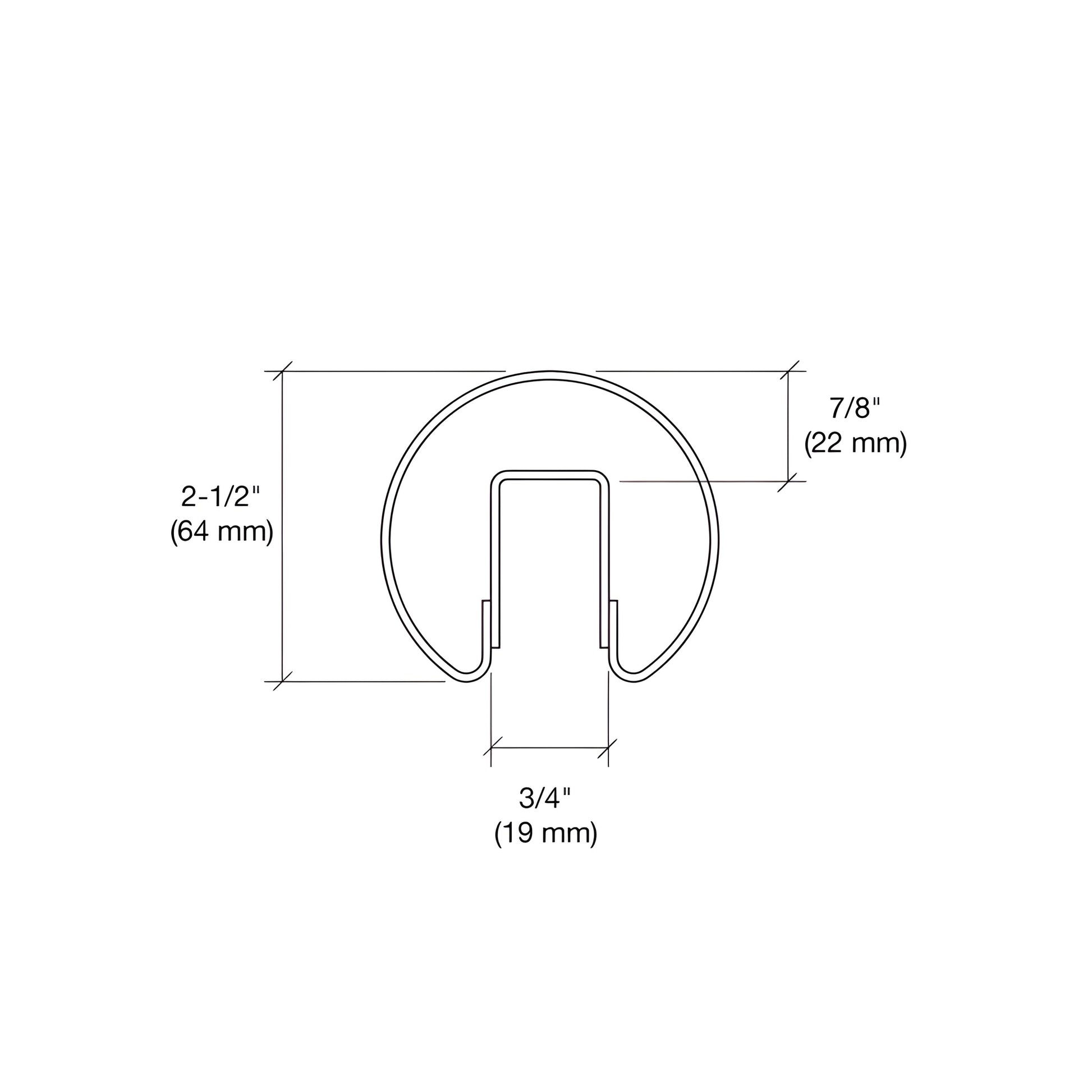

CRL Premium Cap Rails (SKU: GR25PS) are manufactured using a precision Bump-Forming process that delivers tighter tolerances, consistent radius, and reduced stress compared with roll-formed cap rails. Welds on both sides of the internal channel increase strength and stability, enabling cap rails to fit into welded corners without twist or discoloration — ideal for architectural glass railings and interior/exterior handrail trim.

All Premium Cap Rails are formed with precision tooling for uniform diameters and smooth hairline transitions at splices, corners, and end caps. The welded internal channel improves fabrication strength and stability. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond at all connections, and Connector Sleeves to join cap rails. Sold in 120" (3.05 m) lengths; 168" available.

Glass installation notes:

• With 1/2" (12 mm) glass: use Cat. No. GR5PV cap rail vinyl and 95CBL Silicone.
• With 5/8" (16 mm) glass: secure with 95CBL Silicone and shims.
• With 3/4" (19 mm) glass: use 95CBL Silicone and shims.

Please contact CRL Technical Sales for installation guidance or a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use the Connector Sleeves to connect cap rails. Shims and related accessories available here.
