Product Details
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- *1-1/4" (32 mm) Diameter Stainless Steel (Cat. No. CD24X24BS125 Model only). Offset: 3" (76 mm) Center-to-Center Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes INCLUDES: 2 Each: Through-Bolts for Glass Mounting 4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets Product Warning: THE TB2CH, TB4CH, AND F40WK SERIES ARE NOT COMPATIBLE WITH THE CD24X24BS125. CONTACT TECHNICAL SALES FOR ASSISTANCE. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

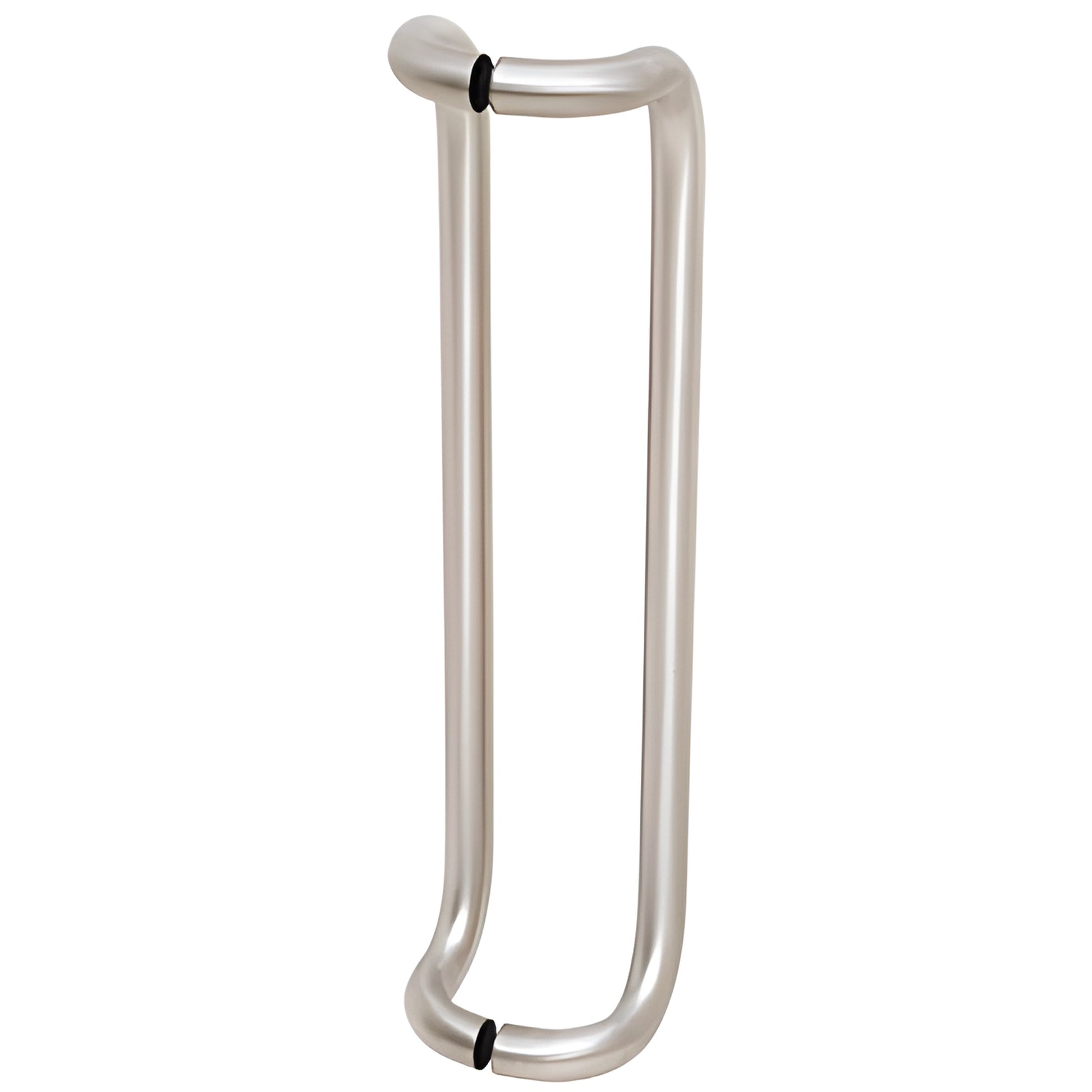

This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel or Brass Tubing. *1-1/4" (32 mm) Diameter Stainless Steel (Cat. No. CD24X24BS125 Model only).
Offset: 3" (76 mm) Center-to-Center
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Product Warning:
THE TB2CH, TB4CH, AND F40WK SERIES ARE NOT COMPATIBLE WITH THE CD24X24BS125. CONTACT TECHNICAL SALES FOR ASSISTANCE.
Stainless Steel Advisory:Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
