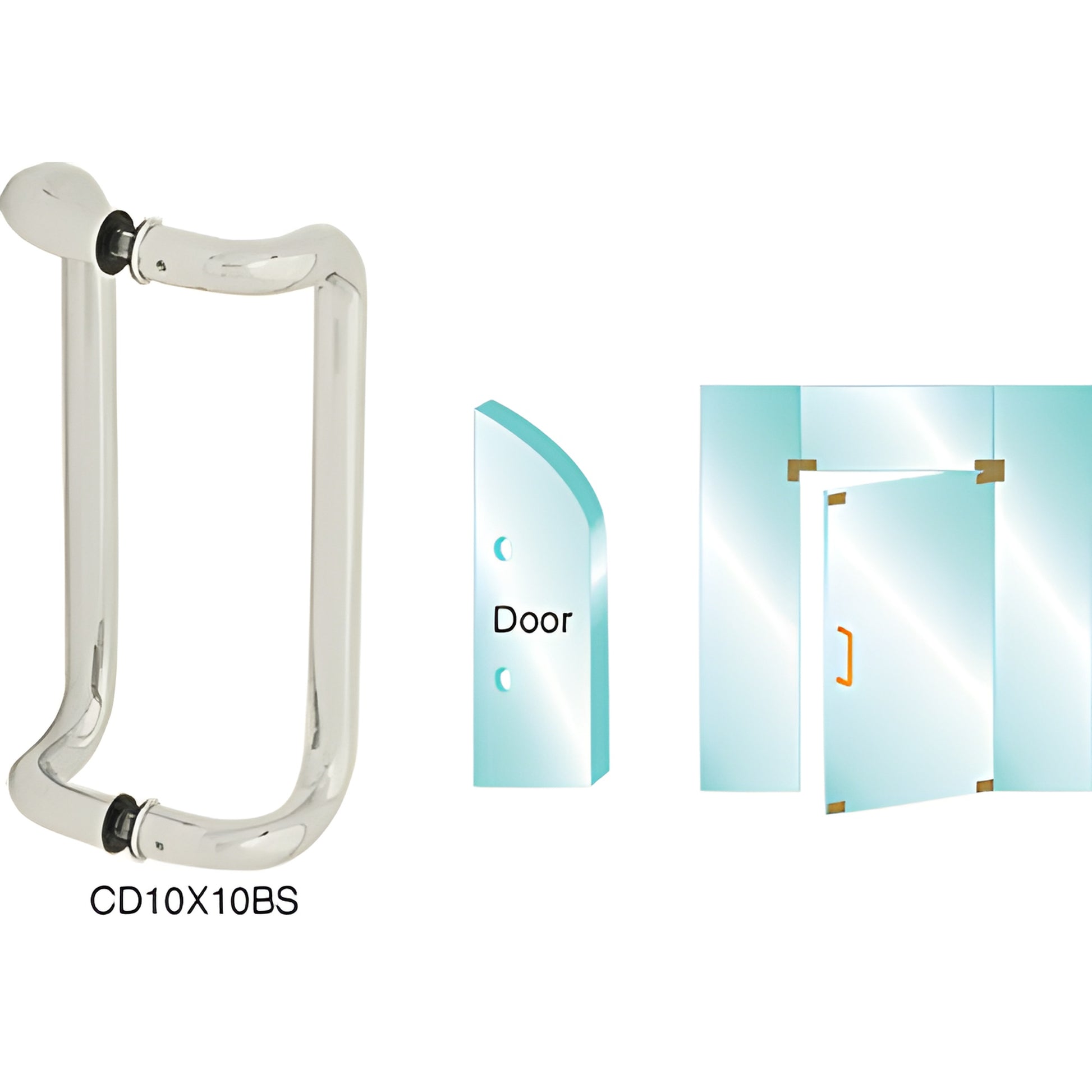

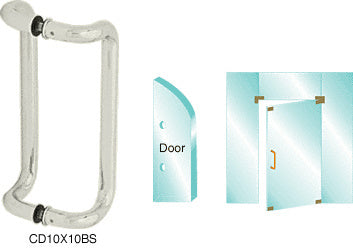

CRL 10 in Brushed Stainless Offset Glass Door Pull Handle
CRL 10 in Brushed Stainless Offset Glass Door Pull Handle
Regular price
$154.45 CAD
Regular price
Sale price
$154.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD10X10BS
Shipping Weight: 3.987 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.987 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through‑bolts for mounting
- Use monolithic tempered glass
CRL Glass Mounted Standard Pull Handle — premium glass door pull ideal for frameless glass doors, shower doors, and commercial glass entrances. Available in three lengths and multiple architectural finishes to match your project.
SPECIFICATIONS:
- For Use With: 3/8" to 3/4" (10 to 19 mm) glass
- Construction: 1" (25 mm) diameter stainless steel or brass tubing
- *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only)
- Offset: 3" (76 mm) center-to-center
- Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
- 2 each: through‑bolts for glass mounting
- 4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. Periodic maintenance is recommended to help maintain the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: CD10X10BS — Order now to get matching finish hardware and durable glass door pull performance.
