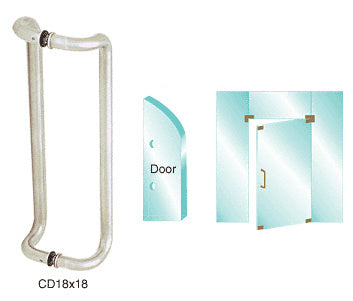

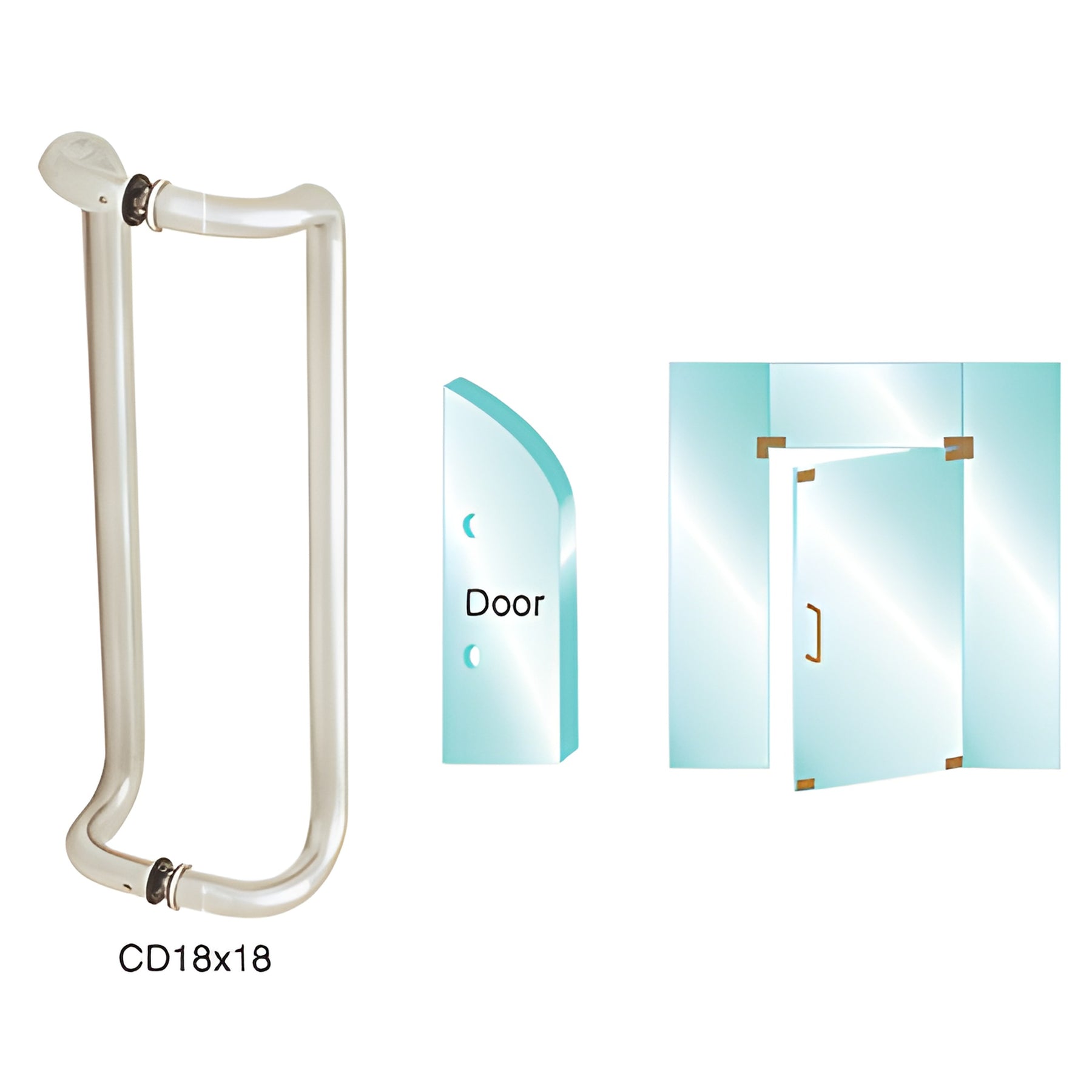

CRL 18 in Brushed Stainless Steel Offset Glass Door Pull Handle
CRL 18 in Brushed Stainless Steel Offset Glass Door Pull Handle
Regular price
$193.40 CAD
Regular price
Sale price
$193.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD18X18BS
Shipping Weight: 1.32 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.32 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Includes matching finish metal washers and through-bolts for glass mounting
- Designed for monolithic tempered glass
CRL Glass Mounted Standard Pull Handle (SKU: CD18X18BS) — a durable architectural glass door pull available in multiple sizes and finishes for commercial and residential glass doors.
SPECIFICATIONS:
- For Use With: 3/8" to 3/4" (10 to 19 mm) glass
- Construction: 1" (25 mm) diameter stainless steel or brass tubing
- Note: 1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only)
- Offset: 3" (76 mm) center-to-center
- Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
- 2 each: through-bolts for glass mounting
- 4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order this premium glass door pull handle (SKU: CD18X18BS) today to upgrade your architectural glass doors—contact us to check finish availability and lead time.
