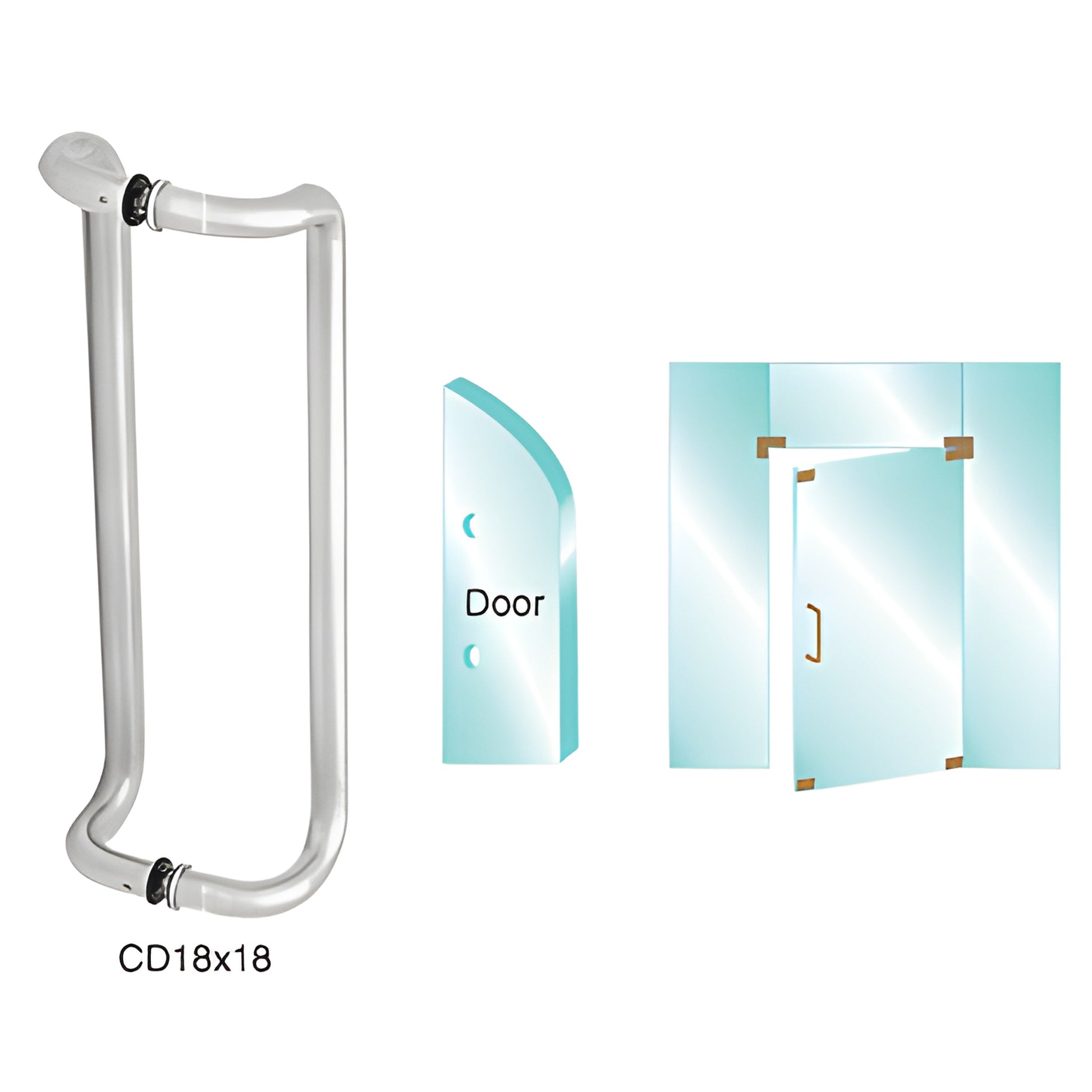

CRL 18 in Polished Stainless Steel Glass Door Offset Pull Handle
CRL 18 in Polished Stainless Steel Glass Door Offset Pull Handle
Regular price
$203.77 CAD
Regular price
Sale price
$203.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD18X18PS
Shipping Weight: 1.36 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.36 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass—ideal for tempered monolithic glass doors
- Complete with matching finish metal washers and through-bolts for secure glass mounting
- Designed for glass door pull applications using monolithic tempered glass
CRL Glass Mounted Standard Pull Handle (SKU: CD18X18PS) — available in multiple sizes and architectural finishes for commercial and residential glass door projects. Long-tail keywords: glass door pull handle for 3/8 to 3/4 inch tempered glass, architectural finish glass pull, through-bolt glass pull handle.
SPECIFICATIONS:
- For Use With: 3/8" to 3/4" (10 to 19 mm) glass
- Construction: 1" (25 mm) diameter stainless steel or brass tubing
- *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only)
- Offset: 3" (76 mm) center-to-center
- Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
- 2 through-bolts for glass mounting
- 4 matching finish 1-1/4" (32 mm) diameter metal washers and rubber gaskets
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
Ready to spec this glass door pull for your project? Contact CRL or add SKU CD18X18PS to your cart to get started.
