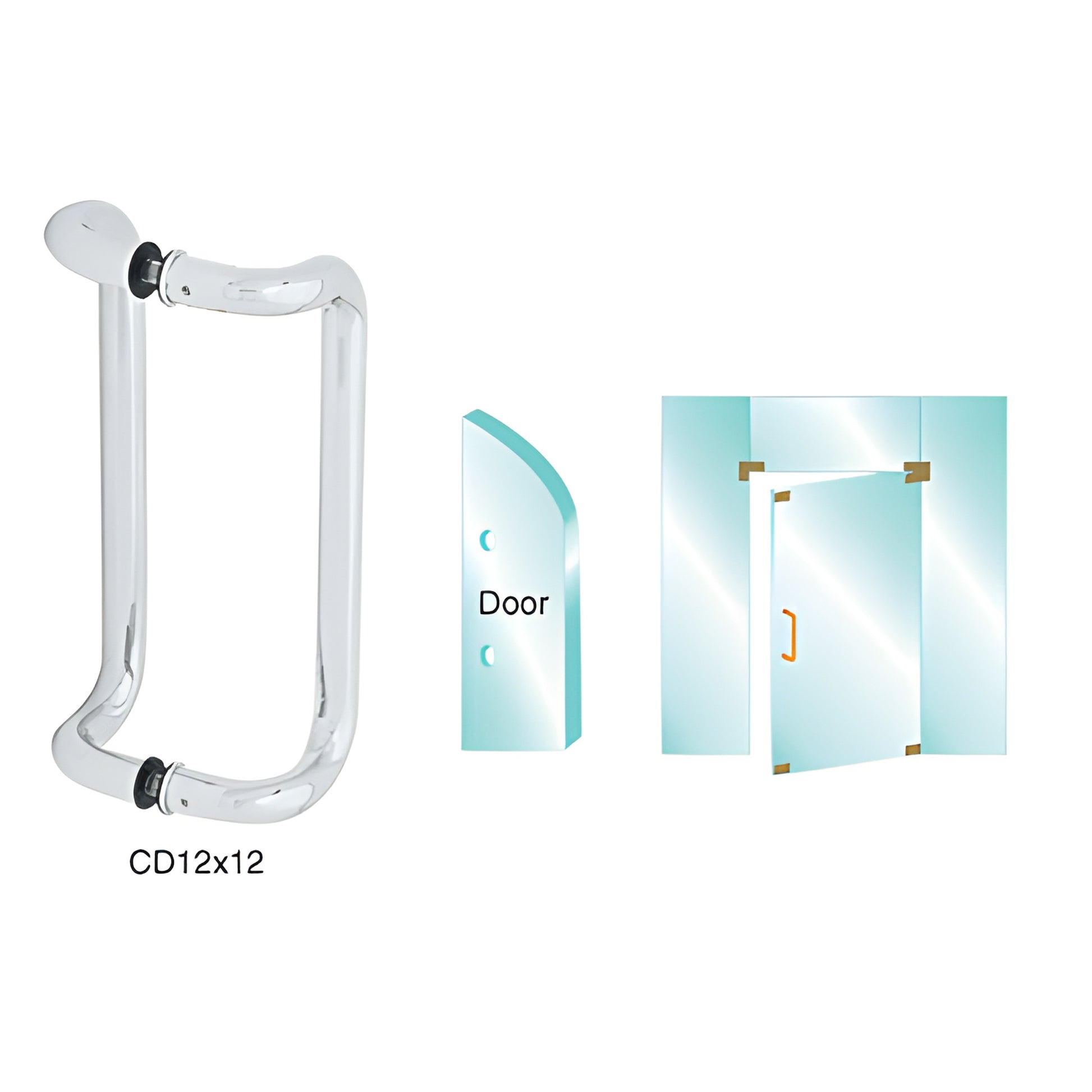

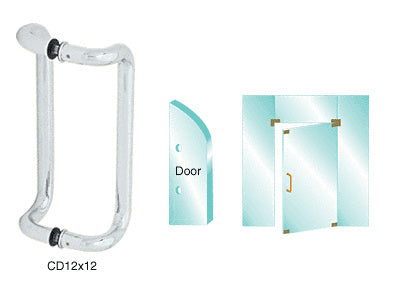

CRL 12in Polished Stainless Offset Glass Door Pull Handle
CRL 12in Polished Stainless Offset Glass Door Pull Handle
Regular price
$176.52 CAD
Regular price
Sale price
$176.52 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD12X12PS
Shipping Weight: 3.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes for commercial and residential glass doors
- Fits 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
- Includes matching finish metal washers, rubber gaskets, and through-bolts for secure mounting
- Designed for monolithic tempered glass — glass fabrication requires two 5/8" (16 mm) diameter holes
This CRL Glass Mounted Standard Pull Handle (SKU: CD12X12PS) is available in multiple sizes and architectural finishes for glass door applications.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing
Note: 1-1/4" (32 mm) diameter stainless steel applies to CD24X24BS125 model only
Offset: 3" (76 mm) center-to-center
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Durable, architectural glass door pull handle for commercial storefronts, office glass doors, and interior glass partitions. Order SKU CD12X12PS now or contact us for volume pricing and glass fabrication guidance.
