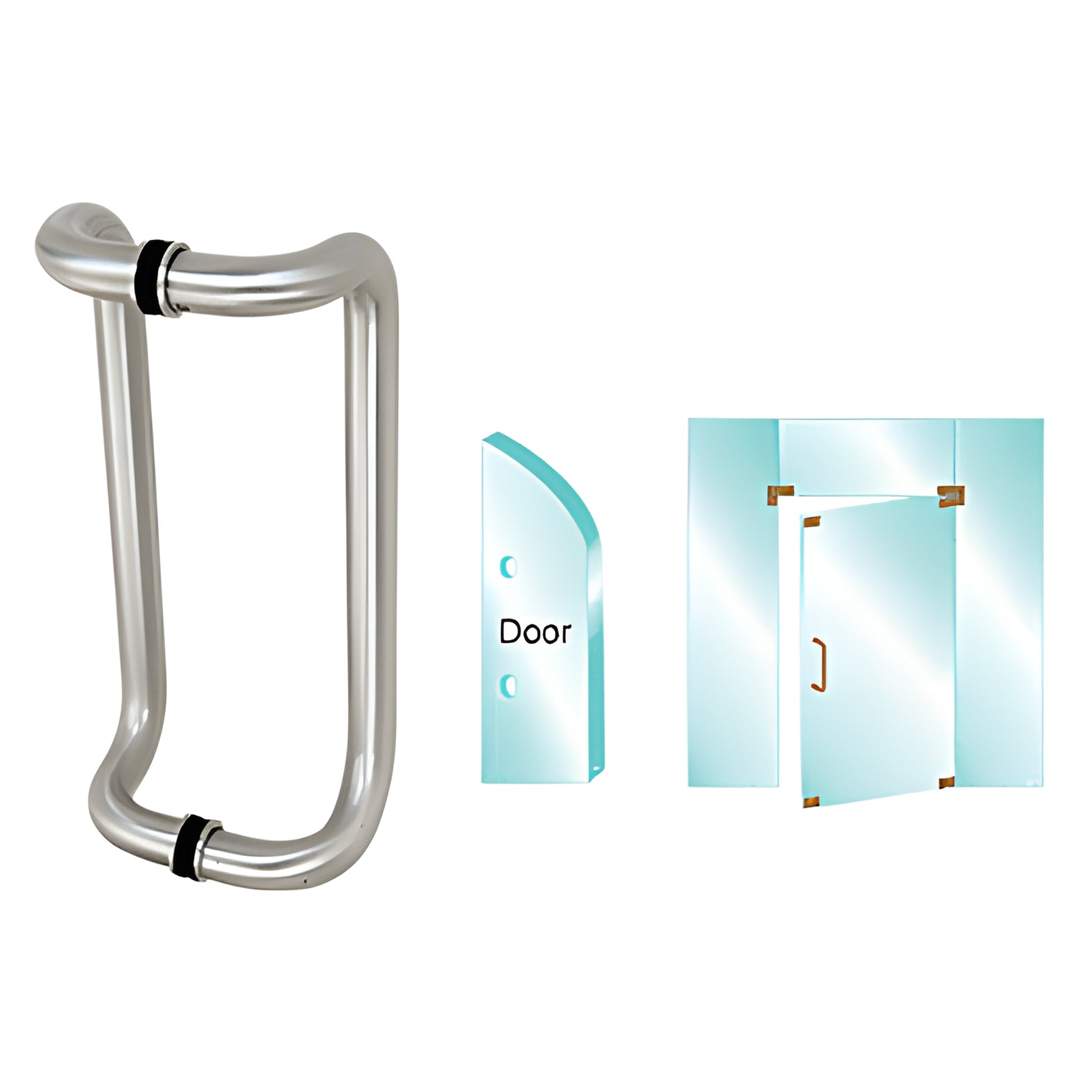

CRL 12 in Satin Anodized Offset Glass Door Pull Handle
CRL 12 in Satin Anodized Offset Glass Door Pull Handle
Regular price
$195.98 CAD
Regular price
Sale price
$195.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD12X12SA
Shipping Weight: 3.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)

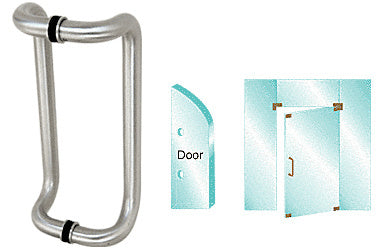

Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through-bolts for mounting
- Use monolithic tempered glass
This CRL Glass Mounted Standard Pull Handle (SKU: CD12X12SA) is a heavy-duty glass door pull available in three lengths and multiple architectural finishes—ideal for commercial and residential glass doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing
Note: 1-1/4" (32 mm) diameter stainless steel offered on select model (CD24X24BS125)
Offset: 3" (76 mm) center-to-center
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
