• Satin anodized 1 in tube back-to-back glass door pull, 10 in C-C, fits 3/8-3/4 in glass - SKU CD10X10SA
1 1

CRL

CRL 10-in Satin Anodized Offset Glass Door Pull Handle

CRL 10-in Satin Anodized Offset Glass Door Pull Handle

$172.63 CAD
$172.63 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CD10X10SA
Shipping Weight: 2.07 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1 in. (25 mm)
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • Stocked in up to five architectural finishes
  • For use with 3/8" to 3/4" (10 to 19 mm) glass
  • Complete with matching finish metal washers and through‑bolts for mounting
  • Designed for monolithic tempered glass

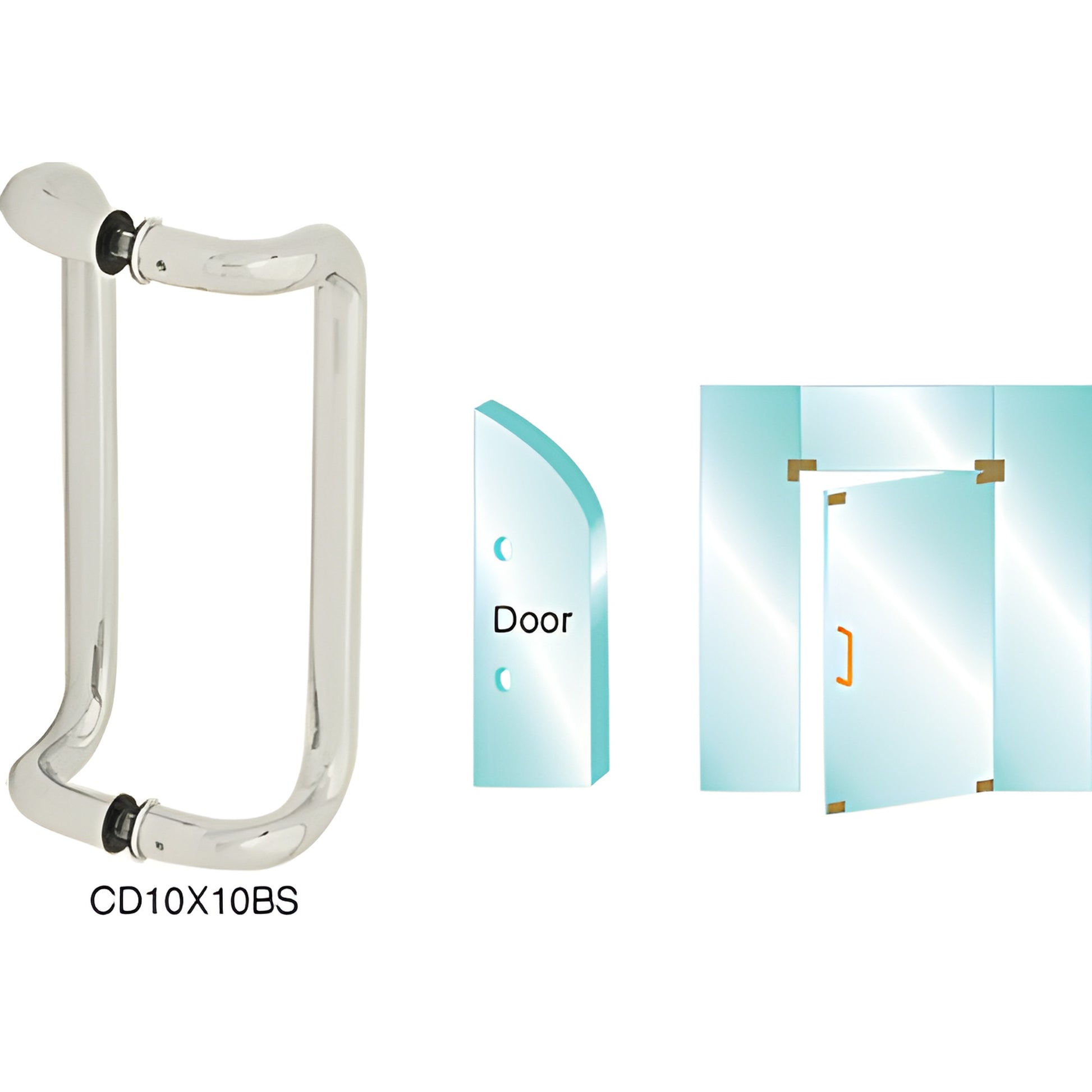

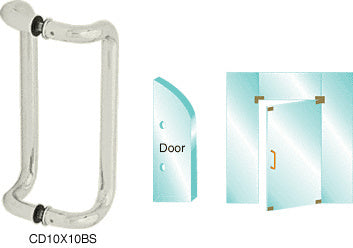

This CRL glass-mounted standard pull handle fits commercial glass doors and storefronts and is offered in multiple sizes and architectural finishes for coordinated design.


SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing; 1-1/4" (32 mm) diameter stainless steel on CD24X24BS125 model only
Offset: 3" (76 mm) center-to-center
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Order this glass door pull handle (SKU CD10X10SA) or contact CRL for samples and lead times.
