CRL 36 in Brushed Stainless 90Β° Corner Post Kit for Glass Railing
CRL 36 in Brushed Stainless 90Β° Corner Post Kit for Glass Railing
Regular price
$1,487.48 CAD
Regular price
Sale price
$1,487.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CR36LKBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Degree
180
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- Post kits for interior and exterior hand rail and guard rail applications
- Engineered to meet or exceed building code requirements
- Lowβmaintenance 304βgrade stainless steel alloy postsβready to install
- Two standard stainless steel finishes available
- Standard 36" and 42" tall post kits in stock; custom heights available
- U.S. Patent 8,944,414 B2

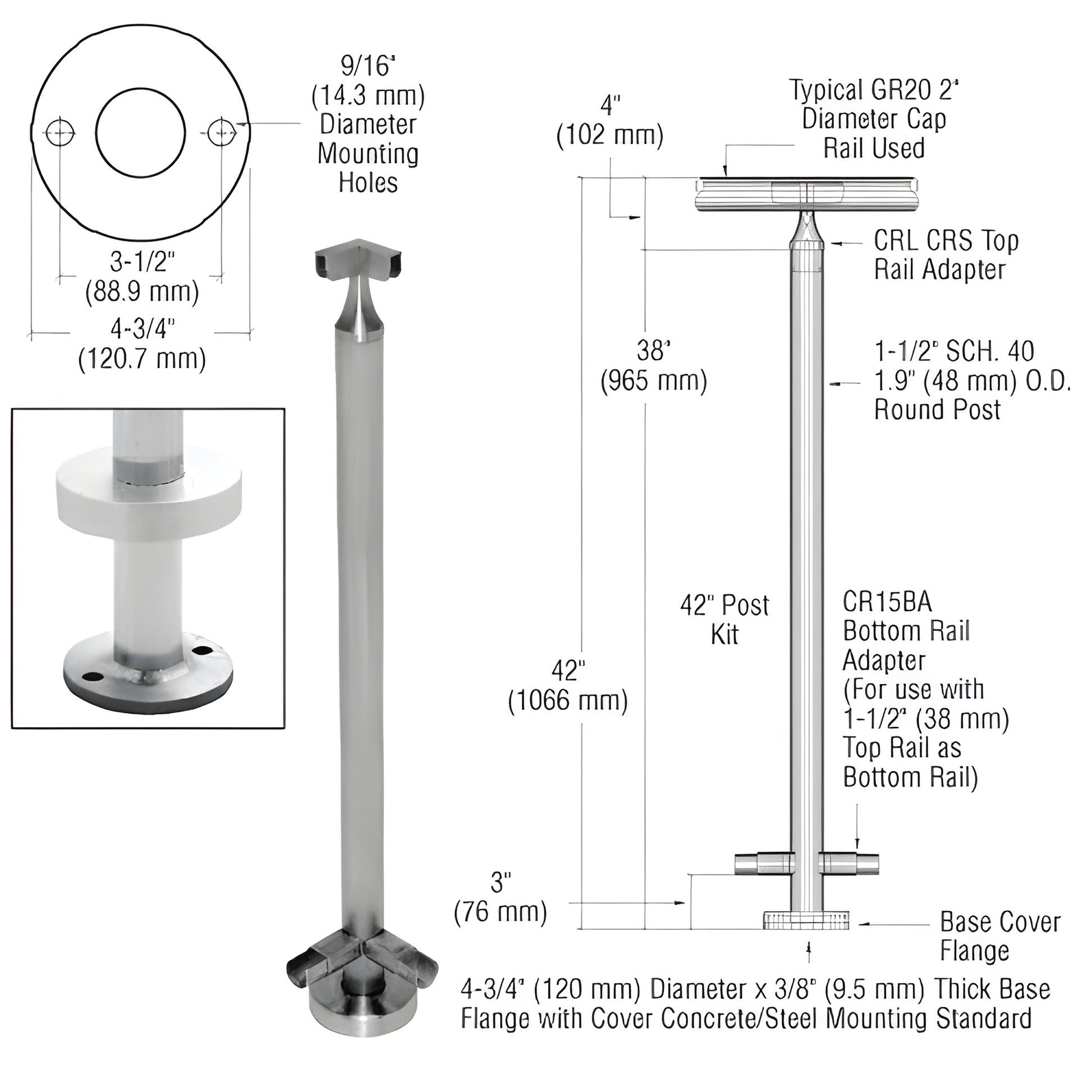

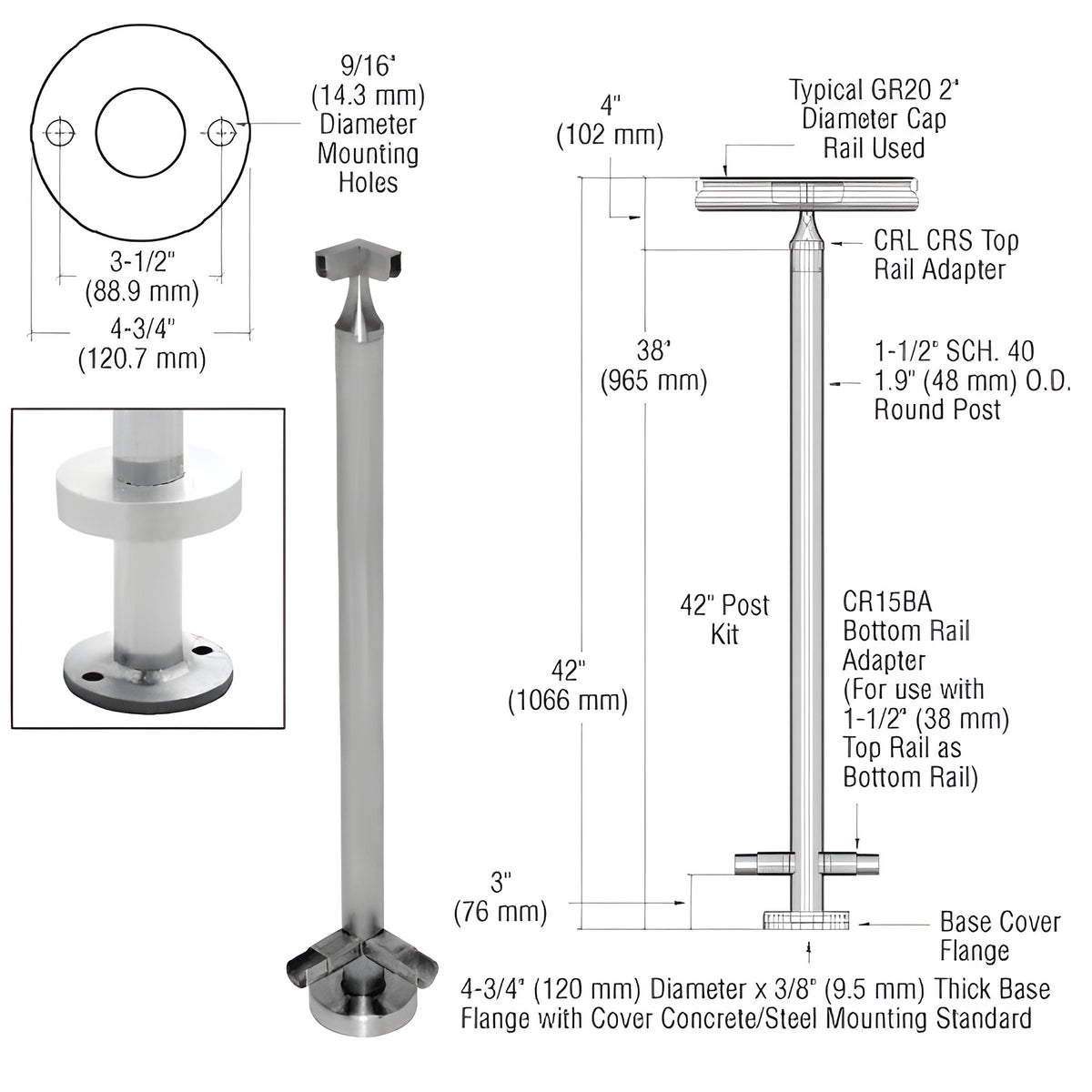

CRLβs CRS Surface Mounted Post Kits are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing (304 grade) and are designed for guard rail and hand rail systems. Kits ship complete with welded base plate, base cover flange, top rail adapter, and bottom rail adapter for fast, onβsite installation.
Standard CRS 36" and 42" tall post kits are configured for 2" (51 mm) diameter top rails and 1β1/2" (38 mm) diameter bottom rails. Custom post heights and alternate top cap rail sizes are available by special orderβcontact Technical Sales for details on custom CR36LKBS configurations and lead times.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rustβproof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
SKU: CR36LKBS
Order CRS surface mounted post kits for codeβcompliant, lowβmaintenance stainless guard railsβcontact CRL Technical Sales or Customer Service to place a custom order or request specifications.
