CRL Brushed SS 50.8mm 90° Corner Connector for 21.5/25.5mm Railing
CRL Brushed SS 50.8mm 90° Corner Connector for 21.5/25.5mm Railing
Regular price
$334.23 CAD
Regular price
Sale price
$334.23 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# L20HBS
Shipping Weight: 10.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.32 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Welded and finished for durable, hairline joint assemblies
- Available in four architectural finishes
- Ready-to-install slip-fit horizontal corner (SKU: L20HBS)
- Requires two connector sleeves (not included)

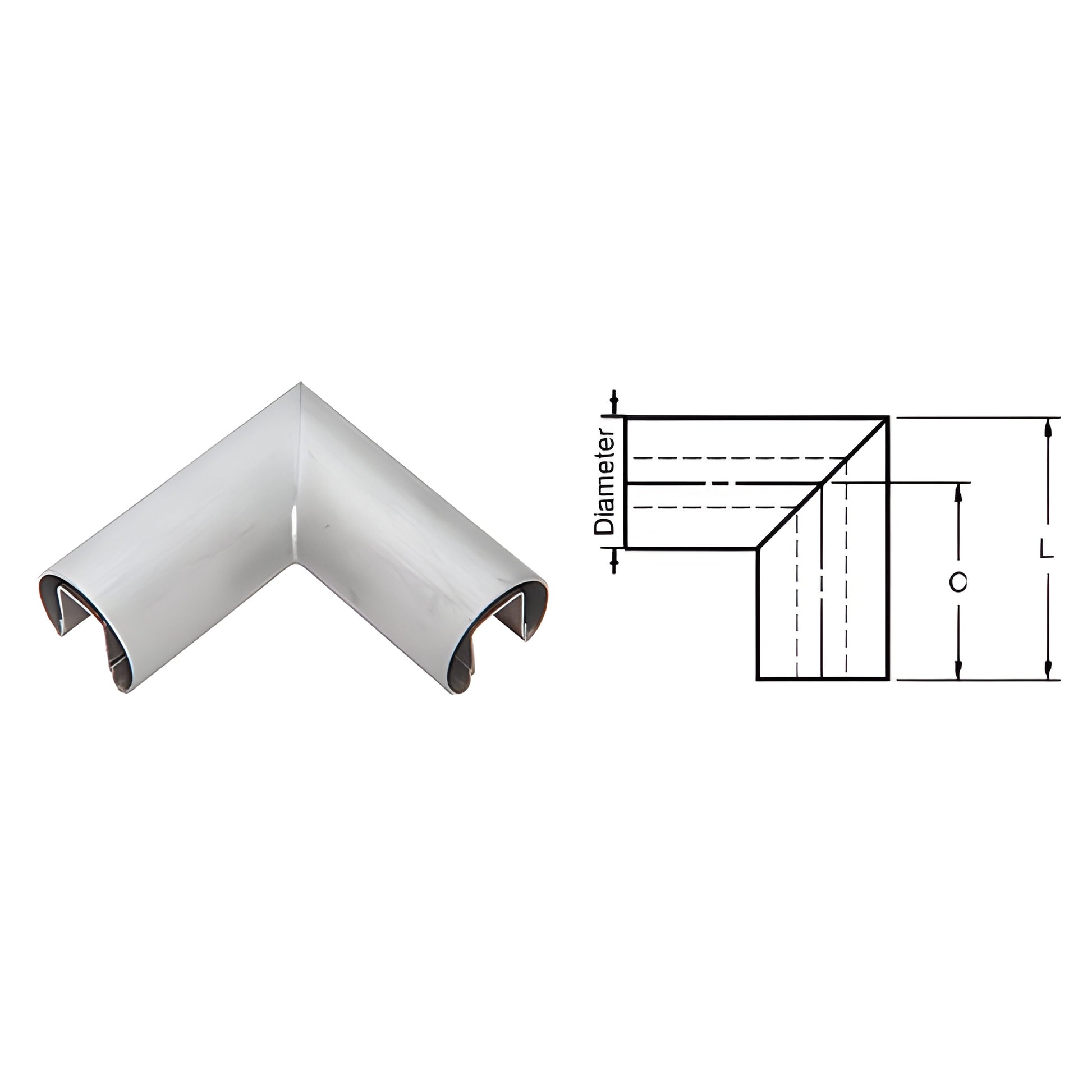

This CRL Slip-Fit Horizontal Corner (L20HBS) fits 27/32" or 1-1/16" (21.52 or 25.52 mm) thick laminated glass and creates precise hairline corner joints when used with straight lengths of CRL Cap Railing. Use CRL 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required with each corner.
Each horizontal corner is fabricated, finished, and individually packed. Standard stainless alloy is 304; stainless alloy 316 is available by special order. For stainless railing components and custom finish options, contact CRL Railing Products Technical Sales Department.
Product Warning:
NOTE: When used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the L20HBS Slip-Fit Horizontal Corner for secure, low-profile laminated glass cap railing installations — contact CRL to place your order or request a quote.
