CRL Brushed Stainless 90° Left-Hand Sidelite Patch Fitting w/ 1NT300
CRL Brushed Stainless 90° Left-Hand Sidelite Patch Fitting w/ 1NT300
Regular price
$395.48 CAD
Regular price
Sale price
$395.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH42LBS
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Handing
Left Hand
Insert Type
1NT300
Mounting Type
Sidelite
Profile
90°
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) glass only
- Left- and right-handed configurations

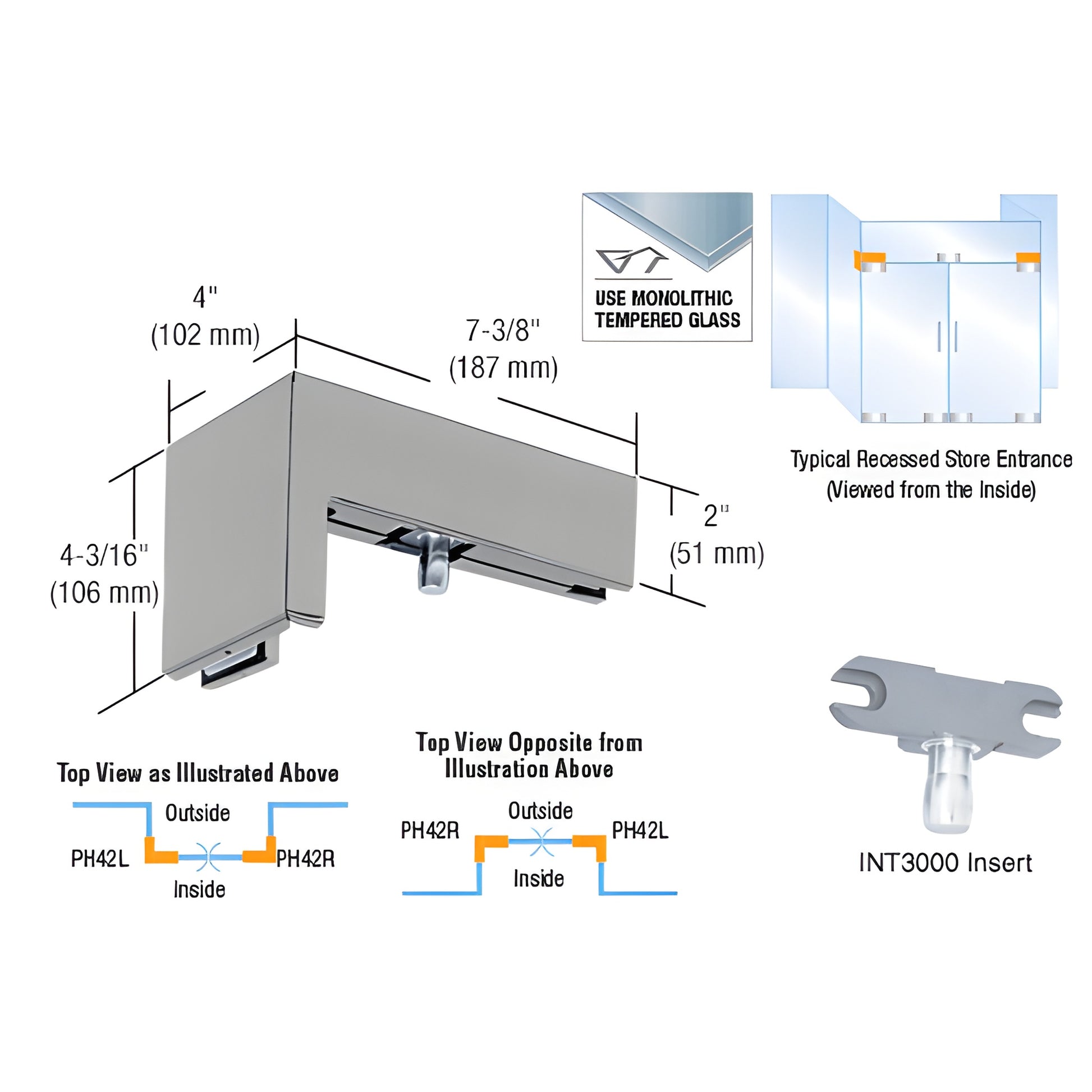

The CRL 90 Degree Left Hand Sidelite Mounted Transom Patch (SKU: PH42LBS) supports a transom from a sidelite glass panel and pairs with an INT300 Insert for mounting a door using CRL's PH21A top door patch fitting. The insert can be positioned on the non-hinged side for a double-swing door. Use the INT306 Transom Patch Door Stop Insert to create a one-way door.
Glass fabrication required:
Three 3/4" (19 mm) diameter holes and one corner notch; door and panels flat polished; no miters required.
Comes with:
Template and instructions.
Product warning:
Note: These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Looking for a reliable sidelite-mounted transom patch for 3/8" glass? Order the PH42LBS or contact CRL for technical support and installation guidance.
