CRL Matte Black 90° Left-Hand Sidelite Glass Door Patch Fitting 1NT300
CRL Matte Black 90° Left-Hand Sidelite Glass Door Patch Fitting 1NT300
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH42LMBL
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
3/8 in. (10 mm)
Handing
Left Hand
Insert Type
1NT300
Mounting Type
Sidelite
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) glass only
- Left- and right-handed compatible

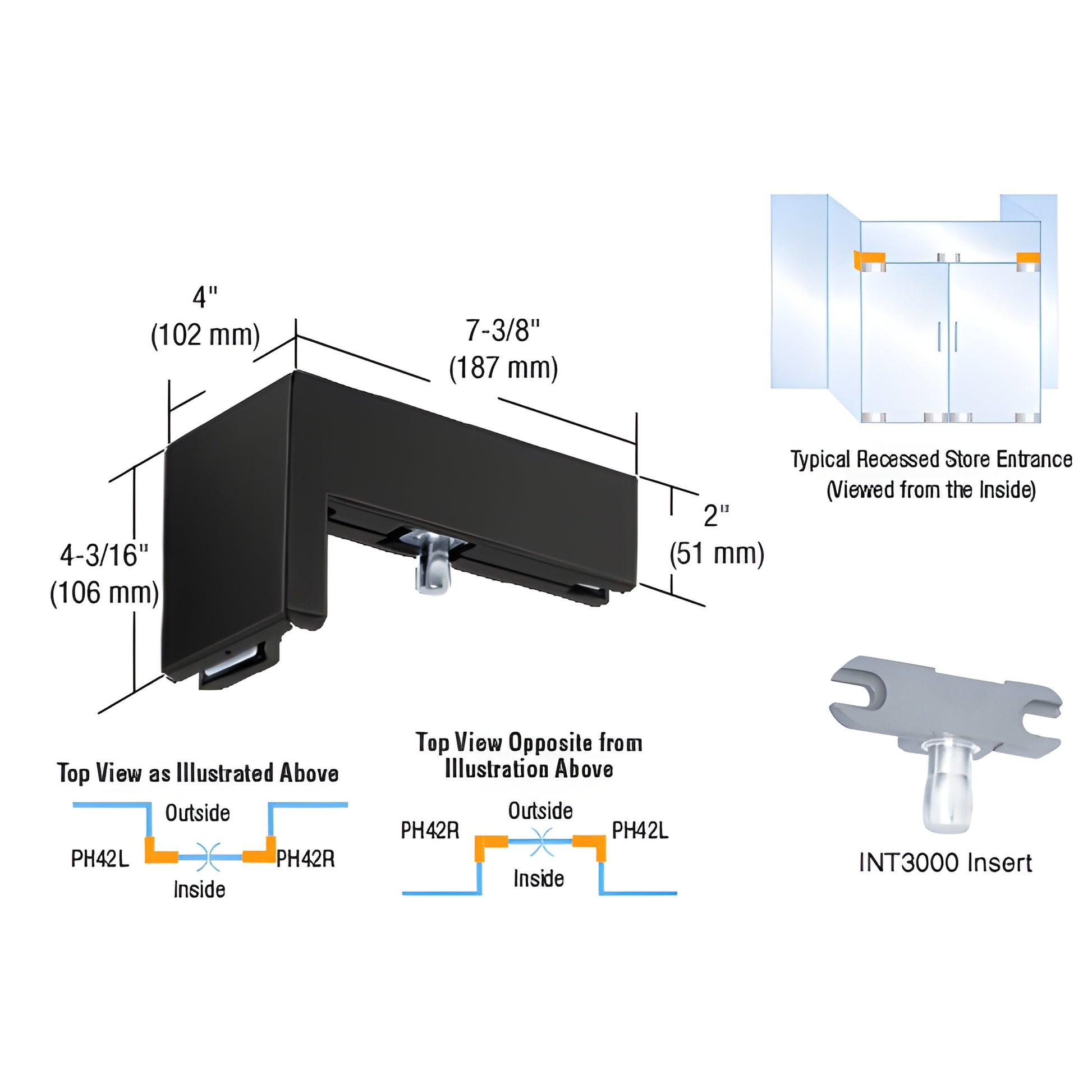

CRL 90 Degree Left Hand Sidelite Mounted Transom Patch (SKU: PH42LMBL) supports a transom from a sidelite glass panel and is designed for frameless glass door systems. Includes an INT300 insert for mounting doors with CRL’s PH21A top door patch fitting. The insert can be relocated to the non-hinged side to allow a double-swing door; use the INT306 transom patch door stop insert to create a one-way door.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) diameter holes and one corner notch; door and panels flat polished; no miters required.
COMES WITH:
Template and instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Ideal for commercial and architectural frameless sidelite transom applications where a durable 90° sidelite-mounted patch is required. Order PH42LMBL today or contact CRL for technical assistance and glass fabrication guidance.
