- Create your own complete barrier system with CRL components
- Designed for bullet resistant 1-1/4" (32 mm) acrylic or polycarbonate barrier systems
- High-quality stainless steel construction for reliable security in high-security applications
- Available in multiple finishes to match installed barriers
CRL Protective Barrier Clamps secure bullet resistant barrier systems in high-security environments. These clamps feature durable stainless steel construction, an attractive low-profile design, and compatibility with 1-1/4" (32 mm) acrylic or polycarbonate glazing. Custom clamps for 3/4" (19 mm) glazing are available by special order. SKU: PB004BS.

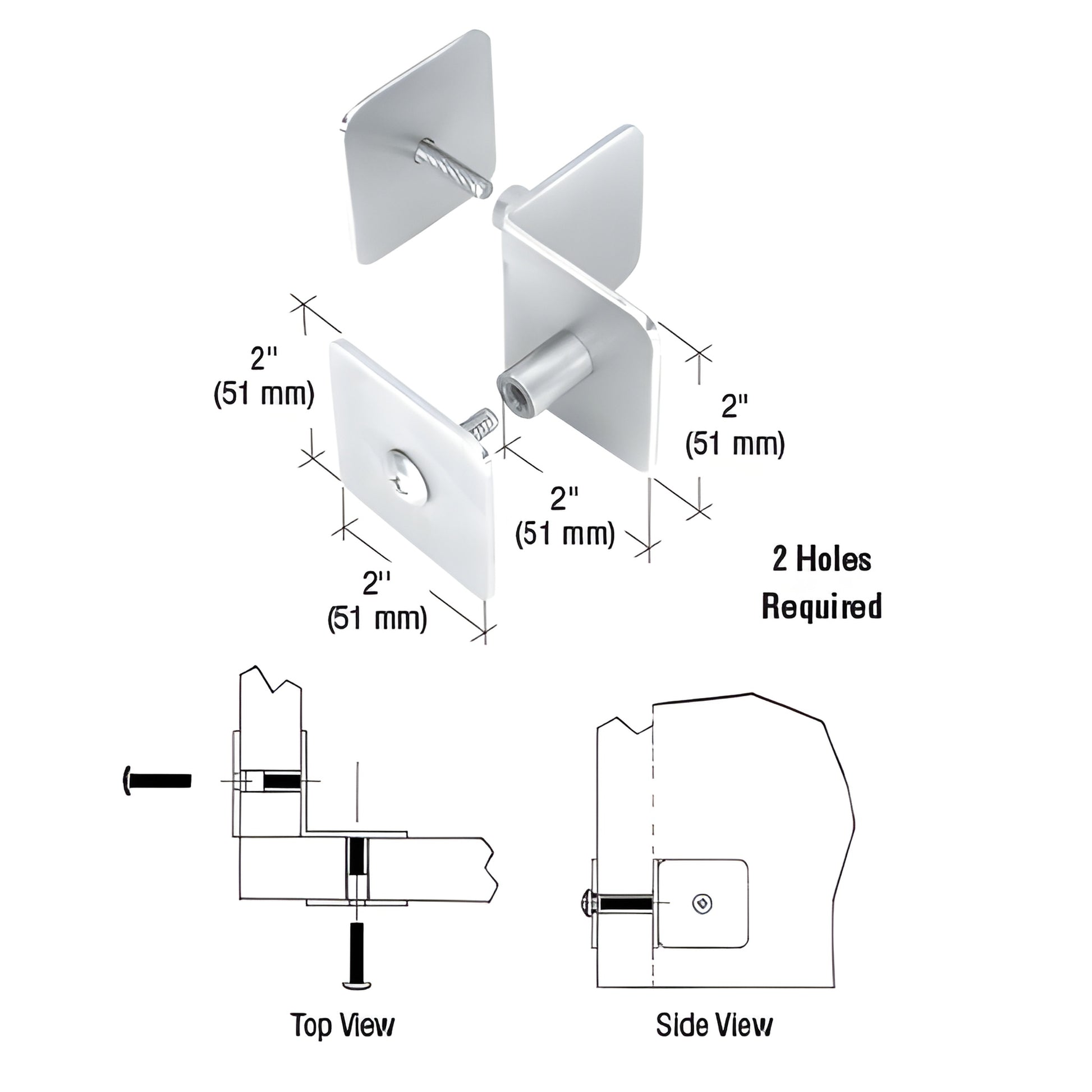

CRL 90º Top or Mid-Mount Inside Clamp — a bullet resistant barrier clamp engineered to hold acrylic or polycarbonate panels securely; two screws fasten the glazing to the clamp for a stable installation.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting screws, instructions
Glass Fabrication: 3/4" (19 mm) hole required
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Order the PB004BS CRL 90º top/mid-mount inside clamp today to complete your bullet resistant acrylic or polycarbonate barrier system.
