CRL Brushed Stainless Bullet-Resistant U-Clamp for Security Barrier

• Create your own complete barrier system with CRL components
• Made to secure bullet resistant 1-1/4" (32 mm) acrylic or polycarbonate barrier systems in high-security applications
• High-quality stainless steel construction for reliable security
• Available in several finishes

CRL Protective Barrier Clamps secure bullet-resistant barrier systems for high-security environments. All clamps are stainless steel for durable, reliable protection and an attractive finished appearance. Custom clamps for 3/4" (19 mm) glazing are available by special order.

U-Clamp (SKU: PB001BS) is designed specifically to secure bullet-resistant acrylic or polycarbonate glazing. Mounts directly to wall, ceiling, or counter: one screw secures the glazing and two screws anchor the clamp to the surface.

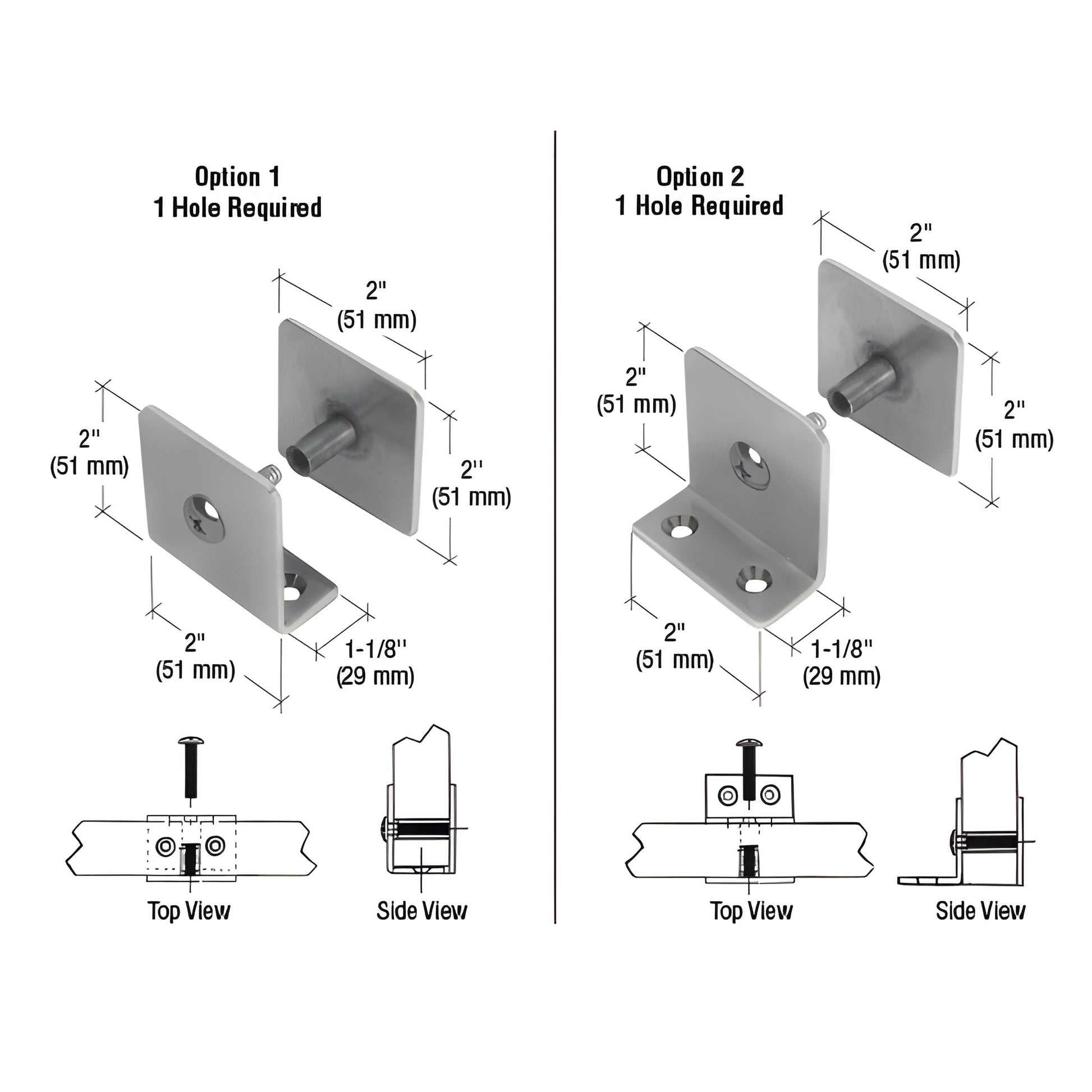

Two mounting options:

• Option 1: Requires a notch in the glazing for the base mounting plate so the glazing sits flush on the surface.
• Option 2: No notch required; glazing will sit flush without a notch.

SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) acrylic or 1-1/4" (32 mm) polycarbonate
Includes: Mounting screws, instructions
Glass Fabrication: 3/4" (19 mm) hole required

Stainless Steel Advisory:

For secure, high-security protective barrier installations using bullet-resistant acrylic or polycarbonate, choose the CRL U-Clamp PB001BS — order now or contact CRL for custom options.
