CRL Brushed Stainless Double Transom Glass Patch w/Fin & 2 1NT300

• Works with both 2-3/4" (70 mm) and 2-9/16" (65 mm) pivot setback door patch fittings
• High-density cast body for durable glass door hardware
• For 3/8" or 1/2" (10 or 12 mm) glass

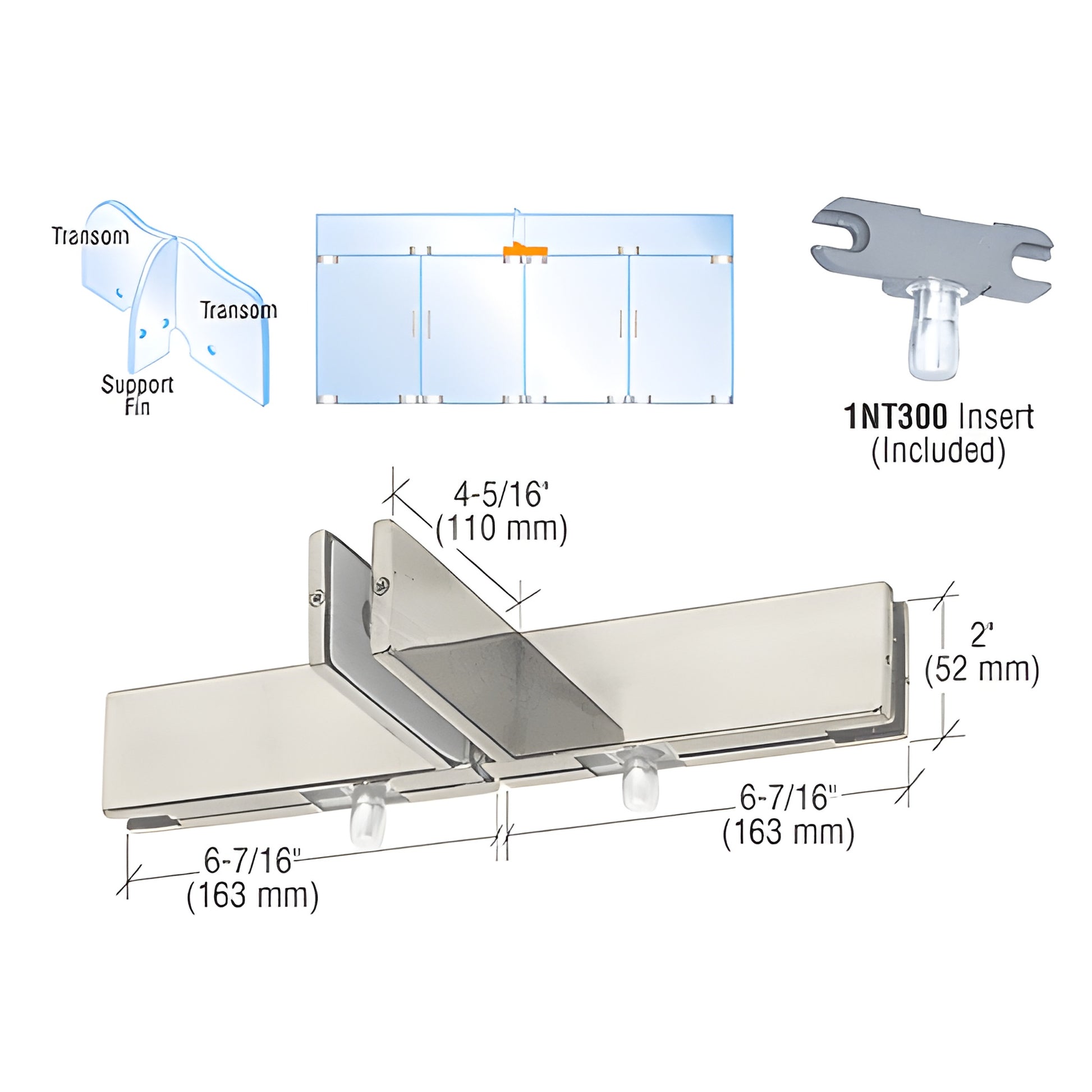

The CRL Double Transom Patch with Support Fin Bracket (SKU: PH51BS) provides two top pivot points for side-by-side double glass doors with either a single-lite or split (double-lite) transom. Includes two INT300 inserts for mounting with CRL PH20A or PH21A top door patch fittings. Use the INT306 Transom Patch Door Stop Insert to configure a one-way door, or install the INT305 Transom Patch Keeper Insert when pairing with an AMR205 lock for top-of-door installations. Support fin glass must be sized per approved design criteria (see GANA or manufacturer's manual) and secured to the ceiling with the ceiling mounted support fin bracket.

GLASS FABRICATION REQUIRED:
For split transom (two lites): four 3/4" (19 mm) diameter holes and three corner notches. For single transom (one lite): four 3/4" (19 mm) diameter holes, one corner notch and one U-shaped cut-out.

COMES WITH:
Template and instructions.

Product Warning:

NOTE: These fittings are not for use with laminated glass.

Stainless Steel Advisory:

Optimize your double transom glass door installation with the PH51BS—order or request a quote today.
