Product Details
- Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
- High Density Cast Body
- For 3/8" or 1/2" (10 or 12 mm) Glass

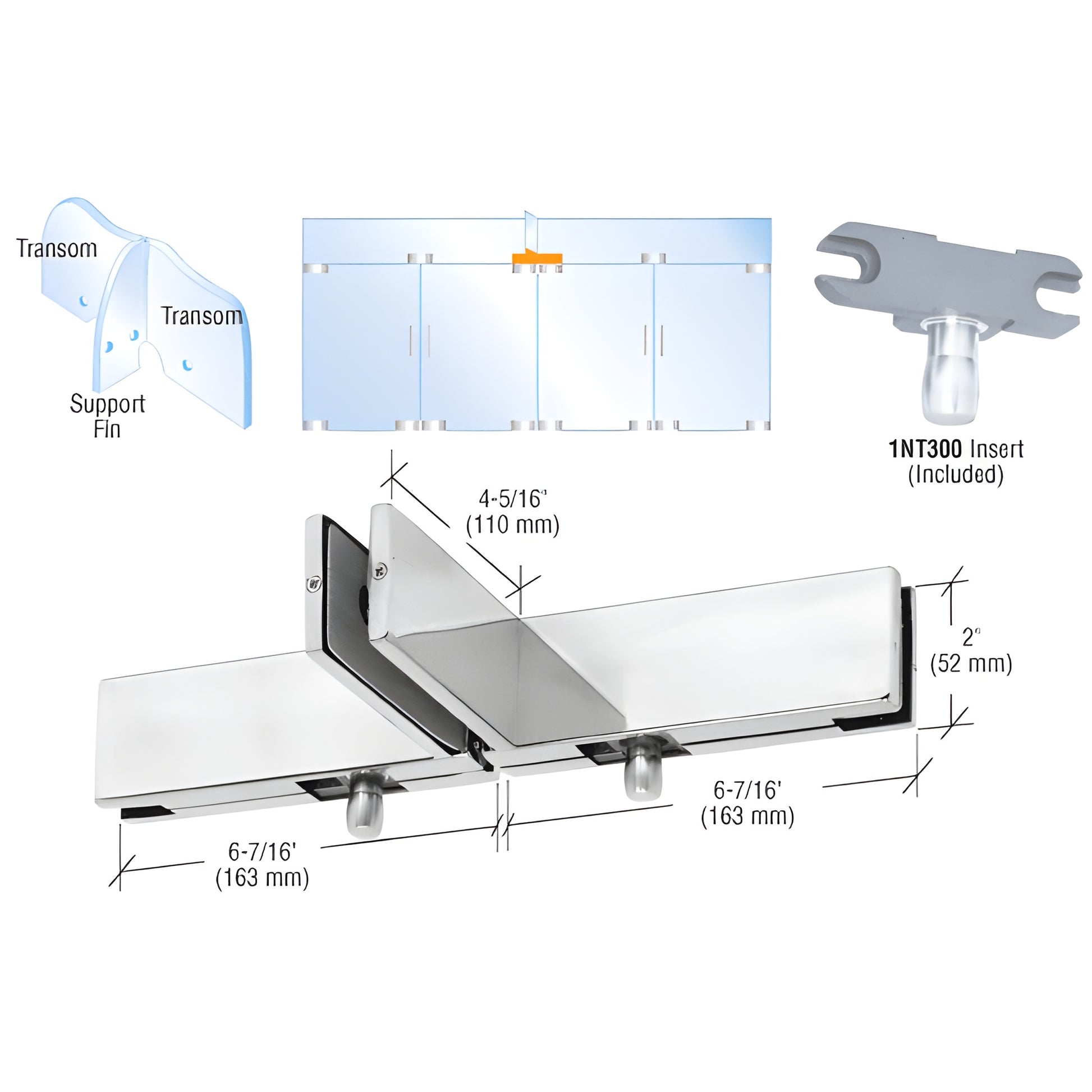

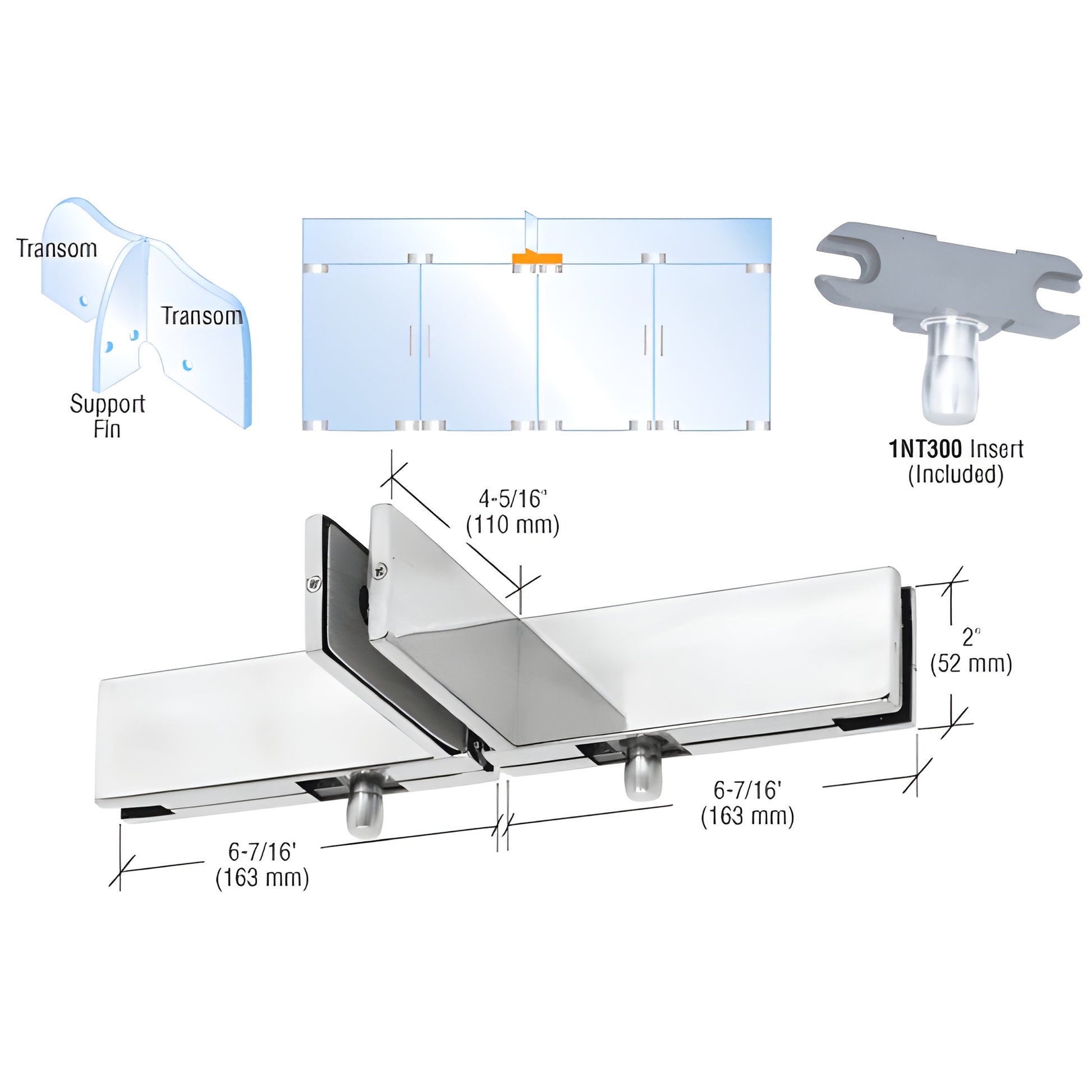

The CRL Double Transom Patch with Support Fin Bracket is designed to provide two top pivoting points for side-by-side double doors with either a single lite or double lite split transom. It comes with two INT300 Inserts for mounting doors with CRL's PH20A or PH21A Top Door Patch Fitting. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.
GLASS FABRICATION REQUIRED:
For Split Transom (Two Lites of Glass)
Four 3/4" (19 mm) Diameter Holes and Three Corner Notches; For Single Transom (One Lite of Glass):
Four 3/4" (19 mm) Diameter Holes,
One Corner Notch and
One U-Shaped Cut-Out
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
