CRL EUR Brushed Stainless Top/Bottom Patch Fitting - No Insert

• For use with EUR Series top and bottom inserts (interchangeable)
• High-density cast body with integrated lock mechanism
• Includes gaskets for 3/8" or 1/2" glass (10 or 12 mm)

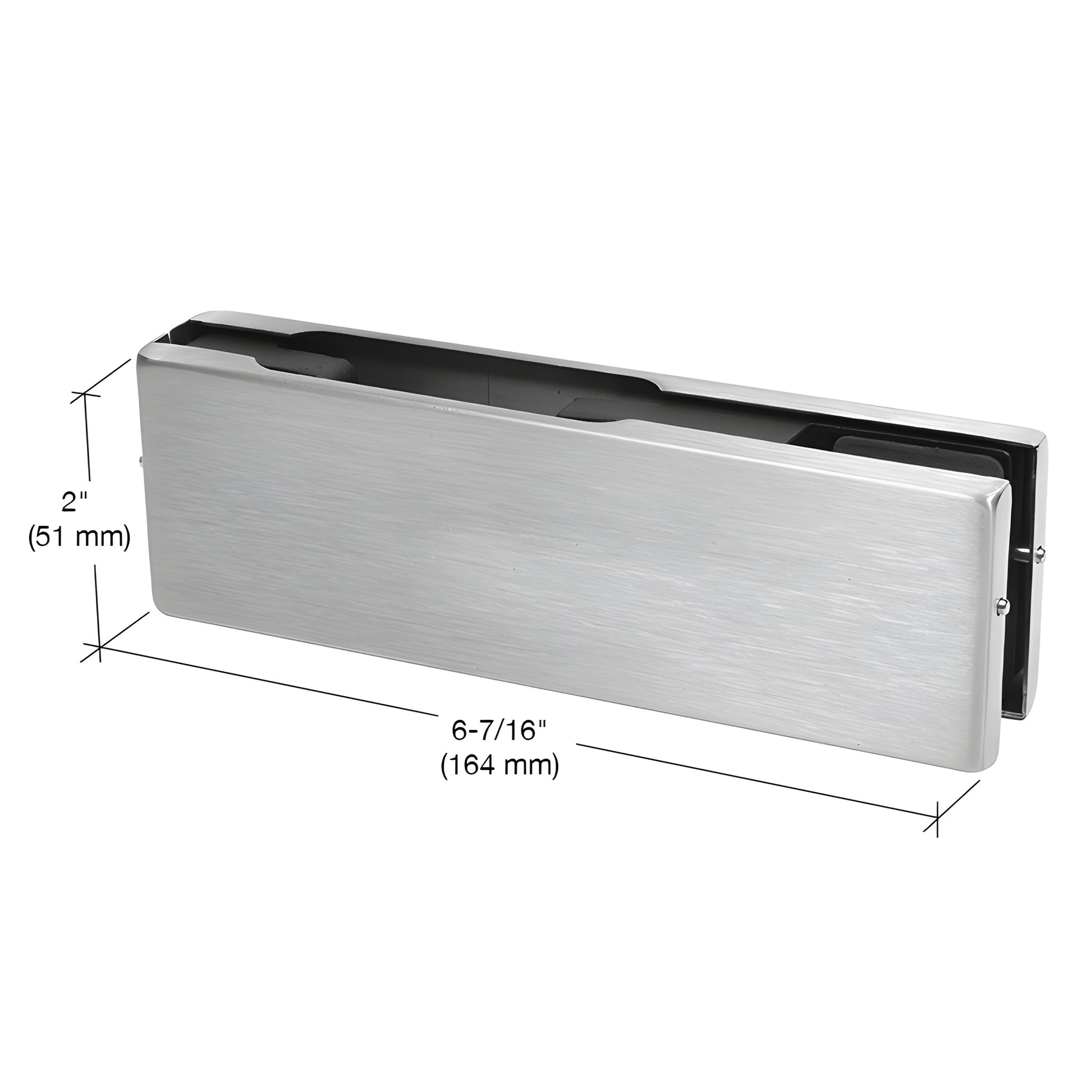

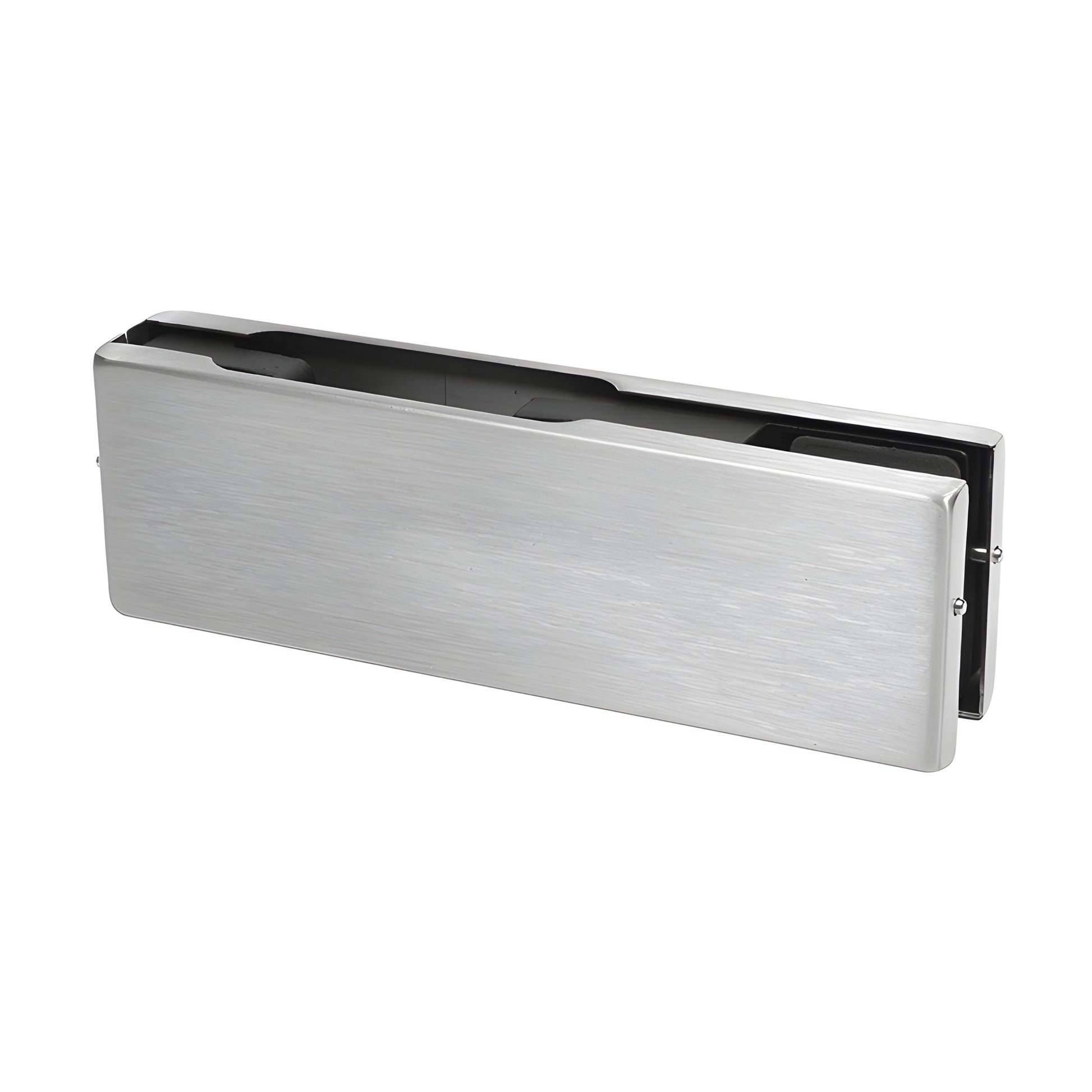

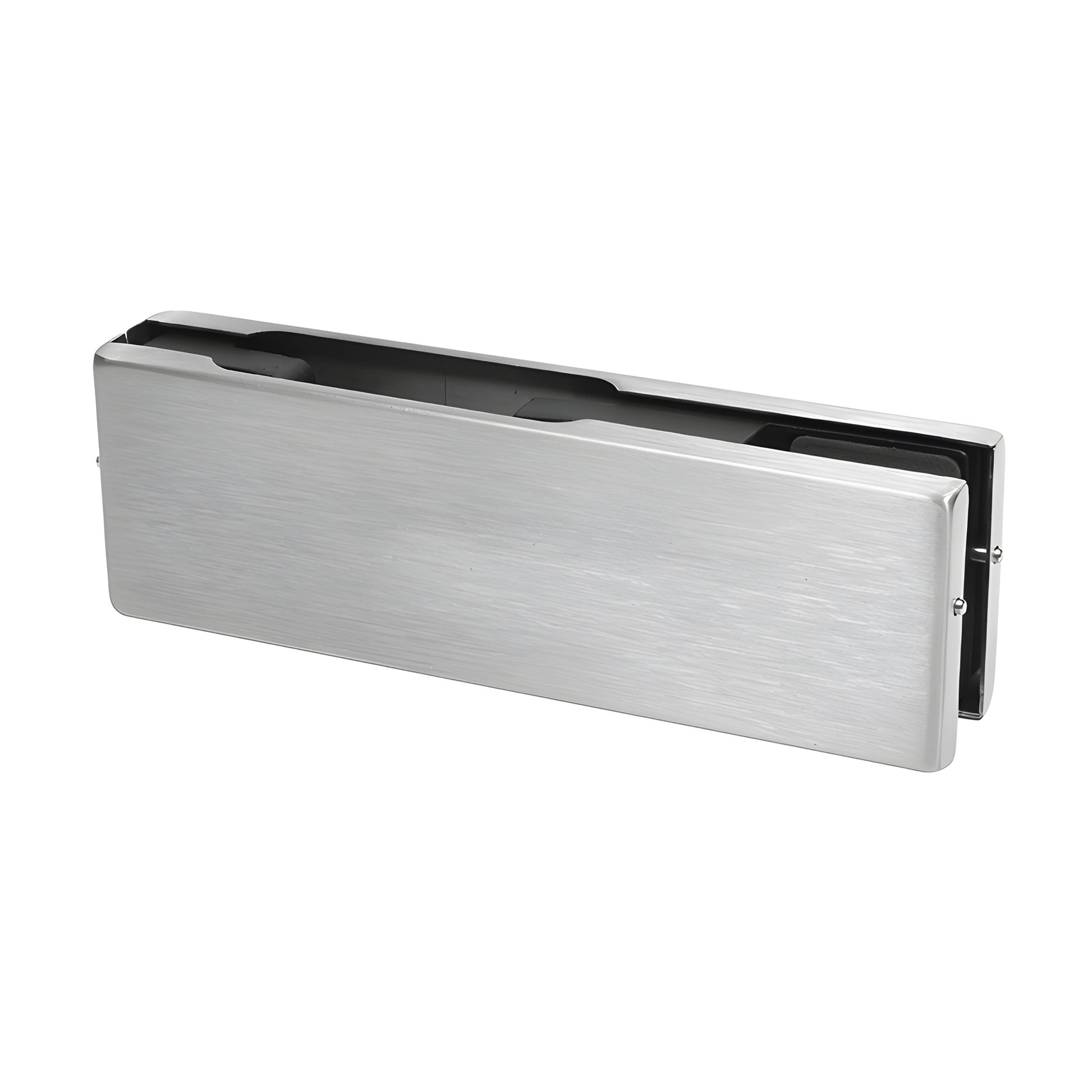

CRL EUR Series Patch Fitting (Less Fitting) — SKU: EUR201BS

This patch fitting lets you use the same unit for either the top or bottom of a glass door by installing the appropriate EUR Series insert. Designed for frameless glass doors and commercial glass door hardware applications.

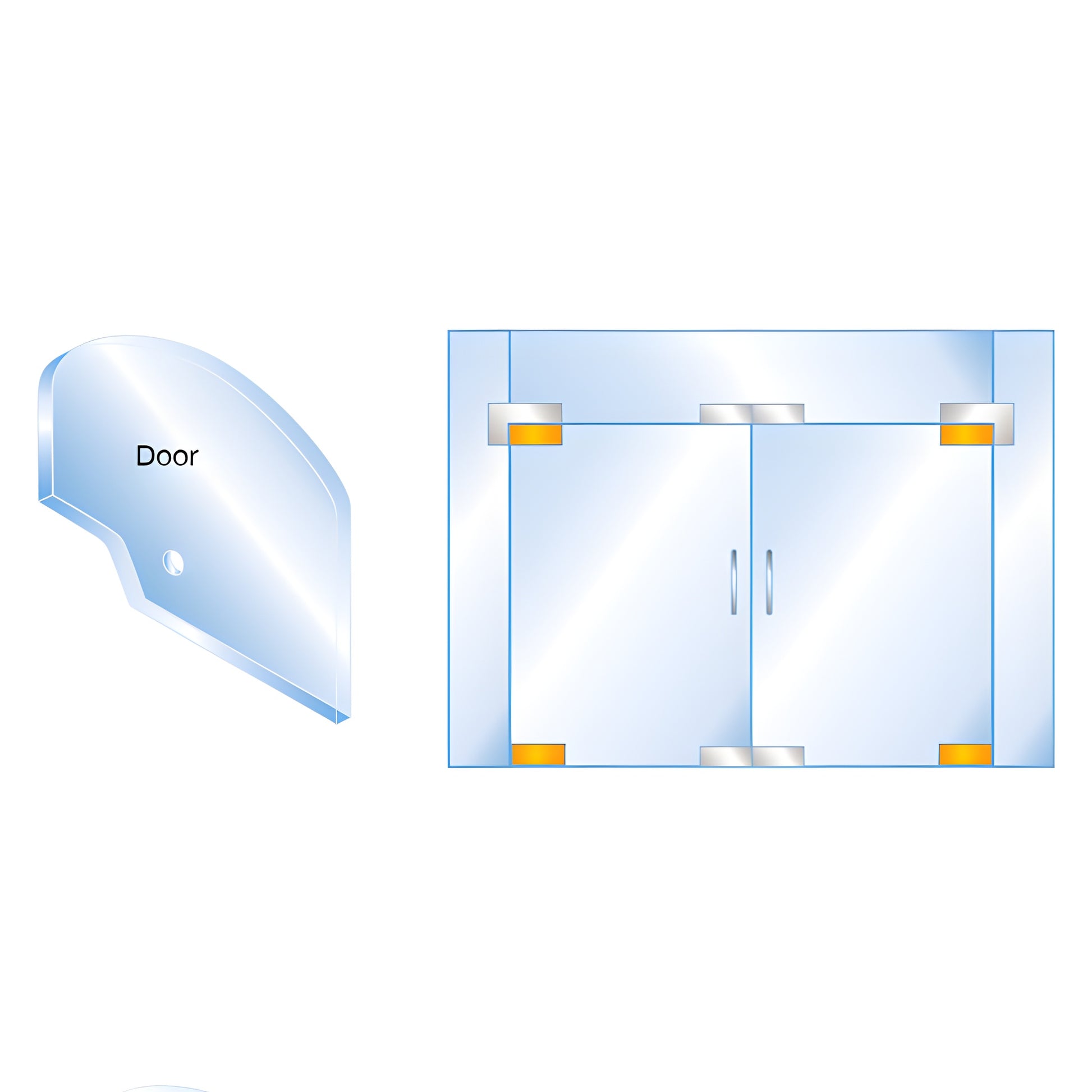

Glass fabrication required:

• One corner notch

Includes:

• High-density cast body
• Cover plates (choose finish)
• Gaskets for 3/8" or 1/2" (10 or 12 mm)
• Template and installation instructions

Product warning:

Not for use with laminated glass.

Use guidelines (for 1/2" glass doors):

• Maximum height: 102" (2.59 m)
• Maximum weight: 176 lbs (80 kg)
• Maximum width: 42" (1.09 m)

If any limit is exceeded, use full door rails.

Stainless Steel Advisory:

Key SEO terms: EUR201BS patch fitting, EUR Series patch fitting for glass doors, patch fitting for 3/8 or 1/2 inch glass, top bottom interchangeable patch fitting, commercial frameless glass door hardware.

Order SKU EUR201BS or contact CRL Customer Service for technical help and exact shipping weights.
