Product Details
- For Use with EUR Series Top and Bottom Inserts
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" Glass
- One Corner Notch Includes:
- High Density Cast Body
- Cover Plates (finish of your choice)
- Gaskets for 3/8" or 1/2" (10 or 12 mm)
- Template and Instructions Product Warning: These fittings are not for use with Laminated Glass. The following guidelines are to be used when making a 1/2" glass door using this hardware: Maximum Height: 102" (2.59 m) Maximum Height: 176 Lbs. (80 kg) Maximum Width: 42" (1.09 m) If the door exceeds any of these limitations, full door rails should be used. Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

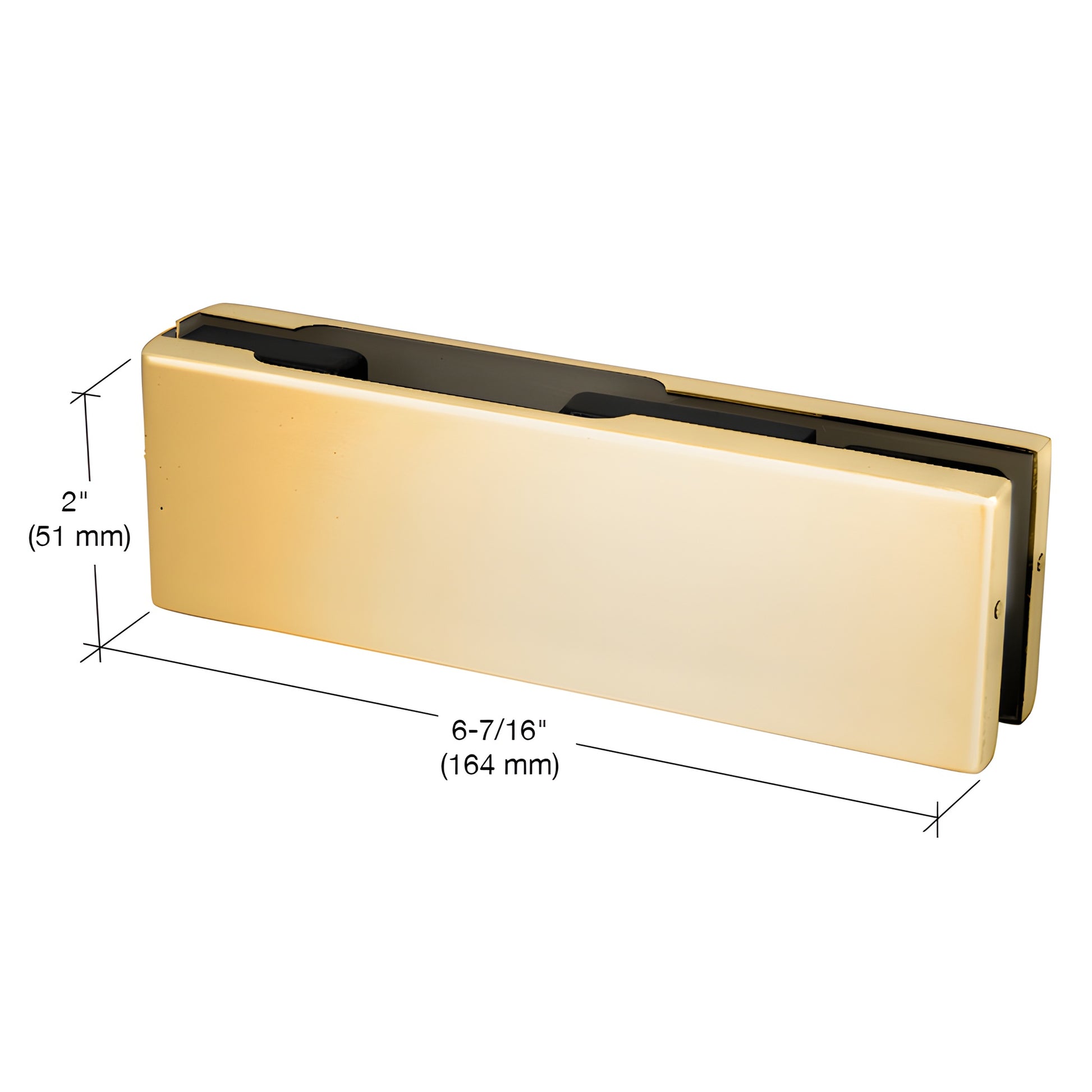

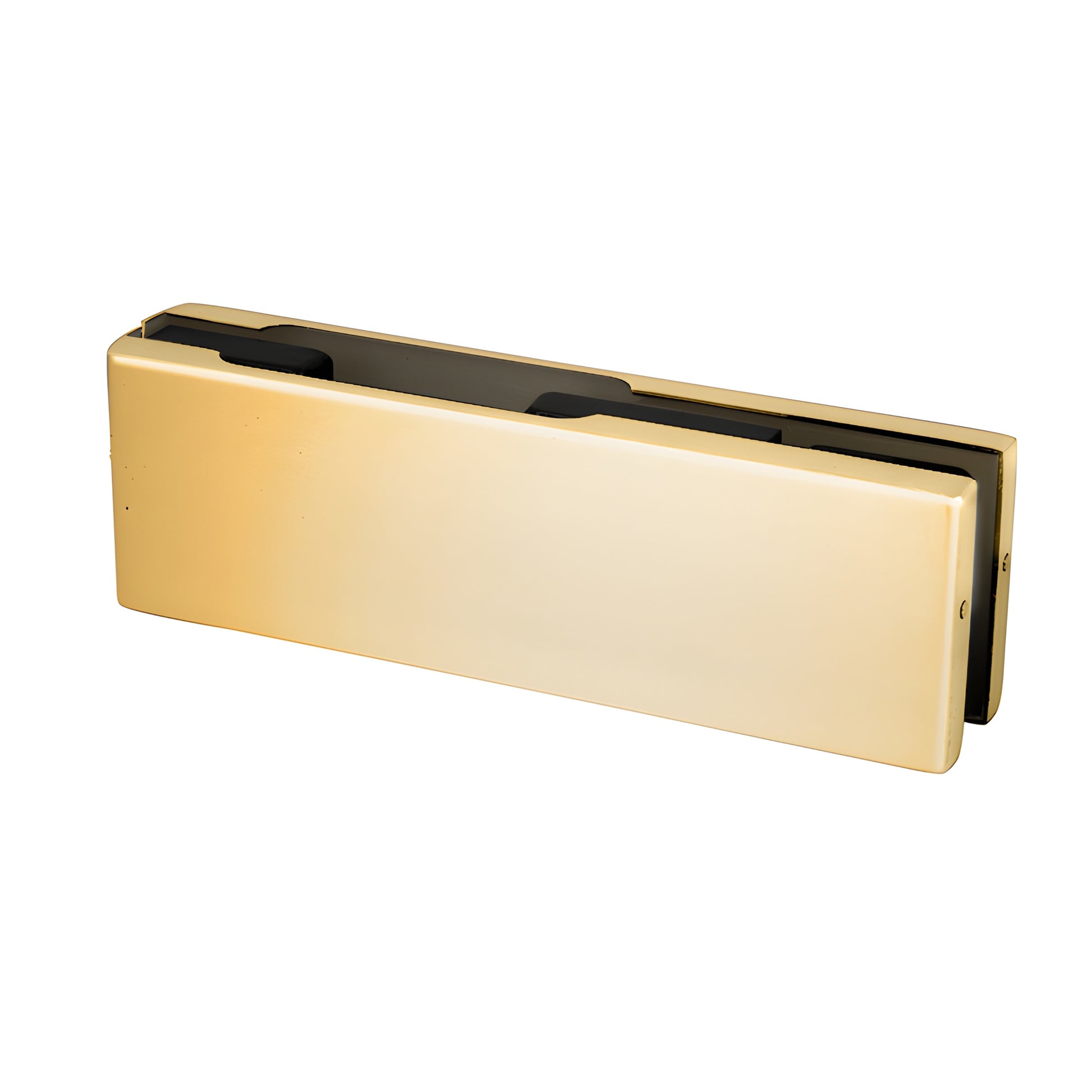

This CRL EUR Series Patch Fitting (Less Fitting) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.

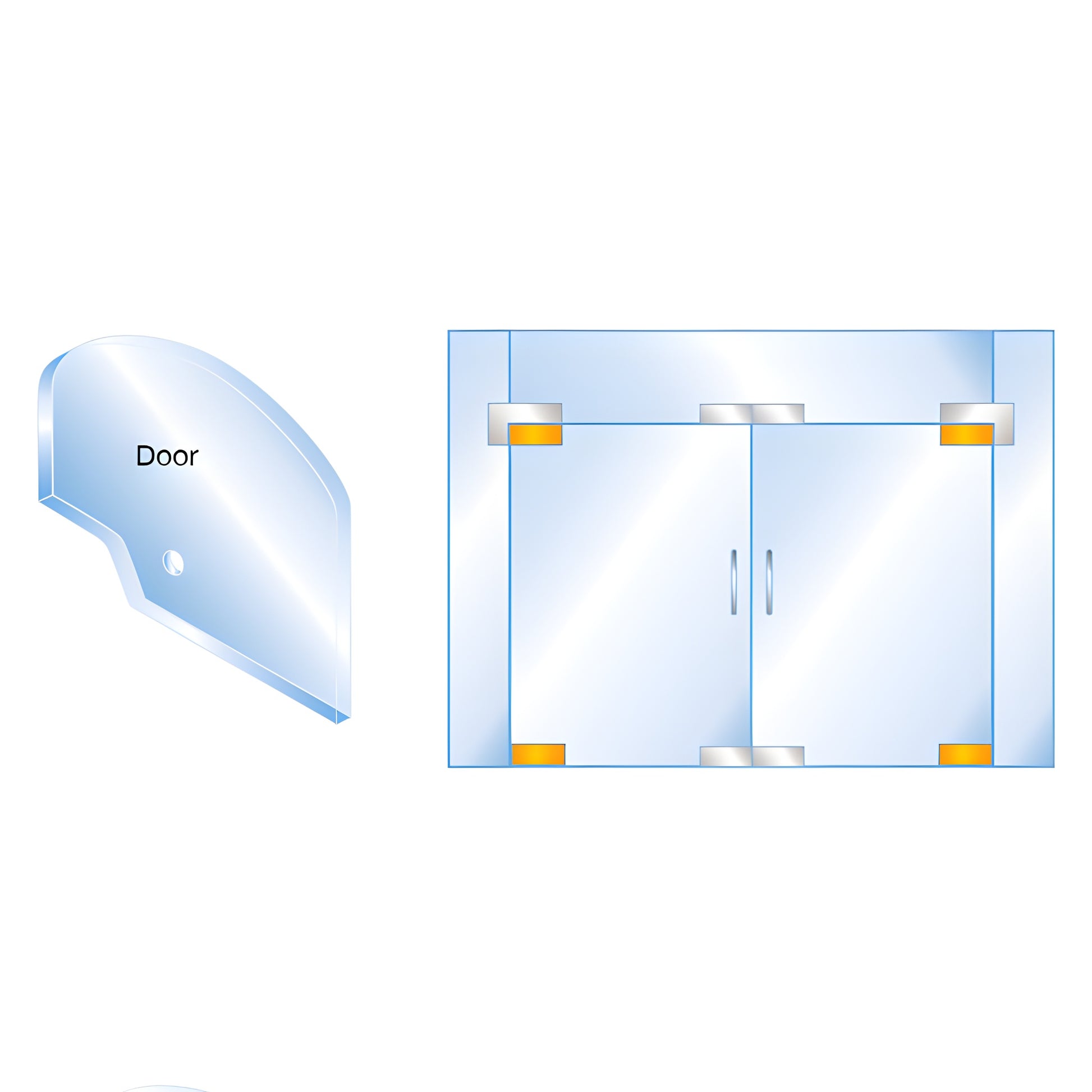

Glass Fabrication Required:
One Corner Notch
Includes:
High Density Cast Body
Cover Plates (finish of your choice)
Gaskets for 3/8" or 1/2" (10 or 12 mm)
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
