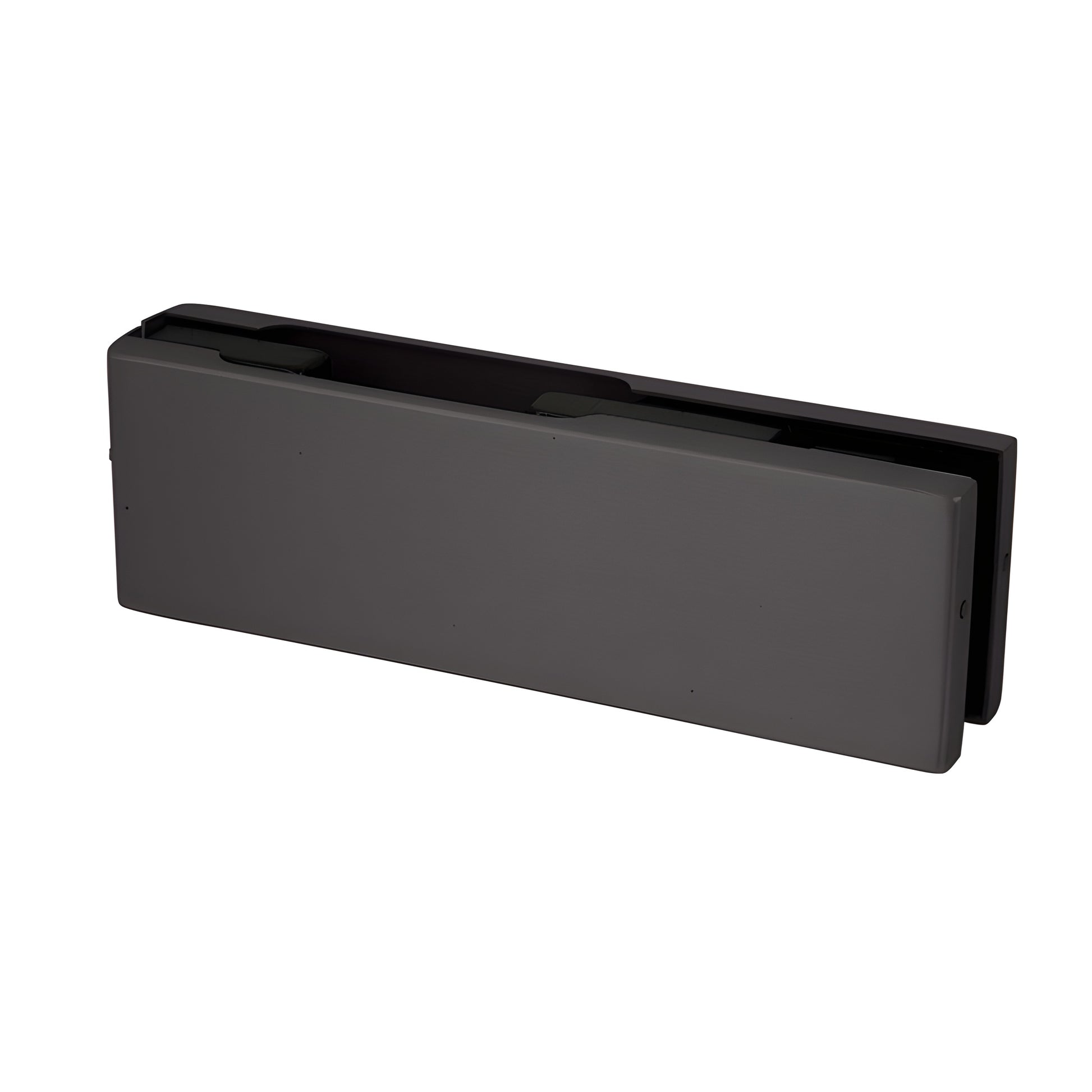

CRL Black Bronze EUR Series Top or Bottom Patch Fitting - Less Insert
Item # EUR201DU
$65.54
CAD
Finish (6)
-
Aluminum -
Polished Brass -
Brushed Stainless Steel -
Black Bronze Anodized -
Matte Black -
Polished Stainless Steel
Overview
| SKU | EUR201DU |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Black Bronze Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |

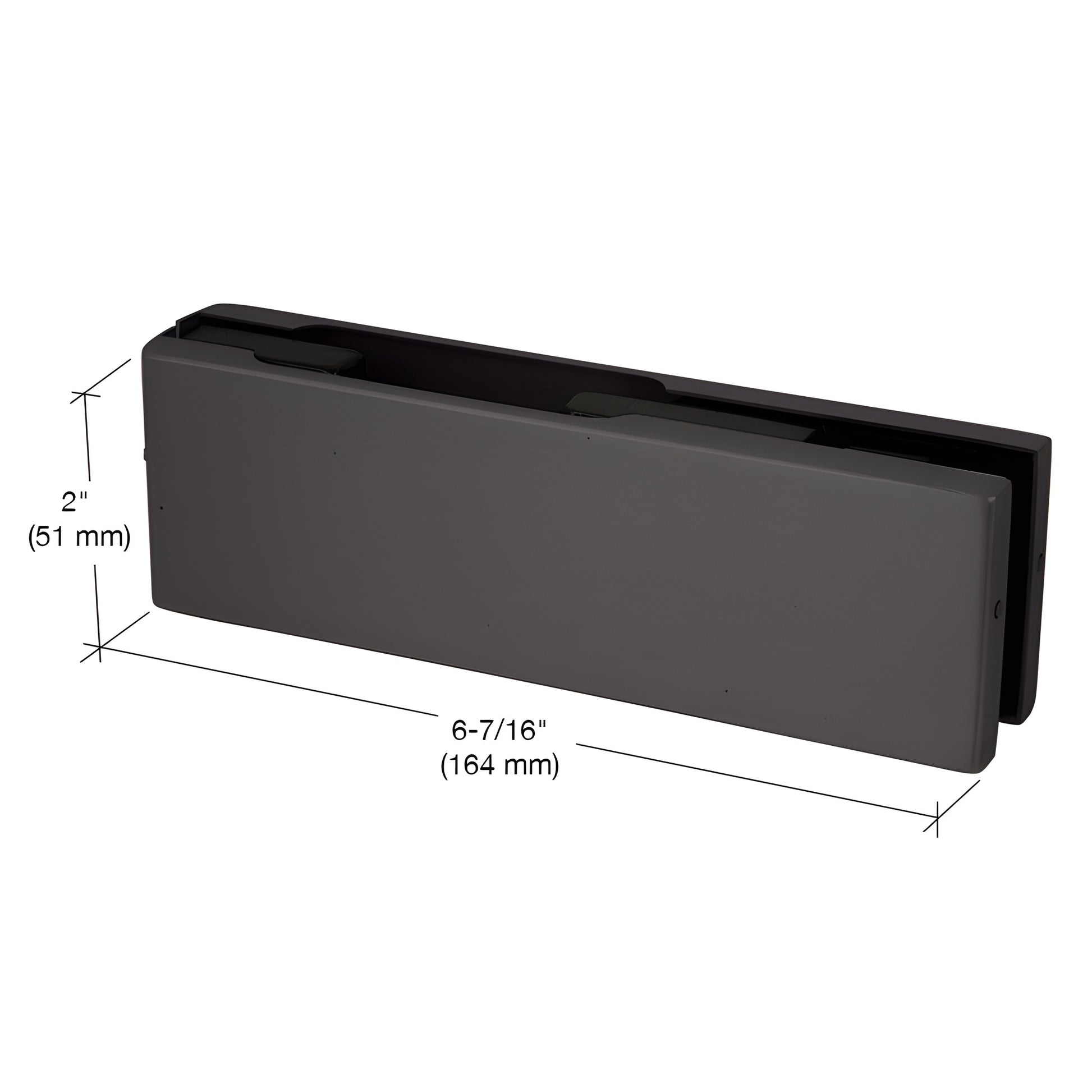

| Height | 2 in. (51 mm) |
| Series | European |
| Type | Top or Bottom |
| With Insert | No |
Description
- For Use with EUR Series Top and Bottom Inserts
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" Glass
This CRL EUR Series Patch Fitting (Less Fitting) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.

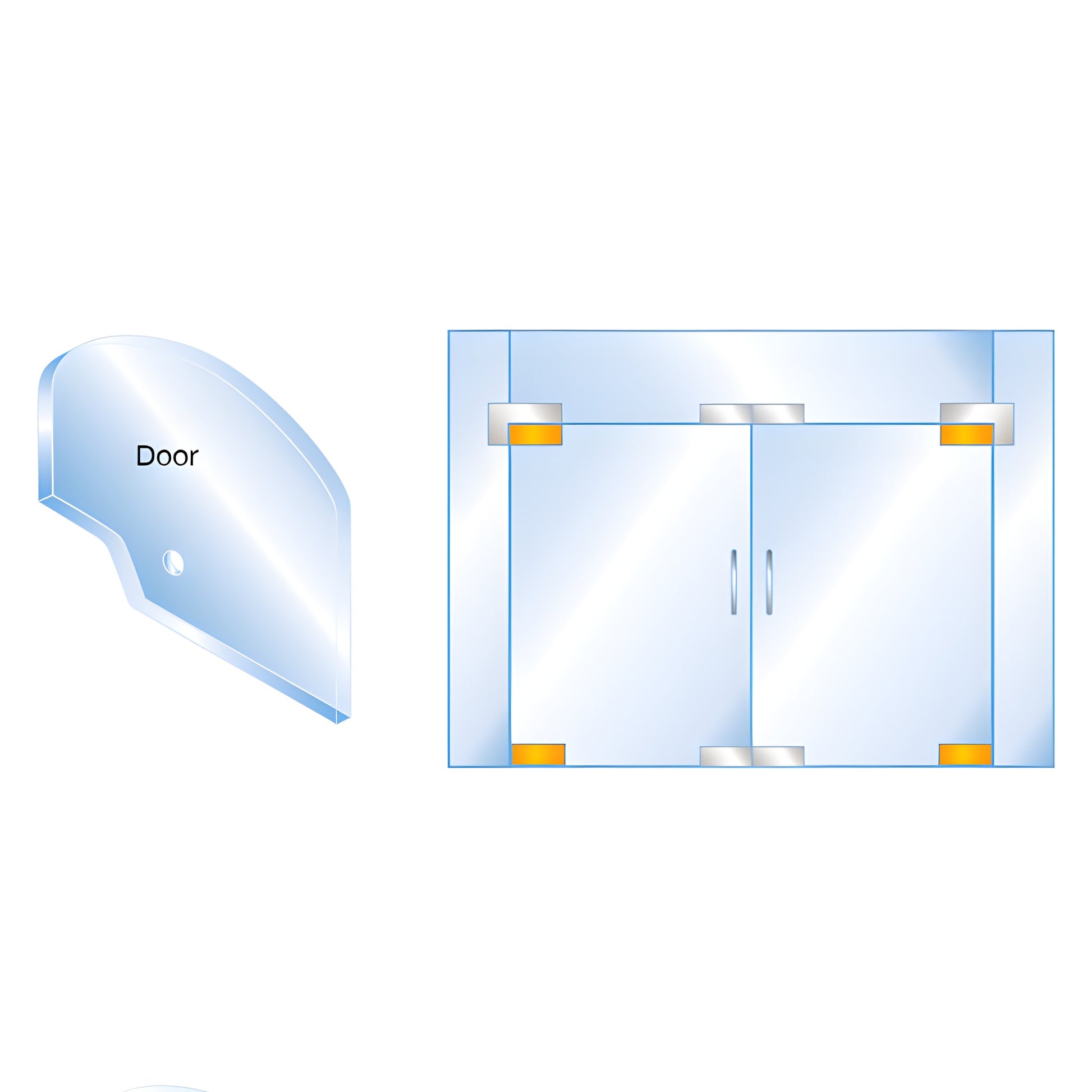

Glass Fabrication Required:
Includes:
Product Warning:
These fittings are not for use with Laminated Glass.
The following guidelines are to be used when making a 1/2" glass door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
