Shipping weights are approximate. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual color may vary by monitor.
CRL
CRL Brushed Stainless Steel Fixed Glass Clamp for 1-inch Tubing
CRL Brushed Stainless Steel Fixed Glass Clamp for 1-inch Tubing
Regular price
$29.17 CAD
Regular price
Sale price
$29.17 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SA50BS
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Fitting Type
Fixed
Glazing Thickness
1/4 in. To 3/8 in. (6 mm To 10 mm)
Material
Stainless Steel
Overview

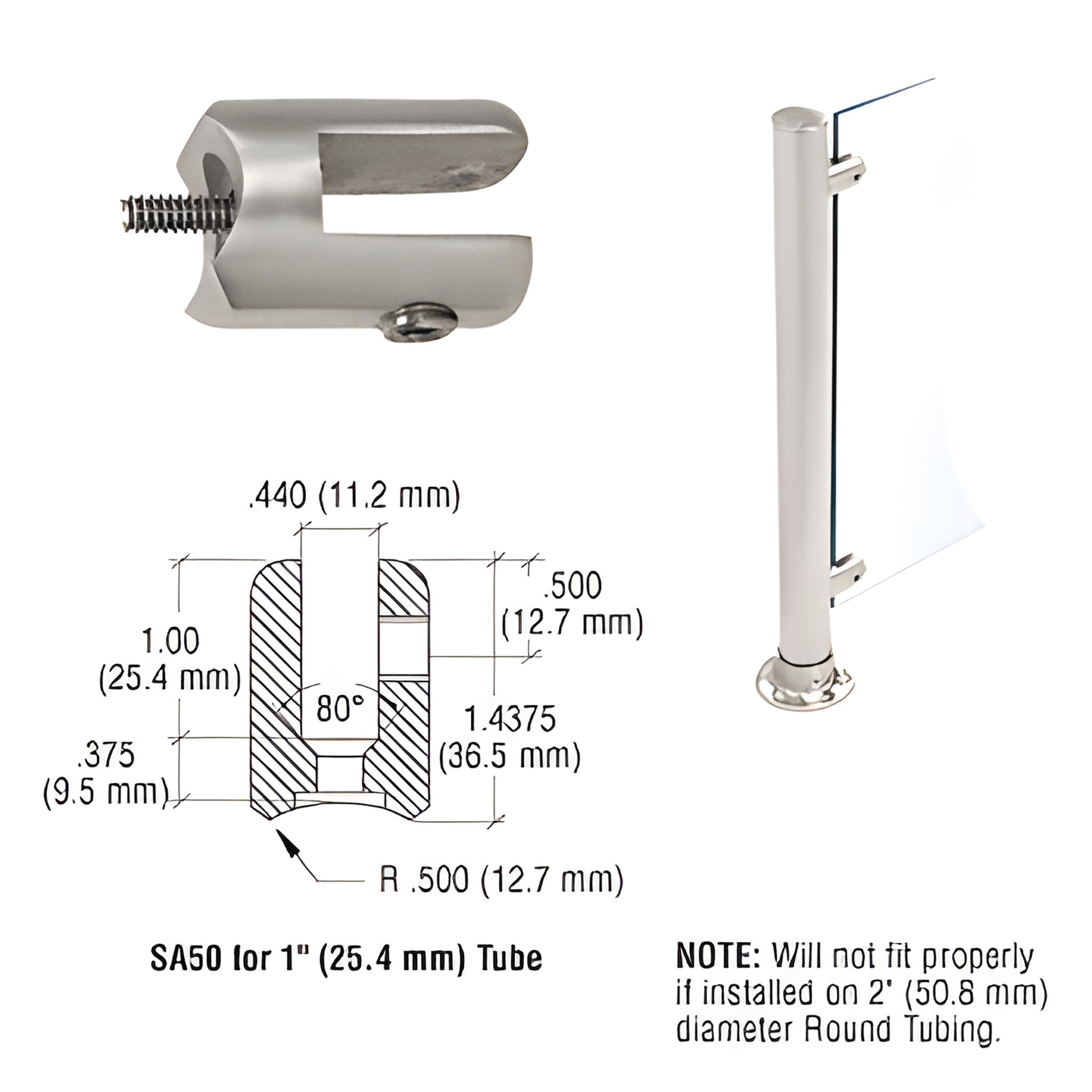

- Sleek, modern fixed glass fitting for monolithic tempered glass
- Fits 1" (25.4 mm) and 1-1/2" (38.1 mm) diameter round tubing
- Secures 1/4" to 3/8" (6 to 10 mm) thick glass with a clear vinyl gasket and nylon‑tipped set screw
- Includes flat head screw (10‑24 for 1" tubing; 1/4"-20 for 1‑1/2" tubing); matching rivet‑nuts available
CRL Fixed Glass Fittings (SKU: SA50BS) provide an attractive, low‑profile method to mount tempered glass panels for partitions, sneeze guards, and commercial railings. Designed for monolithic tempered glass 1/4" to 3/8" (6–10 mm) thick, the fitting clamps the glass with a clear vinyl gasket for protection and a nylon‑tipped set screw for secure, non‑marring installation. Compatible with 1" or 1‑1/2" (25.4 or 38.1 mm) round tubing; hardware included as noted. Matching rivet‑nuts sold separately.
NOTE: Not compatible with 2" (51 mm) diameter round tubing.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order SA50BS today to securely mount tempered glass panels—contact us for volume pricing or installation guidance.
Specifications
Cleaning & Maintenance
